Engine Control Module
>>
C2 (Red)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
C2 (Red)

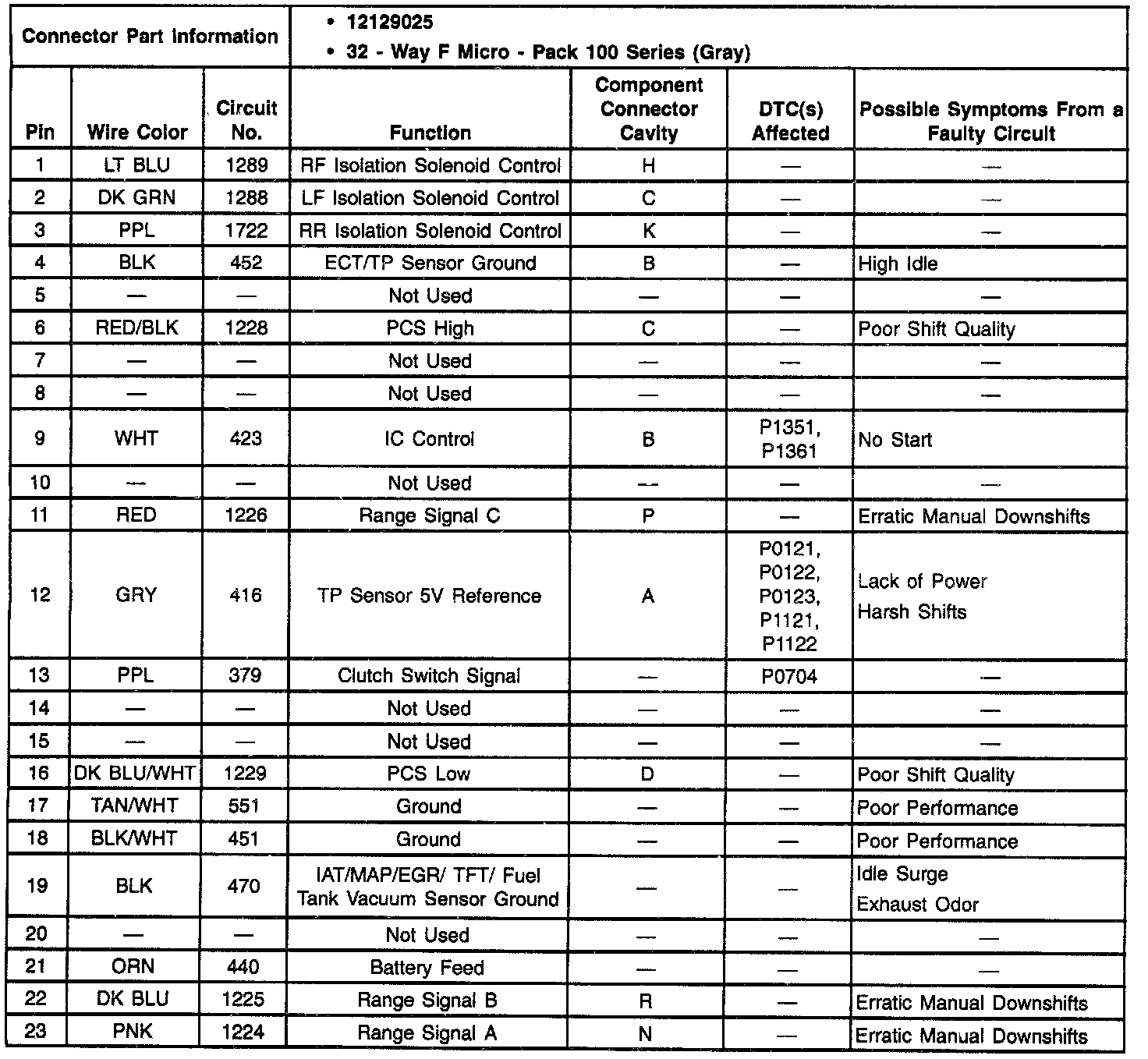

Pins 1 - 23:
Pins 24 - 32:
