Pinout Description

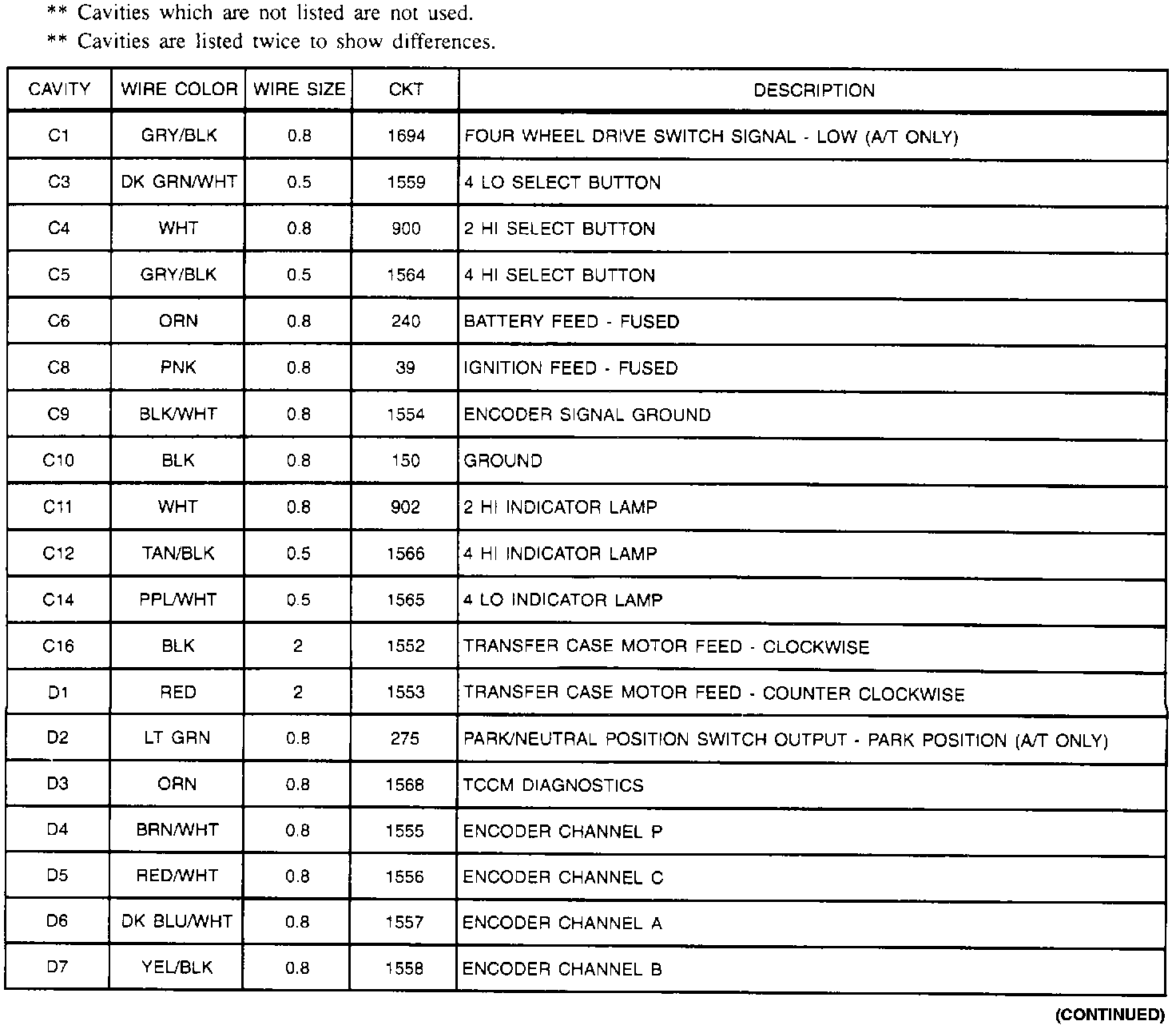

Transfer Case Shift Control Module (Part 1 Of 2):
Transfer Case Shift Control Module (Part 2 Of 2):
