Pinout Description

EBCM, EBTCM (With NW9): C1:

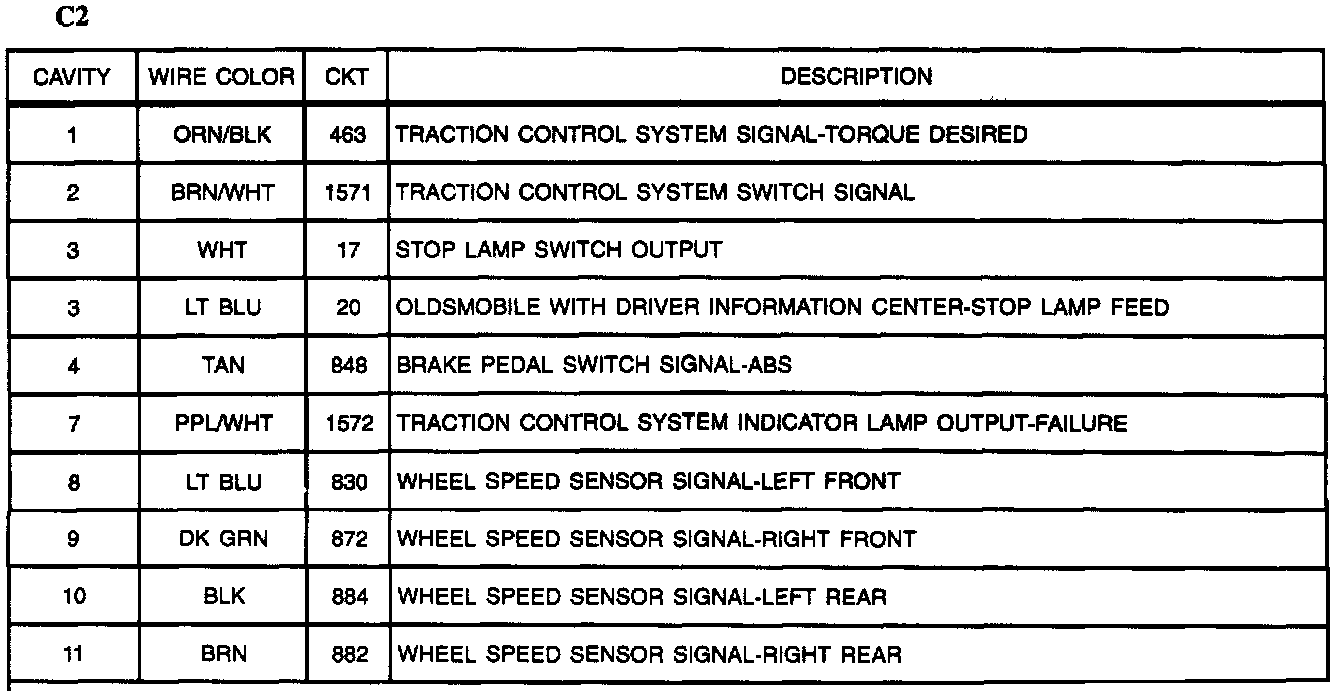

EBCM, EBTCM (With NW9): C2 (Part 1 Of 2):



EBCM, EBTCM (With NW9): C2 (Part 2 Of 2):
