Keyless Entry Module

Remote Function Actuator (RFA) Module:

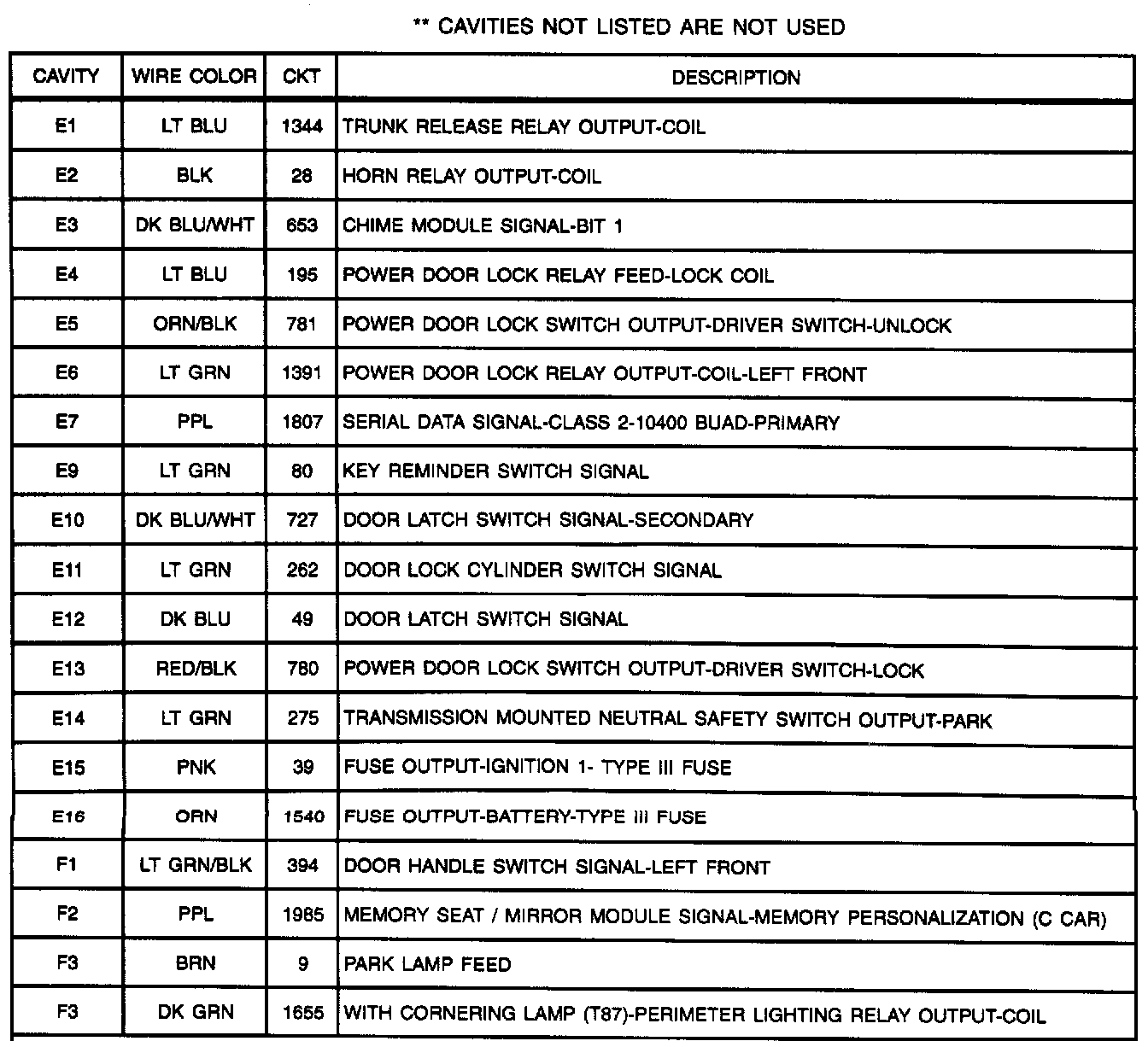

Remote Function Actuator (RFA) Module (Part 1 Of 2):



Remote Function Actuator (RFA) Module (Part 2 Of 2):
