Pinout Description

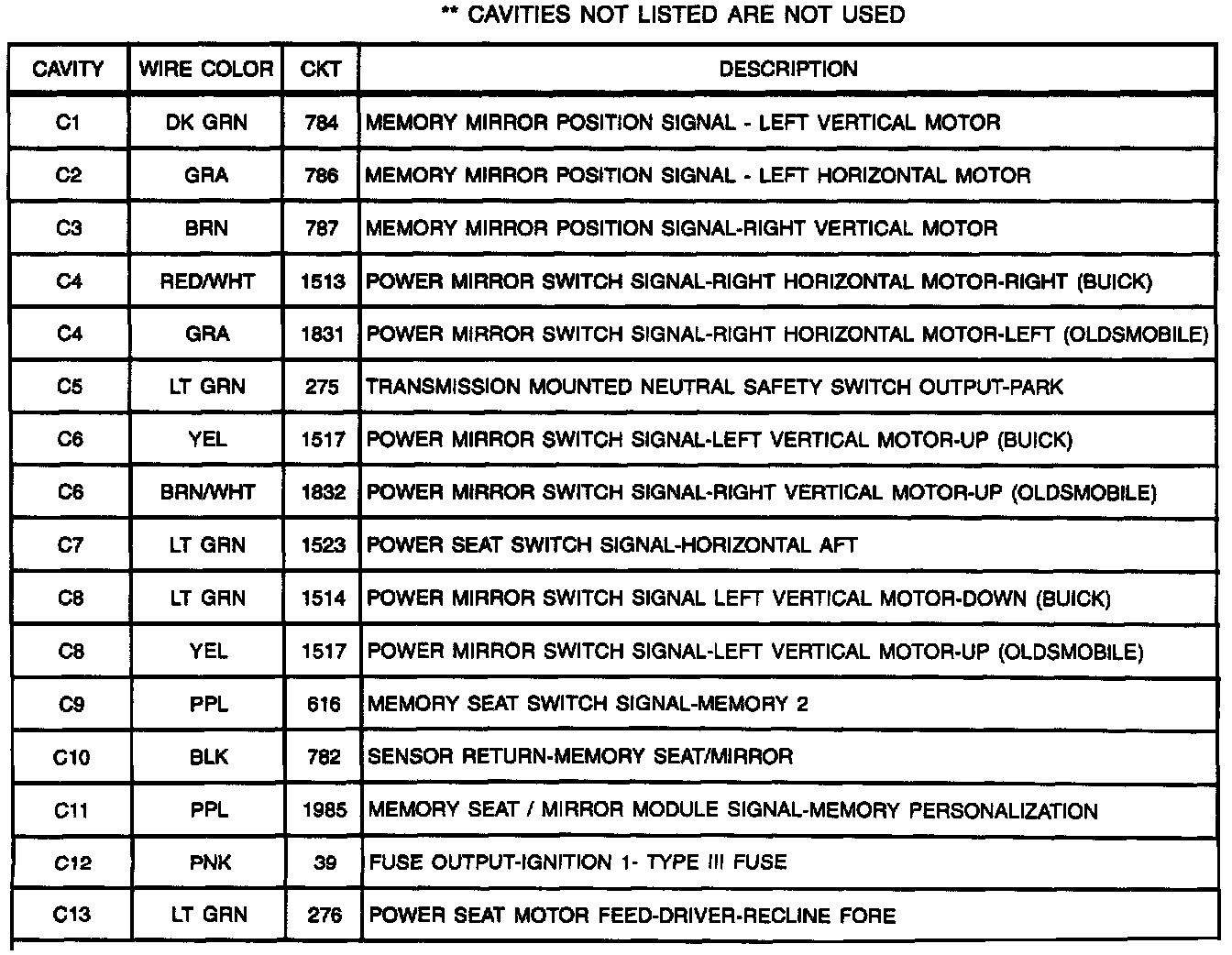

Memory Seat/Mirror Control Module (Part 1 Of 2):

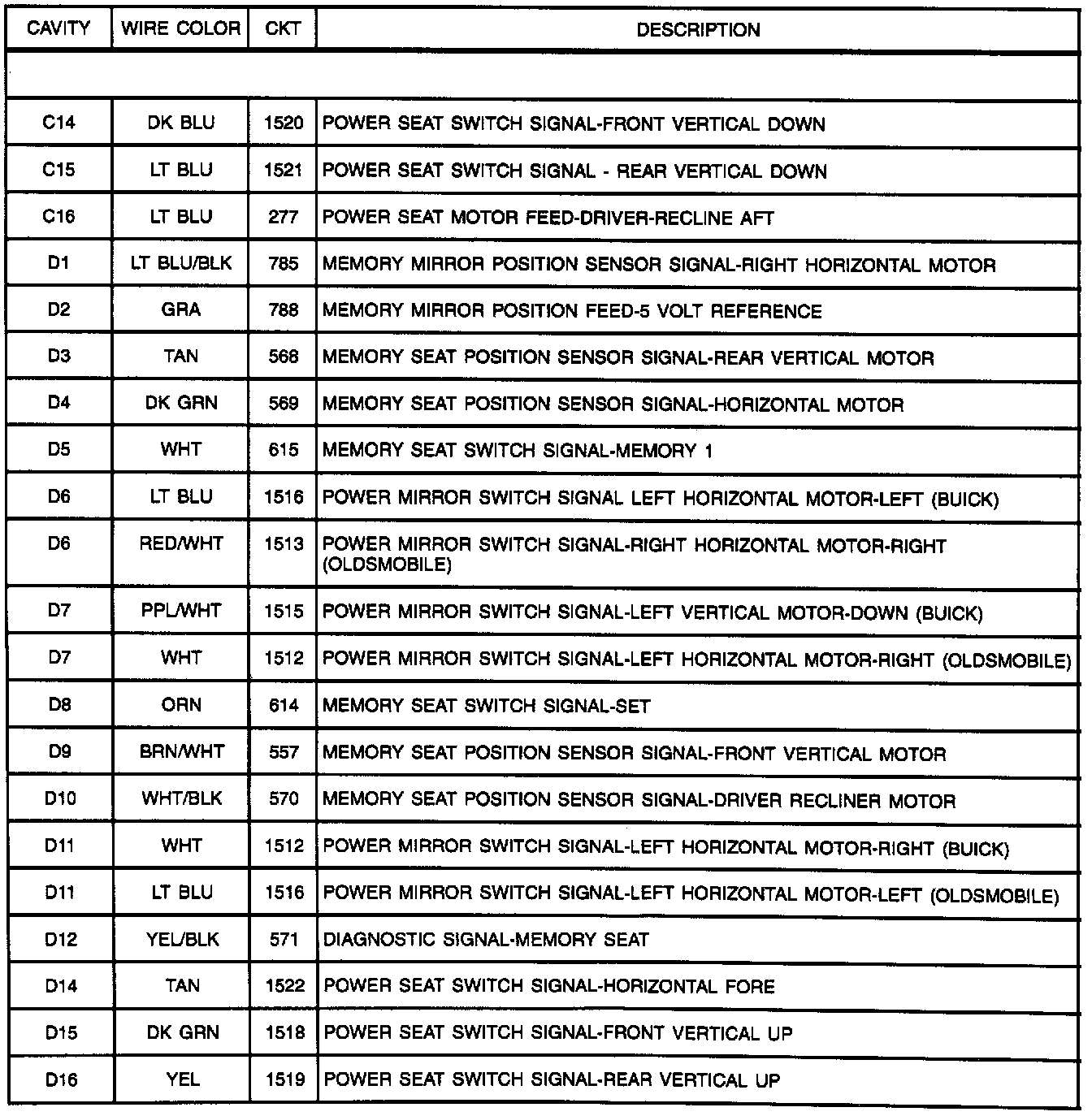

Memory Seat/Mirror Control Module (Part 2 Of 2):
