I/P Fuse Block

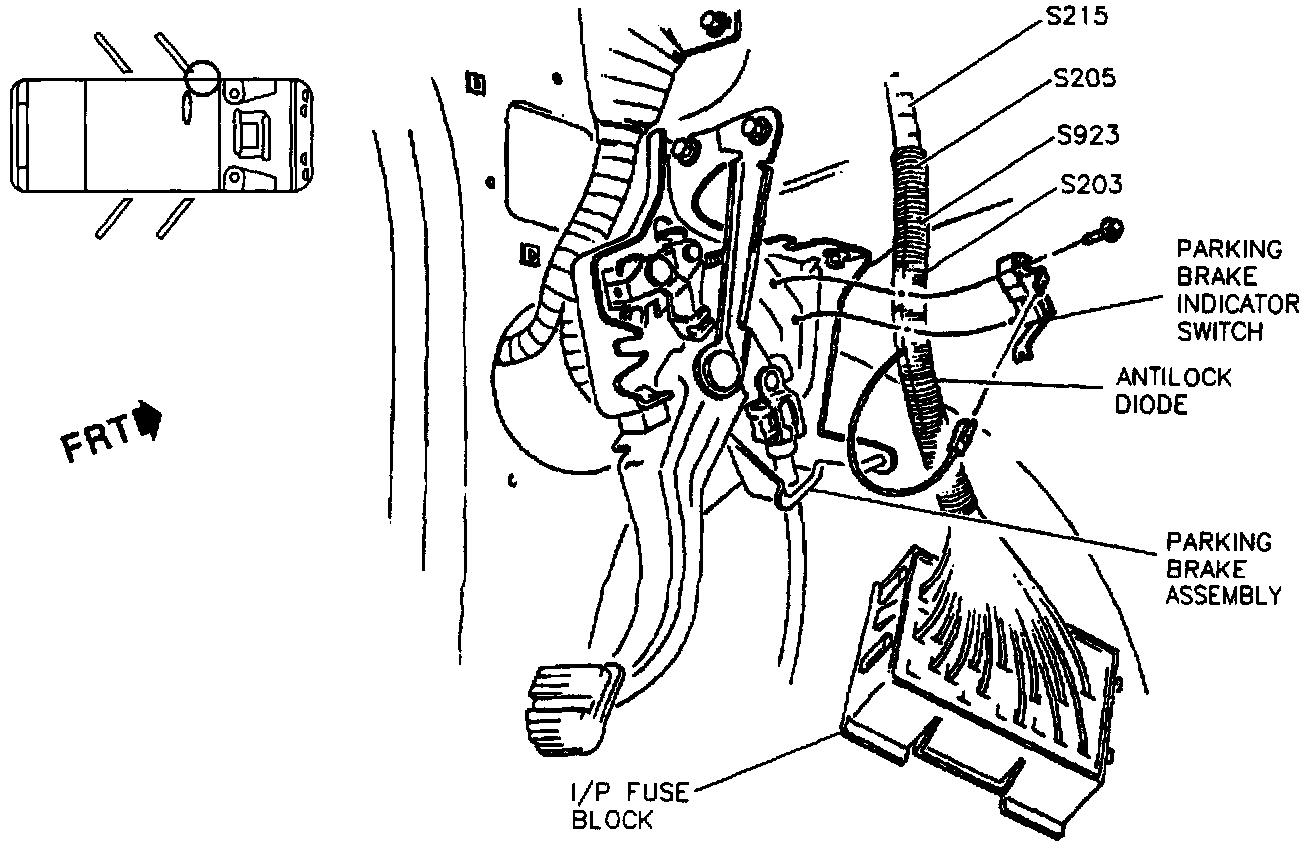

INSTRUMENT PANEL (I/P) FUSE BLOCK

LH Front Of Passenger Compartment, Attached To Parking Brake Bracket:






The Instrument Panel (I/P) Fuse Block is located behind LH side of I/P, behind trim panel.
