C1 (Blue)
>>
Pin Information
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pin Information
Pins 1-8:

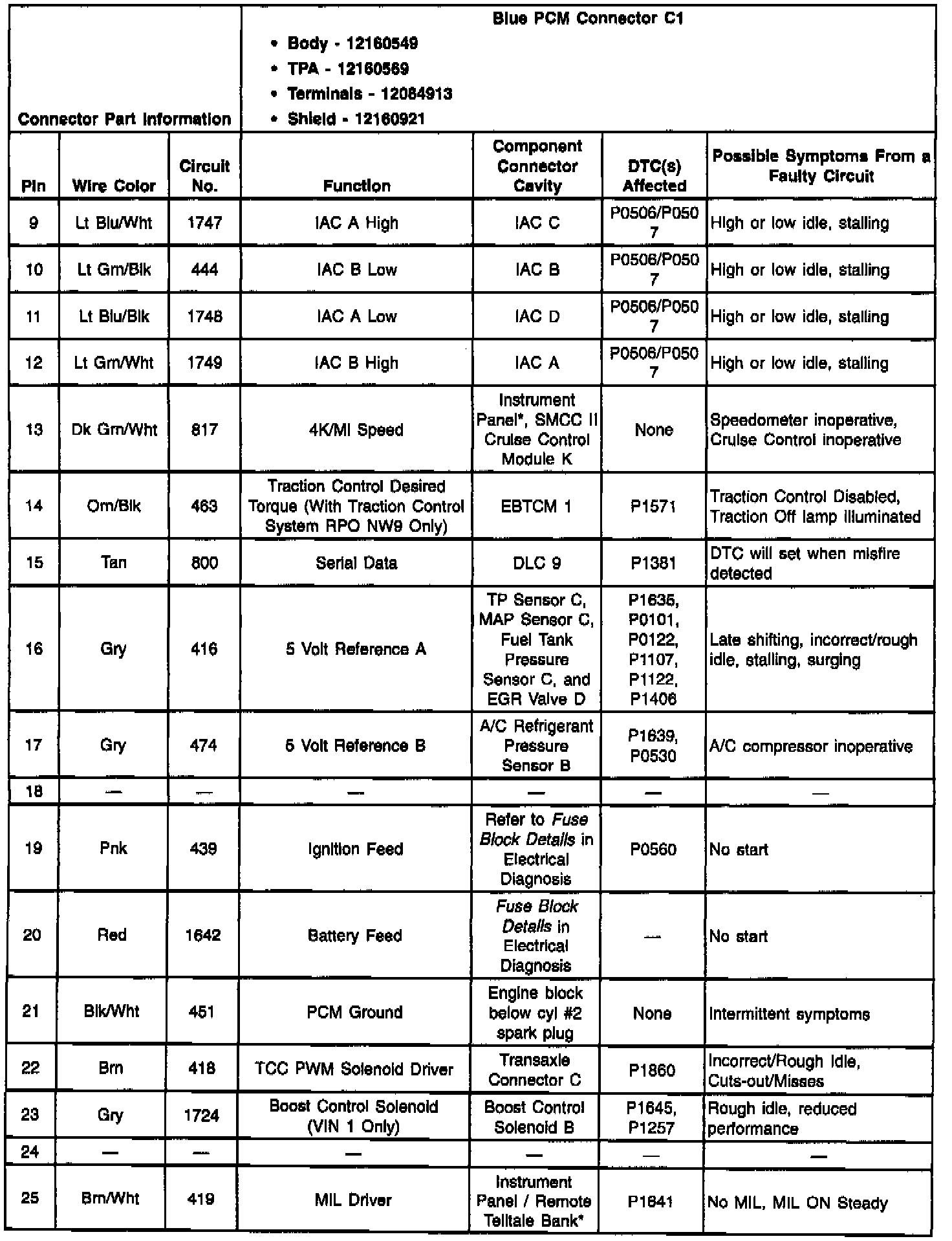

Pins 9-25:

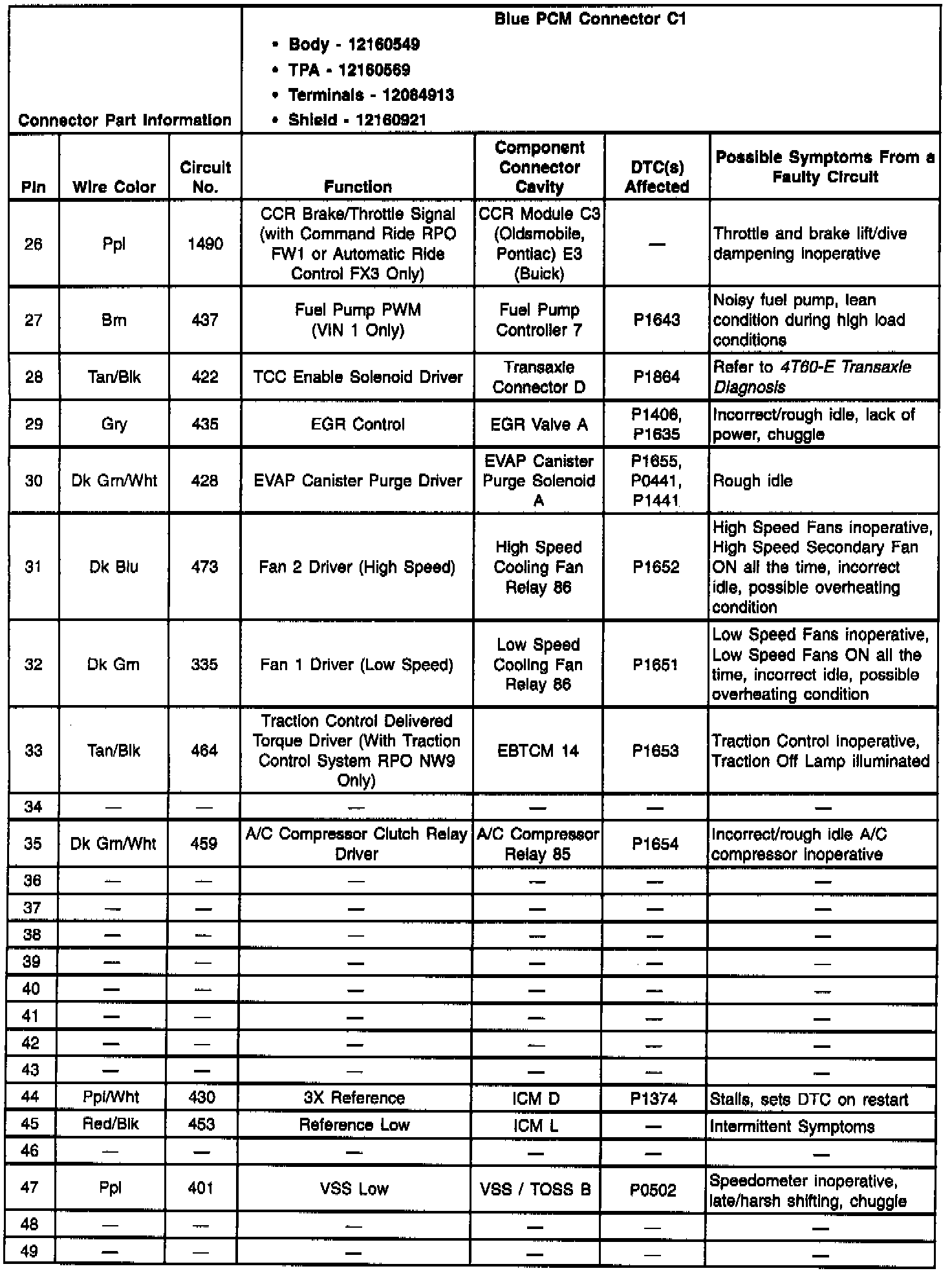

Pins 26-49:

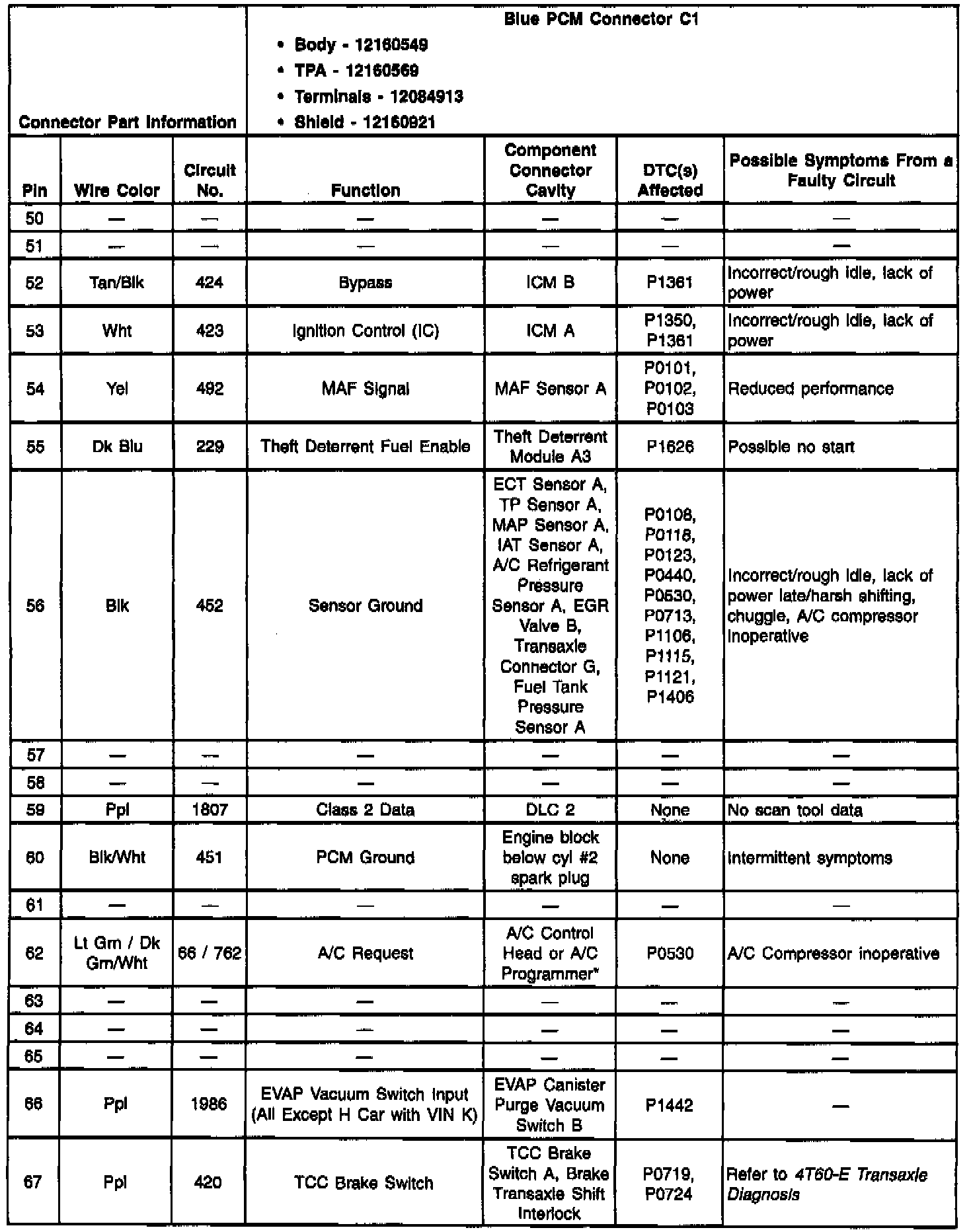

Pins 50-67:

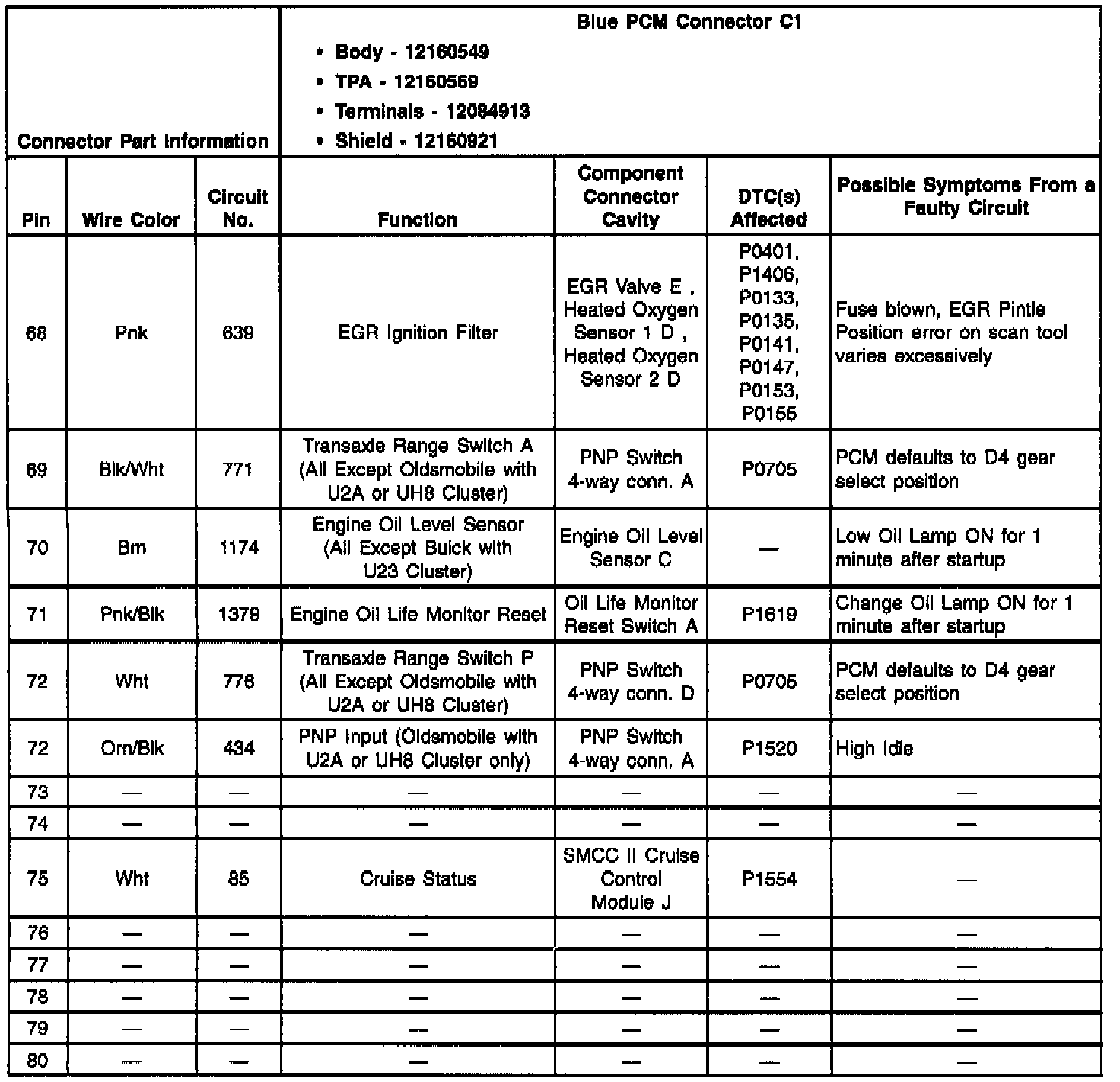

Pins 68-80:
