Fuse Panel Identification: Notes

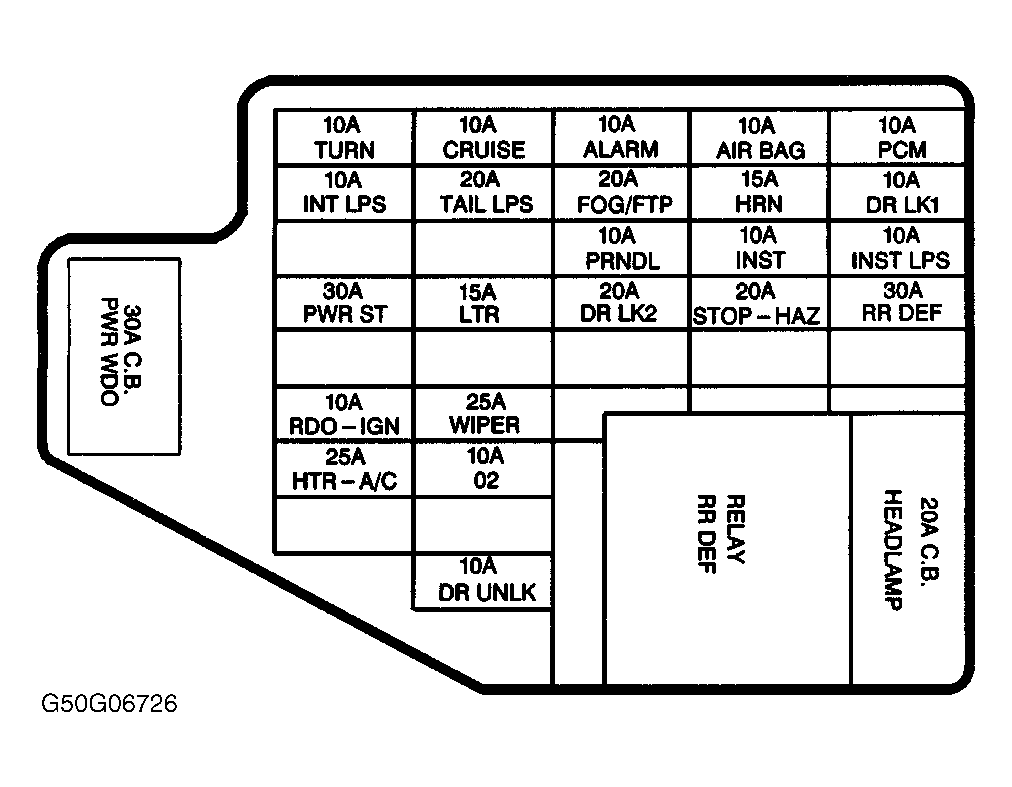

Fig 1: Fuse Panel Identification

G50G06726

Courtesy of GENERAL MOTORS CORP.
