Heater A/C Control Assembly Connector C1

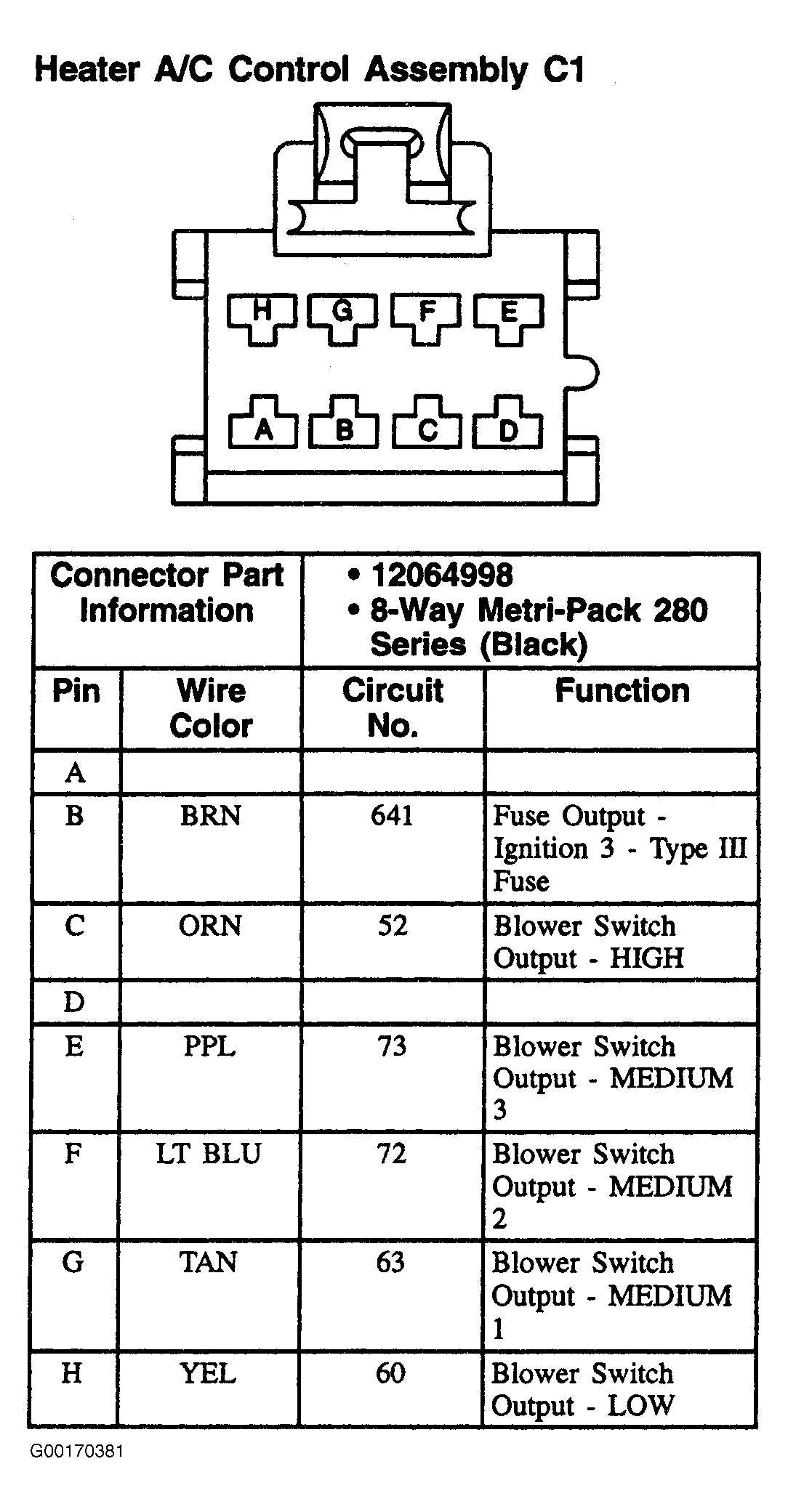

Fig 1: Heater A/C Control Assembly Connector C1 (Cutlass & Malibu) - 8-Pin Connector (Black)
G00170381Courtesy of GENERAL MOTORS CORP.
