Cruise Control Module: Installation

WARNING: This page is about a different car, the 1997 Pontiac Grand Am, 1997 Oldsmobile Achieva, and 1997 Buick Skylark. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten module-to-bracket bolts to 89 INCH lbs. (10 N.m). Tighten screws to 18 ft. lbs. (25 N.m).

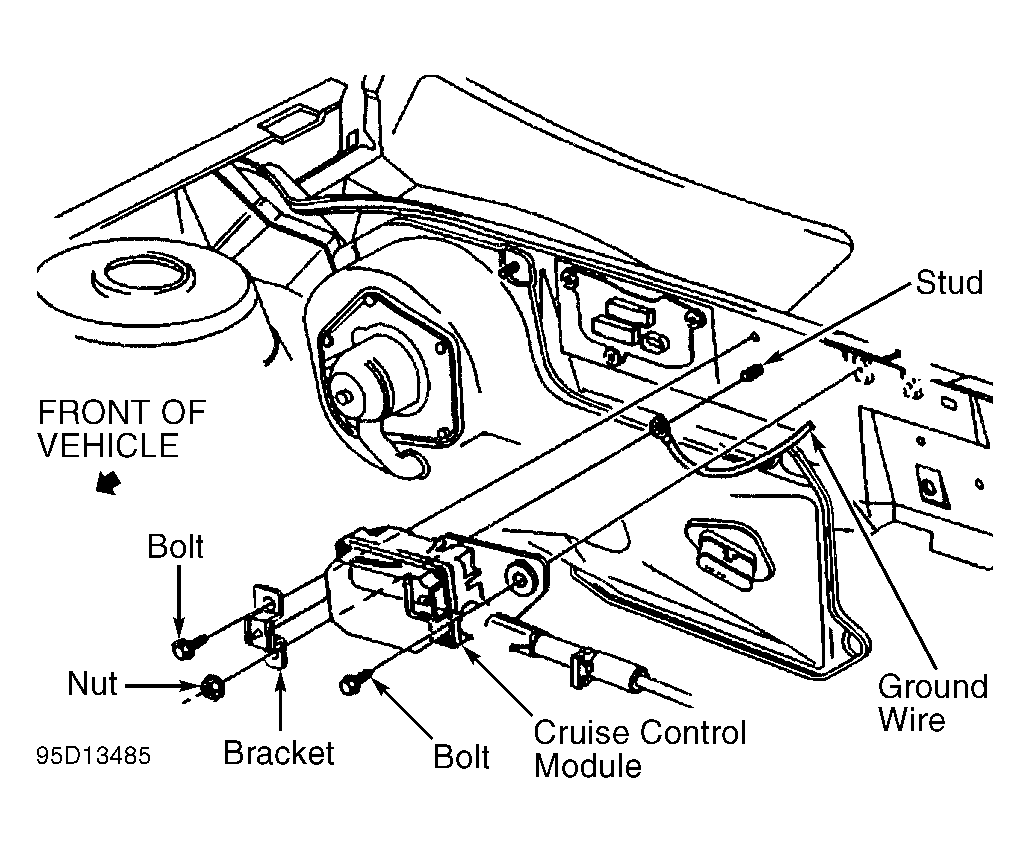

Fig 1: Removing Cruise Control Module
G95D13485Courtesy of GENERAL MOTORS CORP.
