Cruise Control Servo Cable: Service and Repair

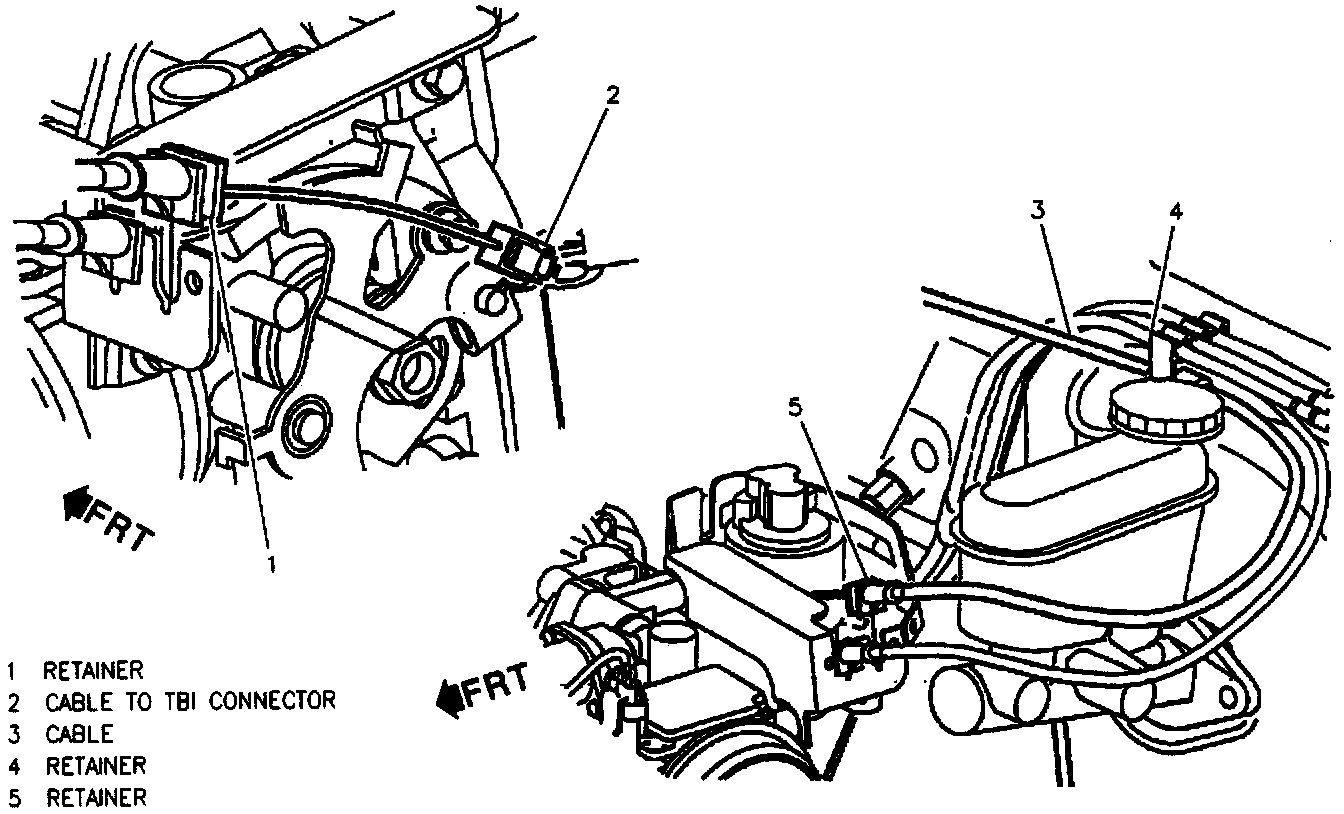

Cruise Control Cable Installation:

Cruise Control Cable To Module Attachment:

REMOVE OR DISCONNECT
1. Cruise control cable at TBI cam and throttle body bracket
2. Cruise control cable from cruise control module.
3. Cable from retainers.

Important: Note cable routing for replacement.

INSTALL OR CONNECT
1. Cruise control cable to cruise control module.
2. Cruise control cable slug TBI cam (assure cable is under hook)
3. Snap cable to throttle body bracket
4. Cable to retainers.
5. Adjust cable.
