Camshaft Position Sensor: Service and Repair

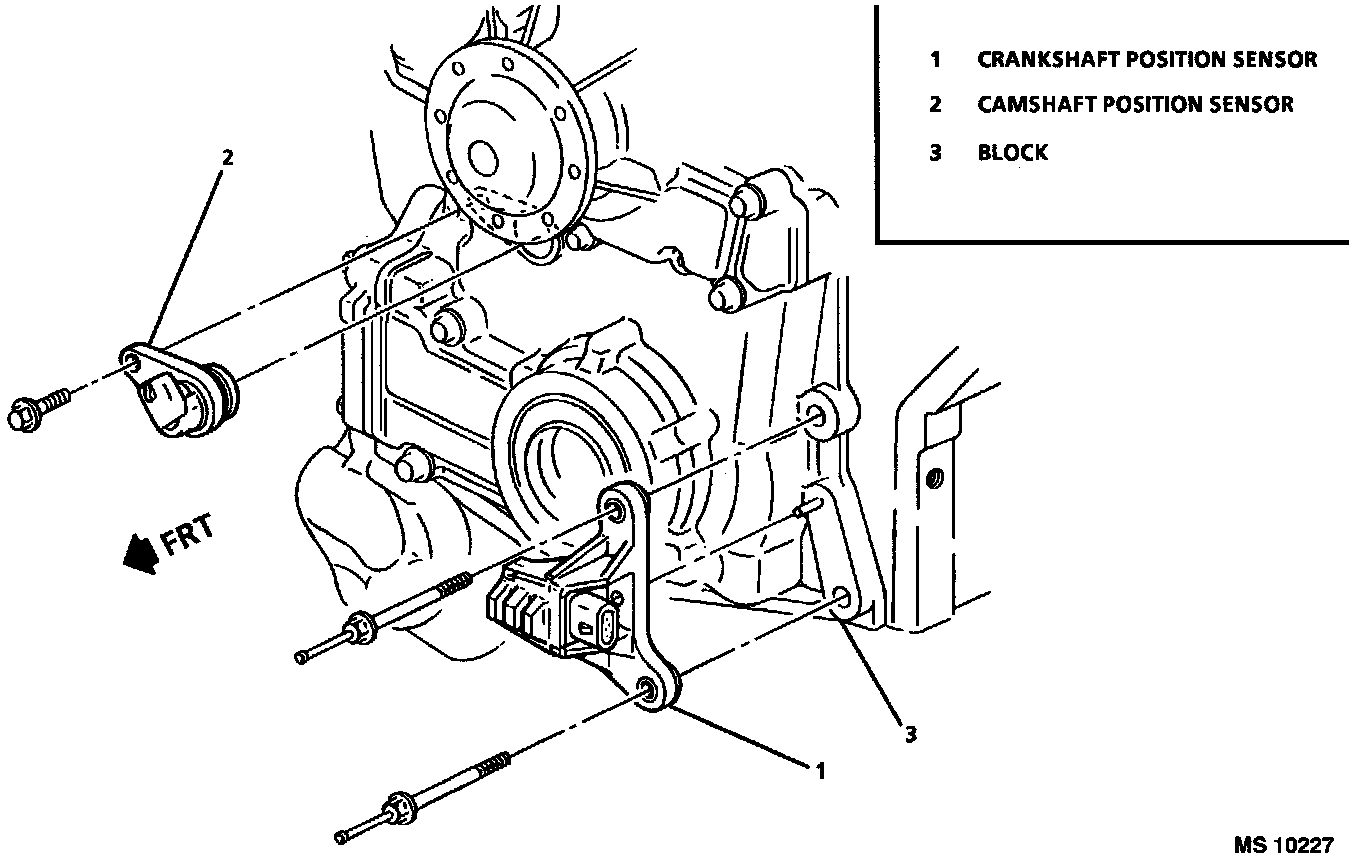

Camshaft And Crankshaft Position Sensors:

REMOVE OR DISCONNECT
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the camshaft position sensor.
3. Remove the camshaft position sensor retaining screw.
4. Remove the Camshaft Position (CMP) sensor from the engine front cover.

INSTALL OR CONNECT
1. Install the camshaft position sensor to the engine front cover.
2. Install the camshaft position sensor retaining bolt.
- Tighten the bolt to 4-6 Nm (35-53 lb. in.).
3. Connect the camshaft position sensor electrical connector.
4. Connect the negative battery cable.
