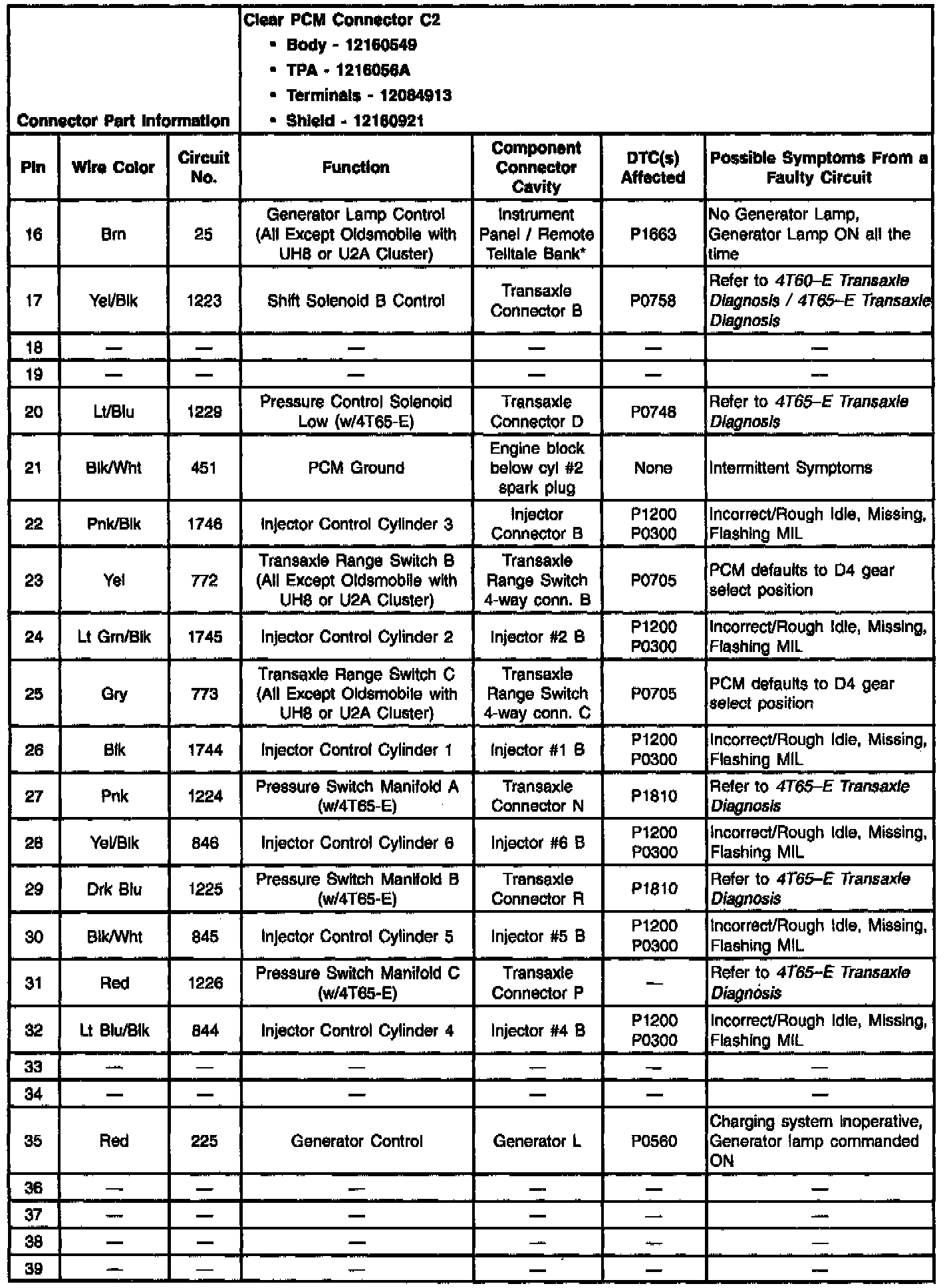

Home >> Oldsmobile >> 1997 >> LSS V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2 (Clear) >> Pin Information >> Pins 16-39
