Malfunction Indicator Lamp Driver Module: Service and Repair

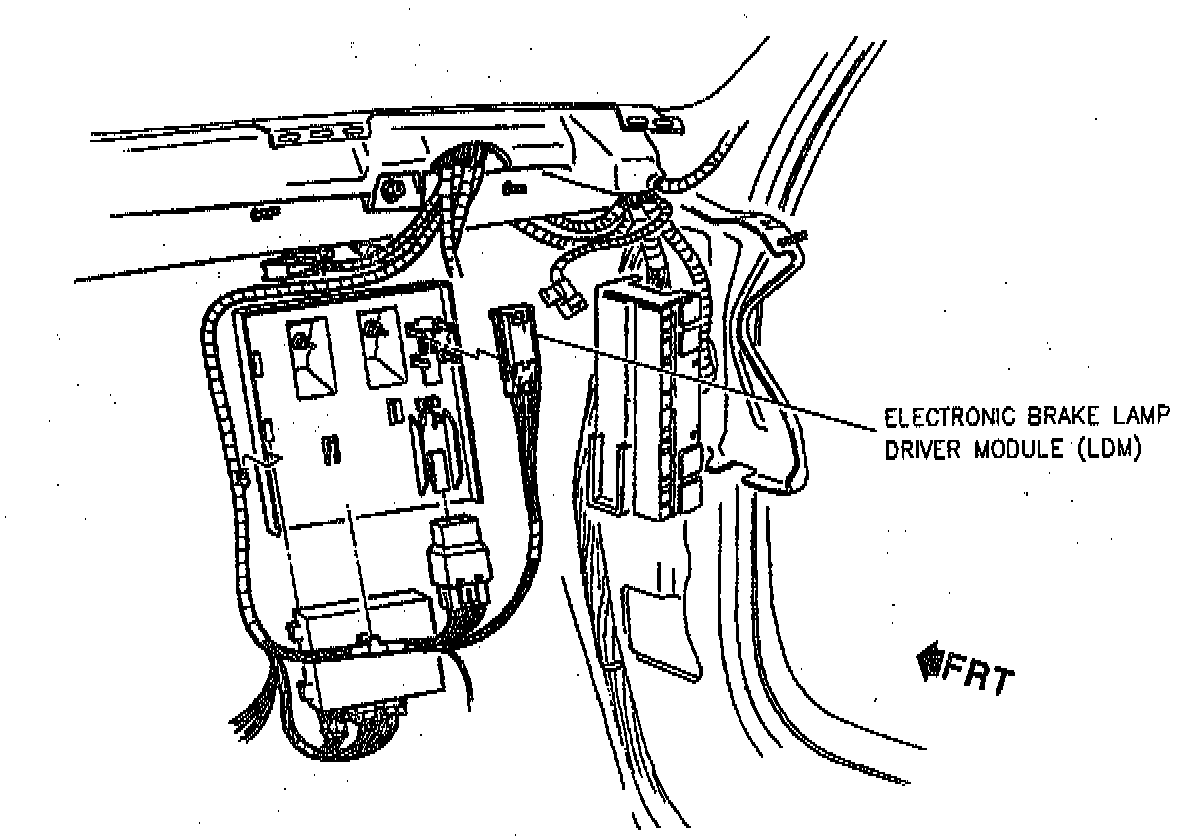

Electronic Brake Lamp Driver Module:

NOTE: The internal circuit board is replaceable. The terminals and housing are part of the wiring harness.

REMOVE OR DISCONNECT
1. Instrument panel compartment.
2. Unsnap Lamp Driver Module (LDM) from mall bracket.
3. Open LDM endcap and remove circuit board by pulling straight out.

INSTALL OR CONNECT
1. Circuit board into LDM case and close endcap. Use care not to damage circuit board.
2. Snap LDM into mall bracket clip.
3. Instrument panel compartment.
