Vehicle Speed Sensor: Service and Repair

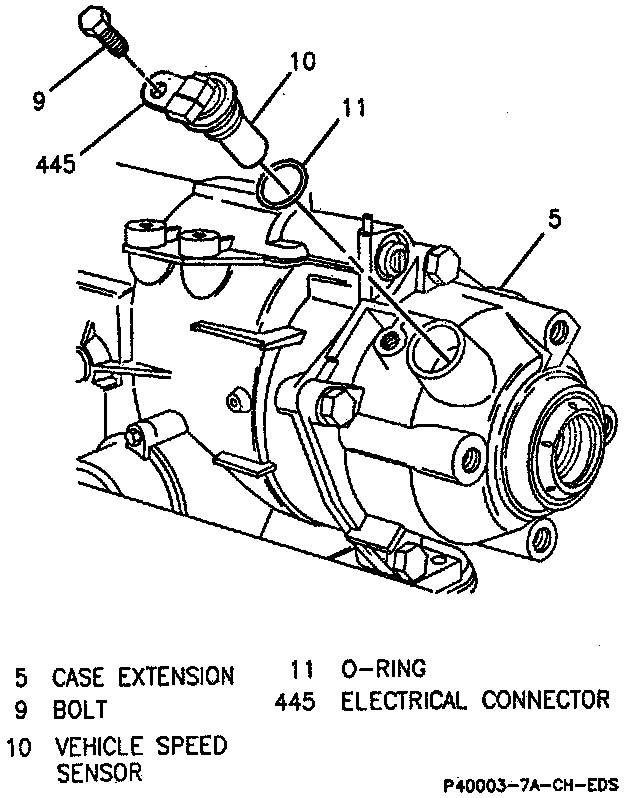

REMOVE OR DISCONNECT
1. Bolt.
2. Electrical connector.
3. Vehicle speed sensor from case extension.
4. O-ring from vehicle speed sensor.

INSTALL OR CONNECT
1. O-ring onto vehicle speed sensor.
2. Vehicle speed sensor into case extension.
3. Electrical connector.
4. Bolt.
^ Tighten bolt to 11 Nm (97 inch lbs.).
