Engine Control Module: Locations

Electrical Component Location Views:

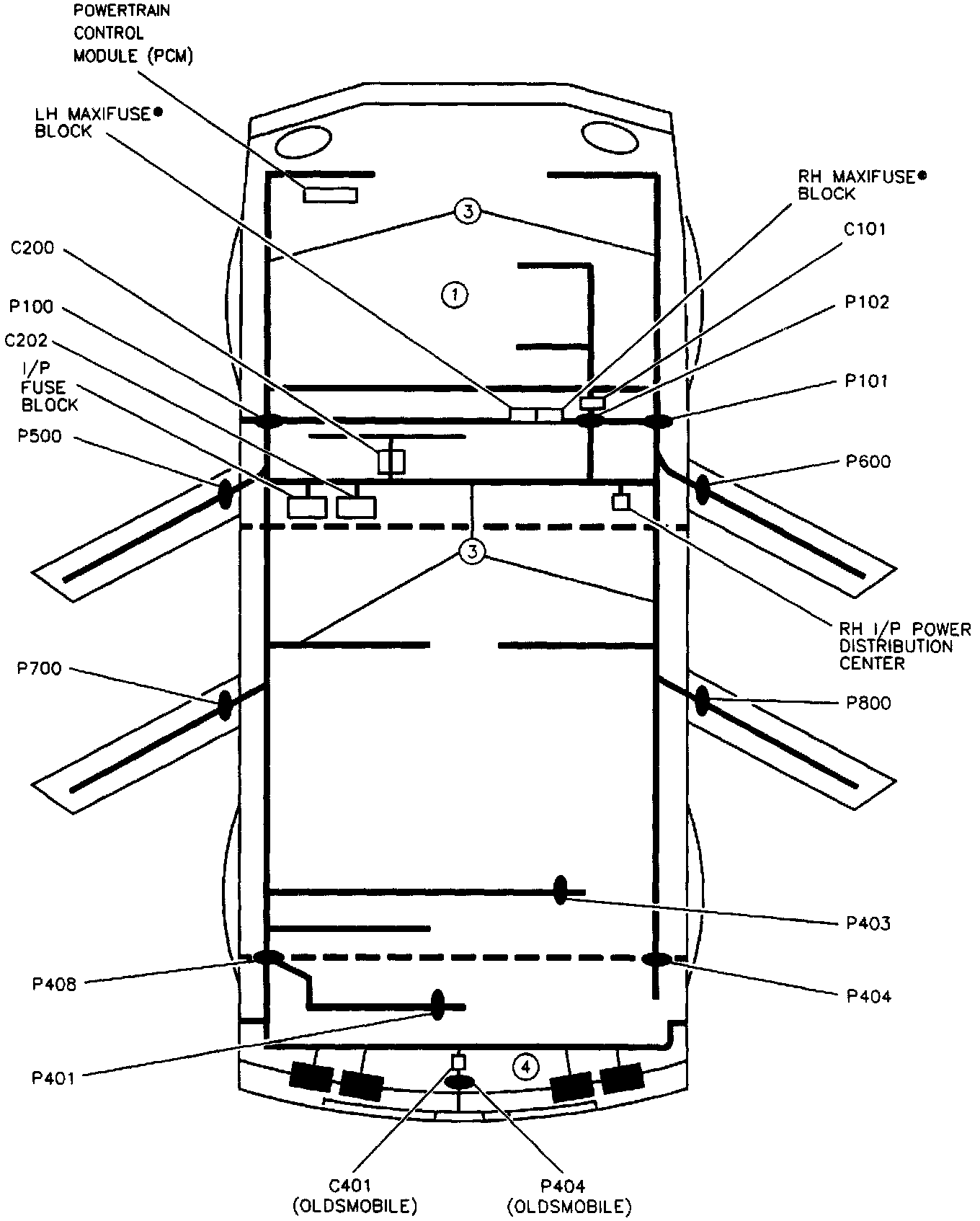

Center Rear Of Engine Compartment, At Cowl:

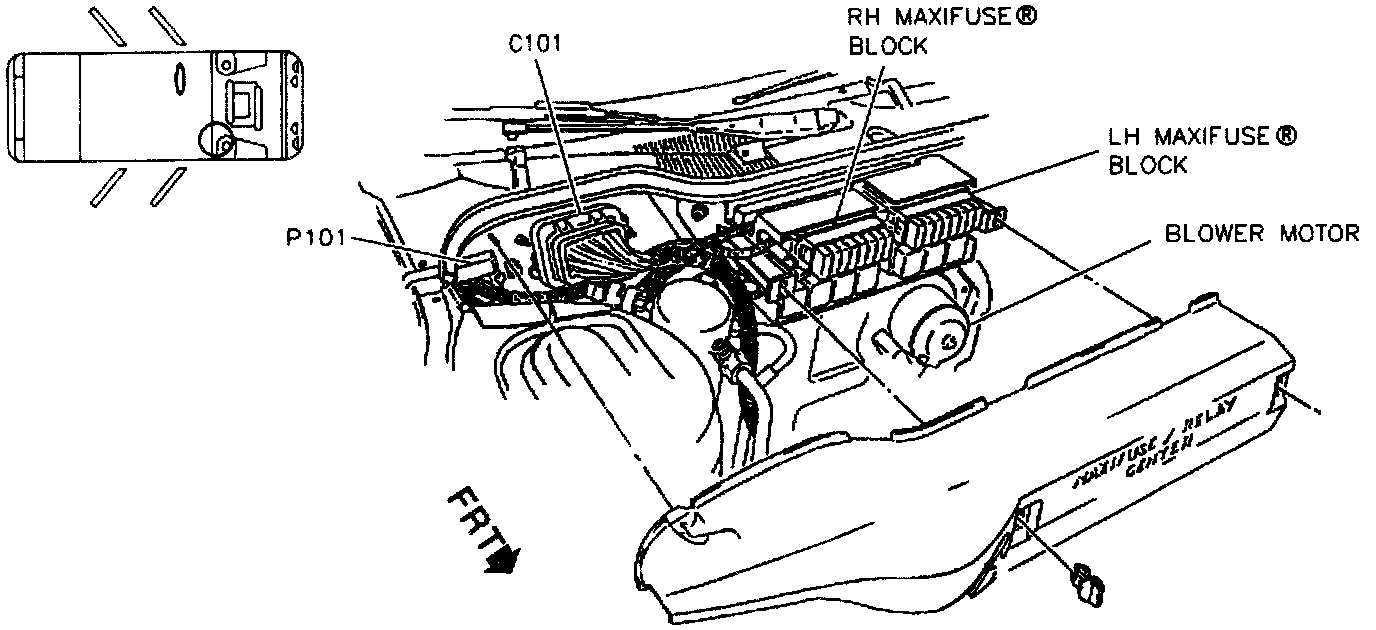

RH Rear Of Engine Compartment, At Cowl:
