Symptom Tests: Notes

WARNING: This page is about a different car, the 1998 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To locate components, see COMPONENT LOCATIONS table. To identify instrument panel clusters, see Fig 1 -Fig 3 . To identify instrument panel cluster connector terminals, see Fig 4 or Fig 5 .

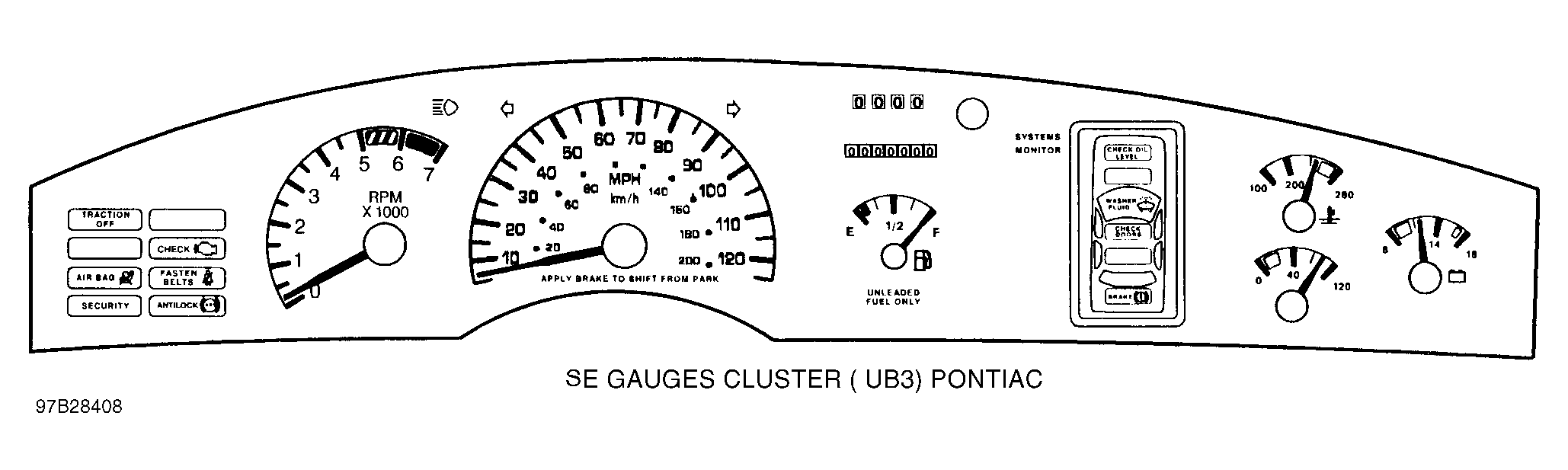

Fig 1: Identifying Instrument Cluster UB3

G97B28408

Courtesy of GENERAL MOTORS CORP.

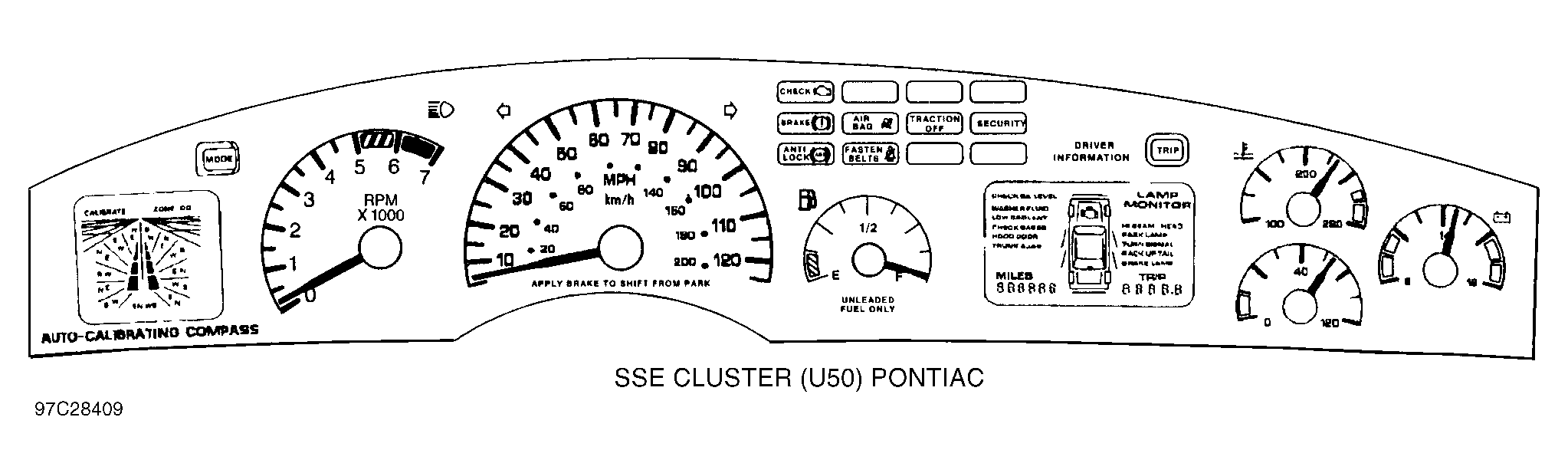

Fig 2: Identifying Instrument Cluster U50

G97C28409

Courtesy of GENERAL MOTORS CORP.

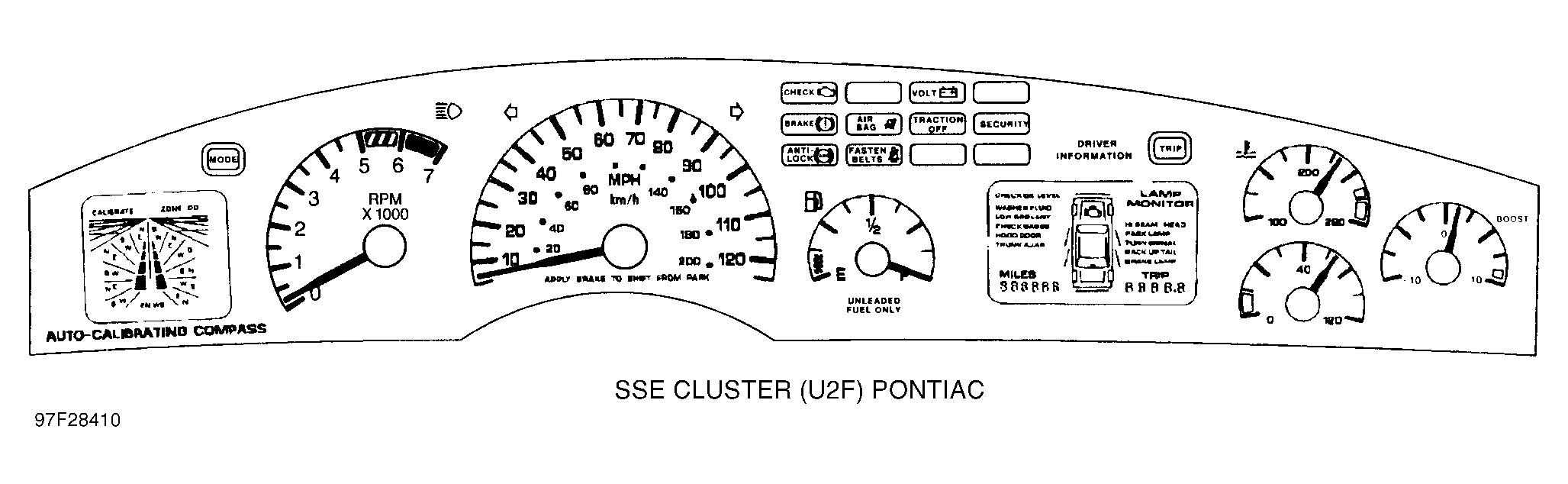

Fig 3: Identifying Instrument Cluster U2F

G97F28410

Courtesy of GENERAL MOTORS CORP.

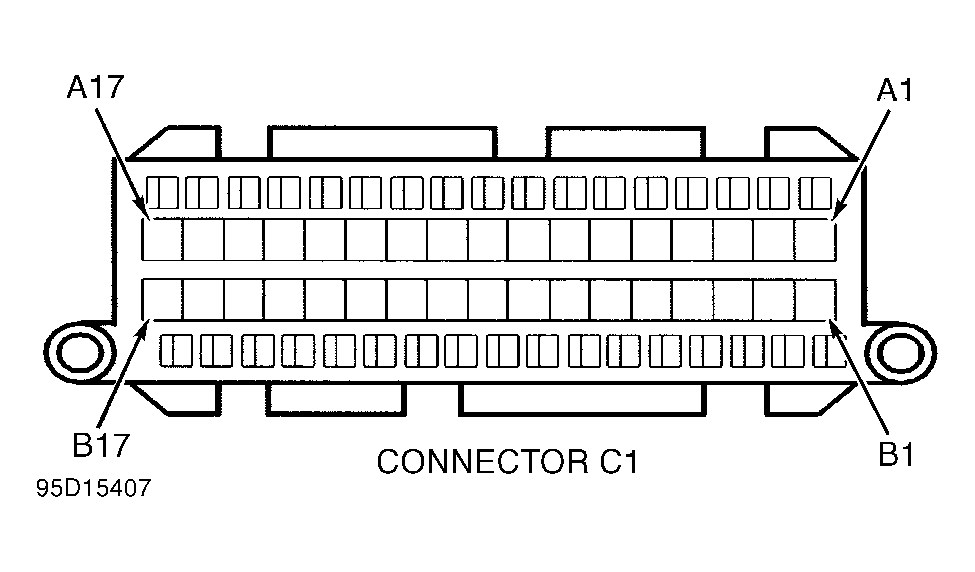

Fig 4: Identifying Instrument Panel Cluster Connector Terminals (Connector C1 On U50 & U2F Instrument Clusters)

G95D15407

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Instrument Panel Cluster Connector C2 Terminals (U50 & U2F Clusters)

G97J28406

Courtesy of GENERAL MOTORS CORP.
