Front-End Discriminating Sensor: Installation
WARNING: This page is about a different car, the 1998 Pontiac Grand Am, 1998 Oldsmobile Achieva, and 1998 Buick Skylark. However, it is still accessible from the selected car via links, so may be relevant.

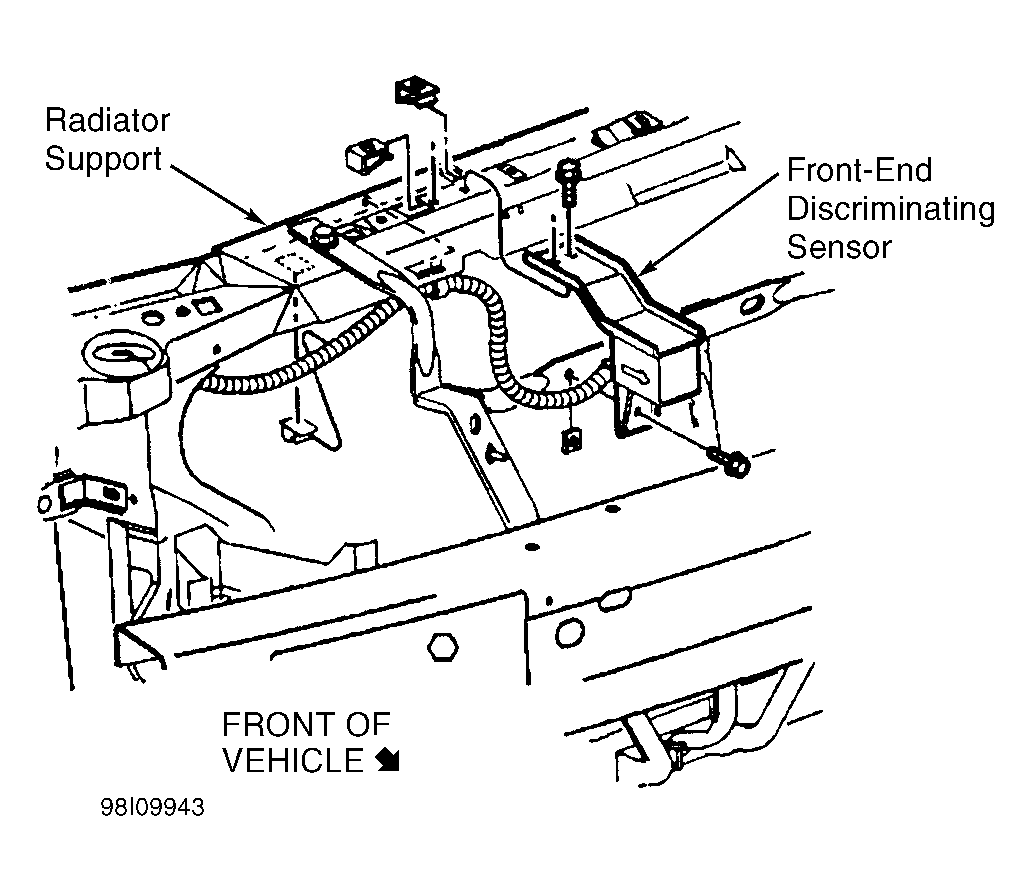

- Align sensor to vehicle, ensuring arrow on sensor body is pointing toward front of vehicle. See Figure . Install fasteners and tighten to 89 INCH lbs. (10 N.m). Reconnect sensor connector and reinstall CPA clip.
- Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See TESTING - SYSTEM OPERATION CHECK .
