Transaxle Disassembly: Notes

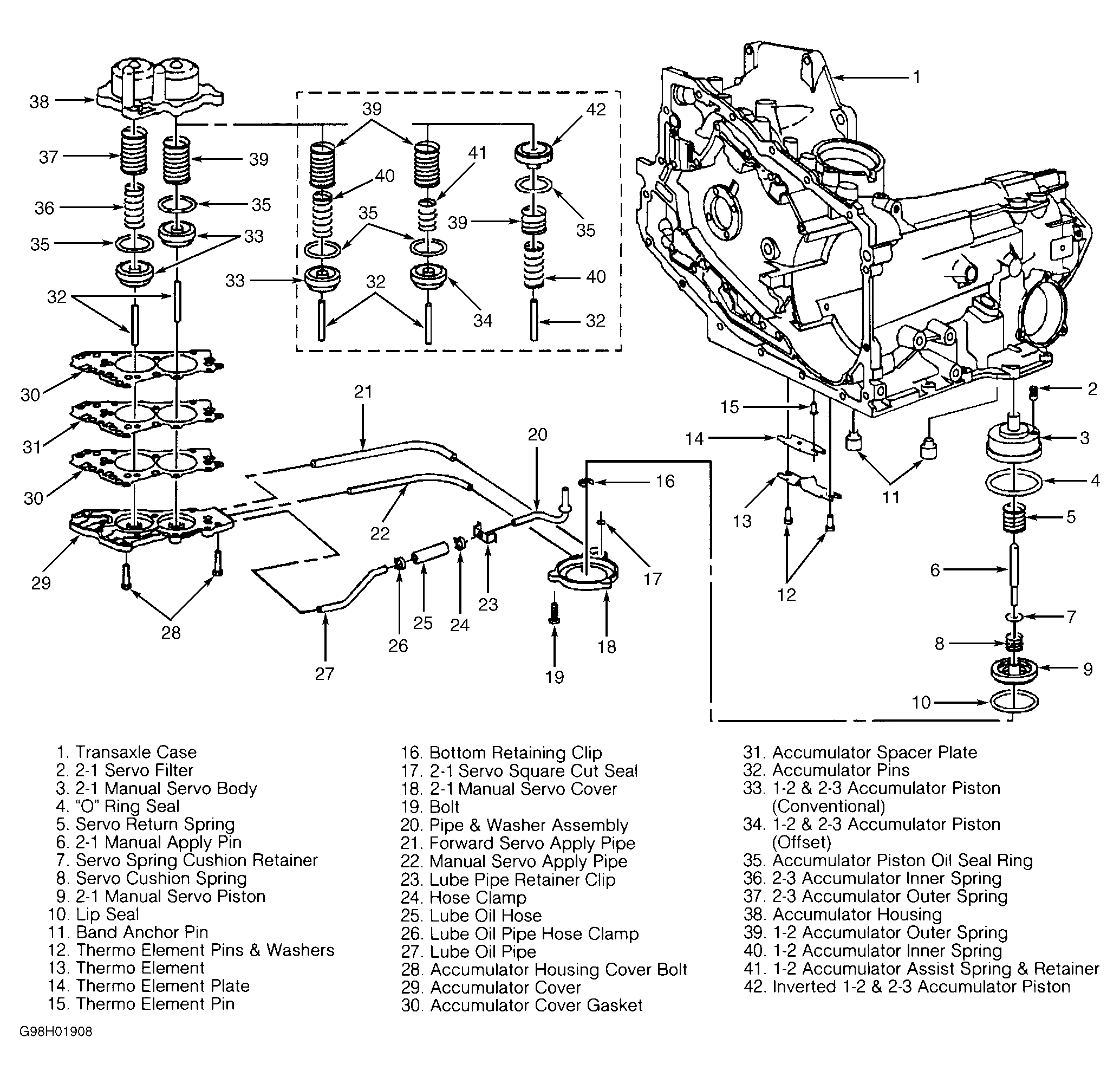

NOTE: On February 2, 1995, manufacturer introduced a redesigned 2-1 servo seal. Previous design seal (.066") and NEW design seal (.132") are both included in Service Package (24204817). Seal is located above 2-1 servo cover. See Figure . Seal pocket in transaxle case is machined deeper to support NEW design. Seal is twice as tall as previous design seal and is a square cut design. Seal thickness and outside diameter did not change. Seal retains fluid in forward servo circuit to apply forward band. Seals are NOT interchangeable.
