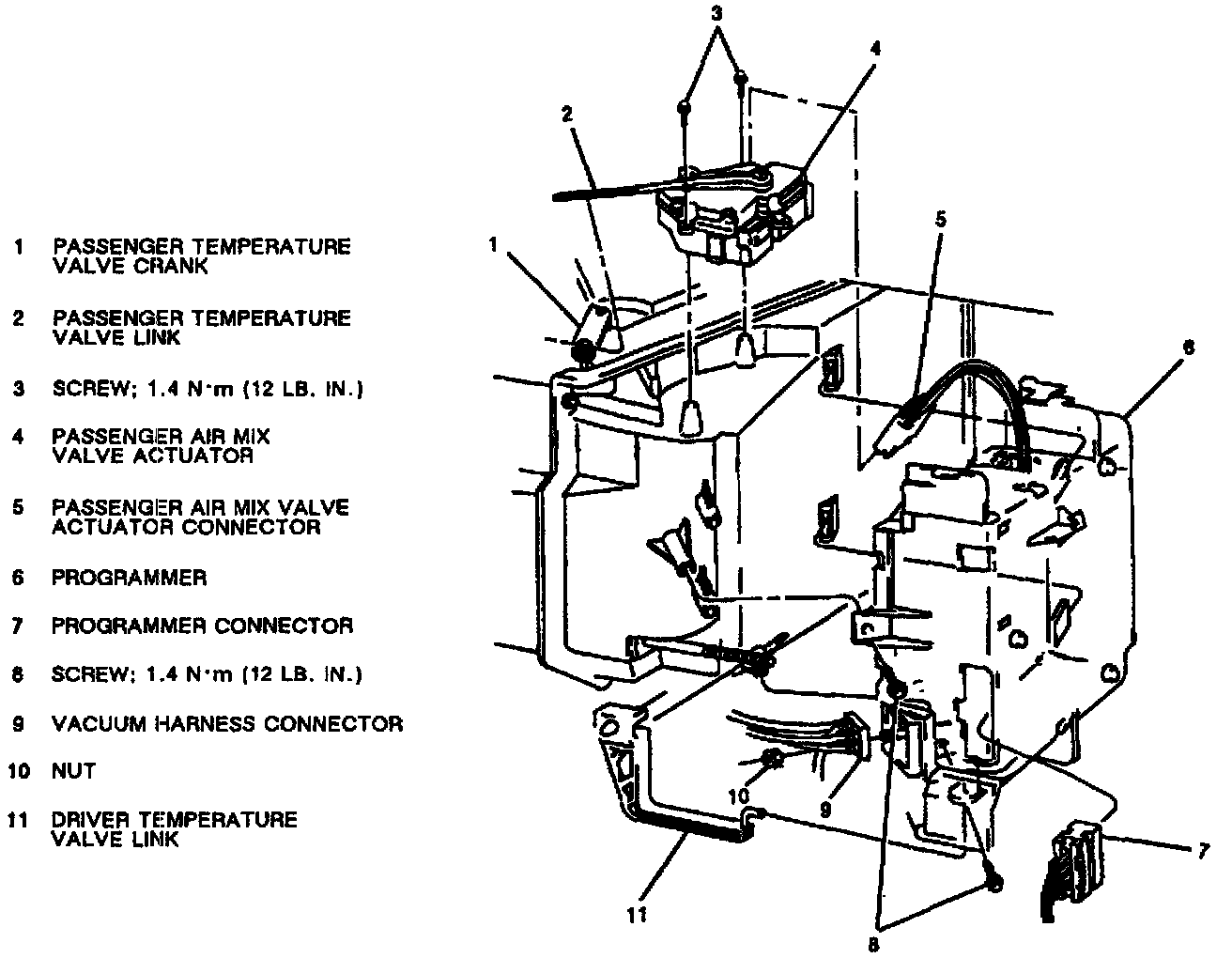

HVAC Programmer

Heater And A/C Programmer:

Remove or Disconnect

1. IP compartment, disengage stops and swing down.
2. Electrical and vacuum connectors.
3. Driver temperature valve link rod.
4. Screws and programmer from vehicle.

Install or Connect

1. Screws after positioning programmer.

Tighten
^ Screws to 1.4 N.m (12 lb. in.).

2. Electrical arid vacuum connectors.
3. Driver temperature valve link rod.

Adjust
^ Temperature valve link rod after installation.

4. IP compartment insert by pushing forward.
