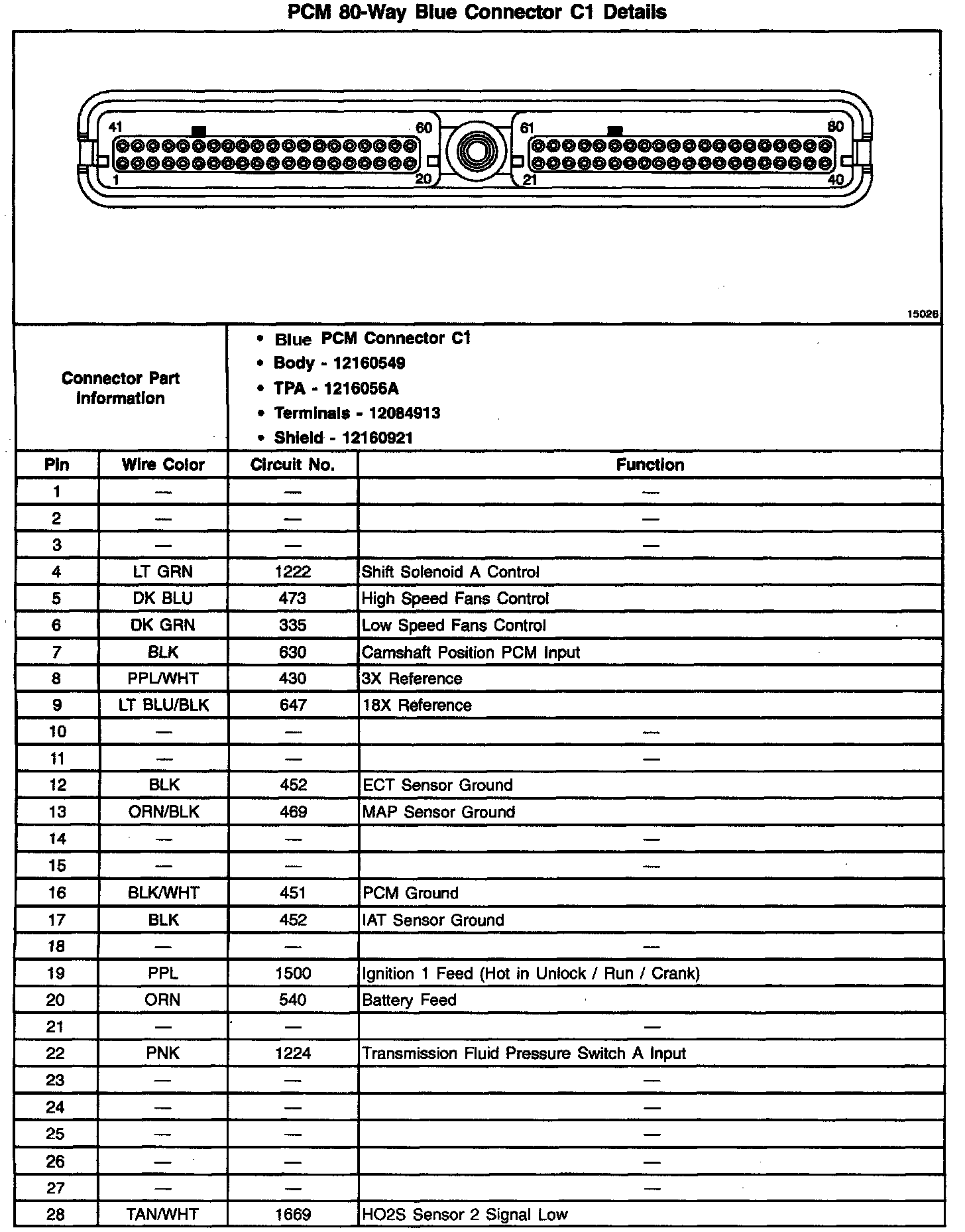

Home >> Oldsmobile >> 1998 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue) >> Pins 1-28
