Door Module

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the trim panel. Service and Repair
3. Remove the water deflector.
4. Depress the lower tang on the backside of the module panel.

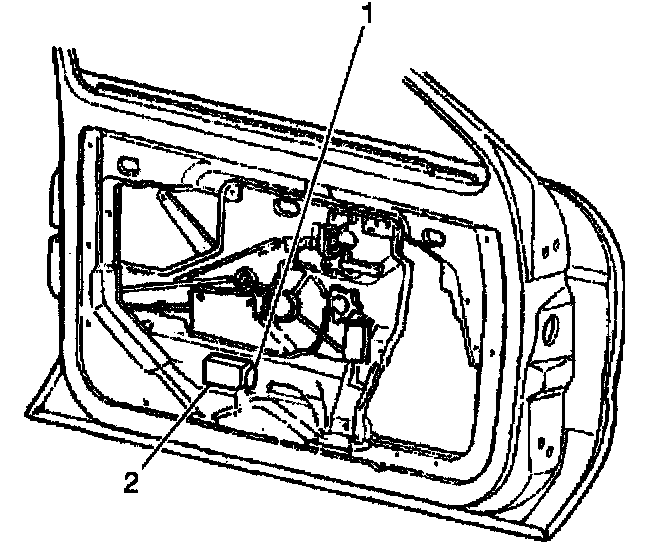

5. Disconnect the electrical connector (1).
6. Remove the door control module (2).

Installation Procedure

1. Install the door control module (2).
2. Connect the electrical connector (1).
3. Install the water deflector.
4. Install the trim panel.
5. Connect the negative battery cable.
