Connector Views

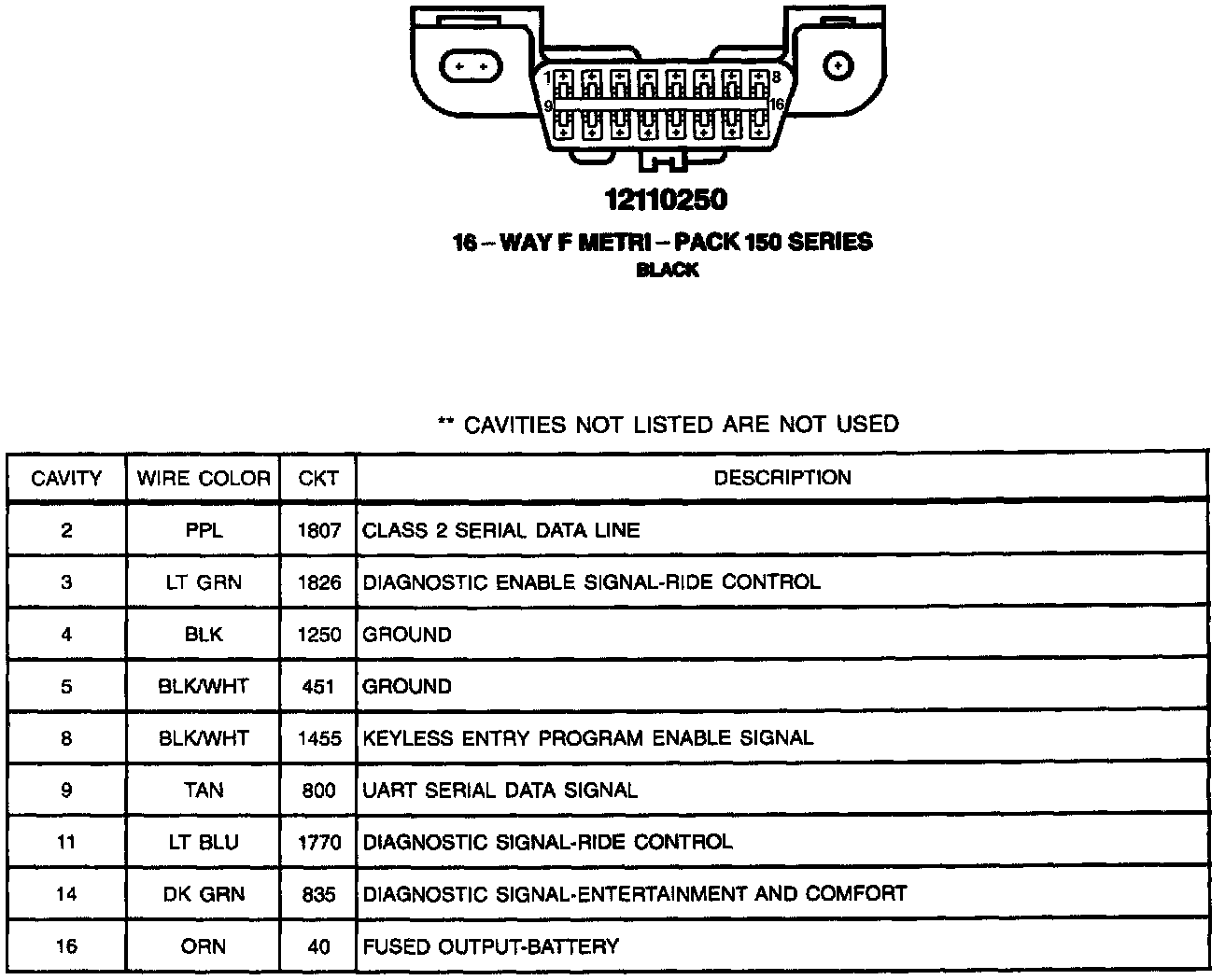

Data Link Connector (DLC) Connector Face:

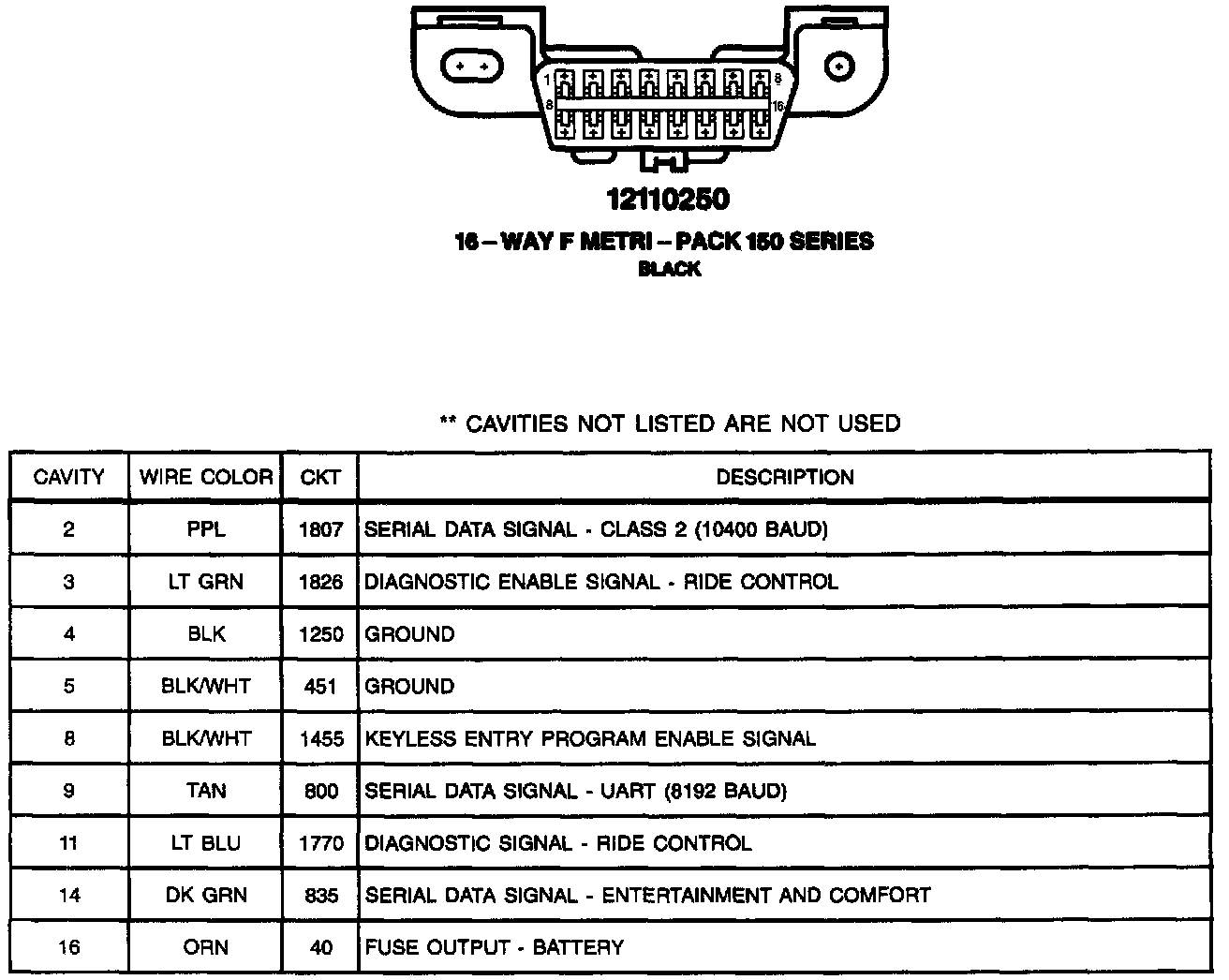

Data Link Connector (DLC):

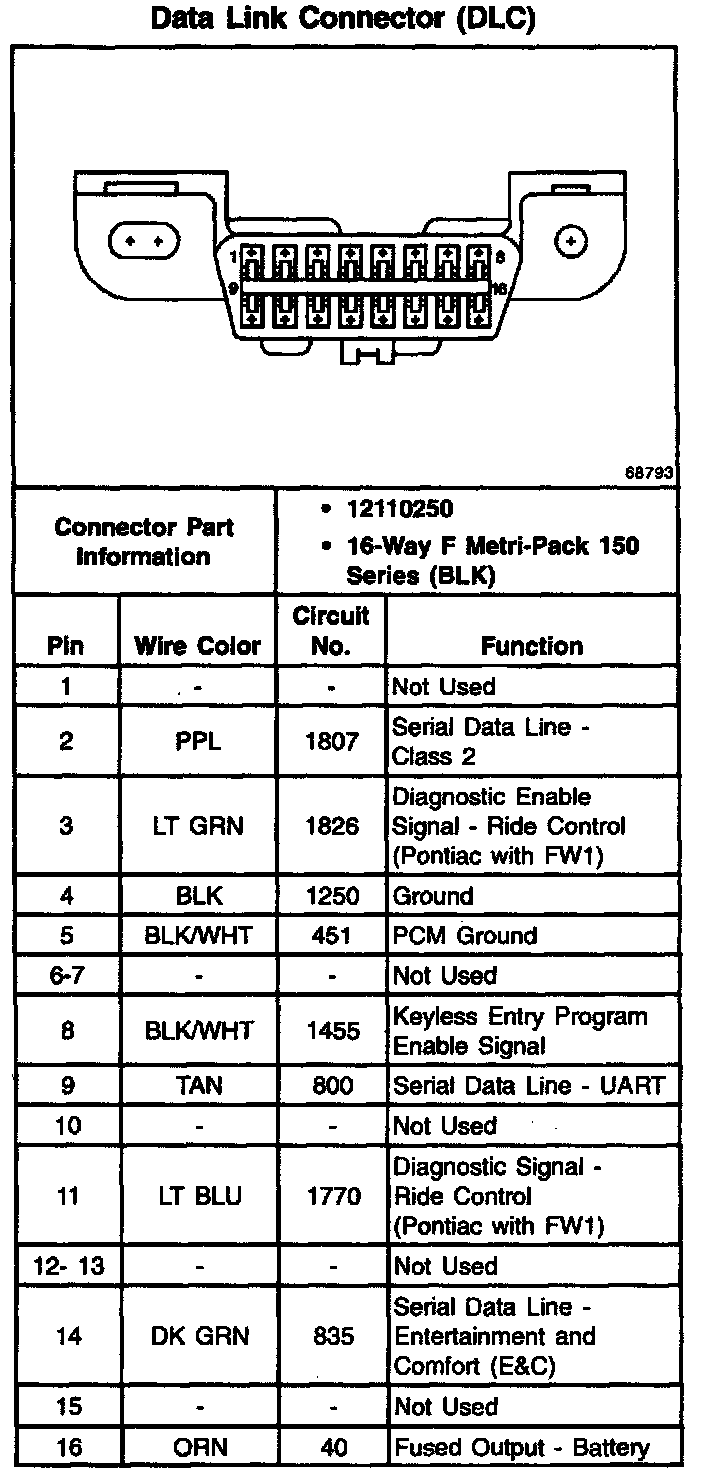

Data Link Connector (DLC):
