Air Flow Meter/Sensor: Locations

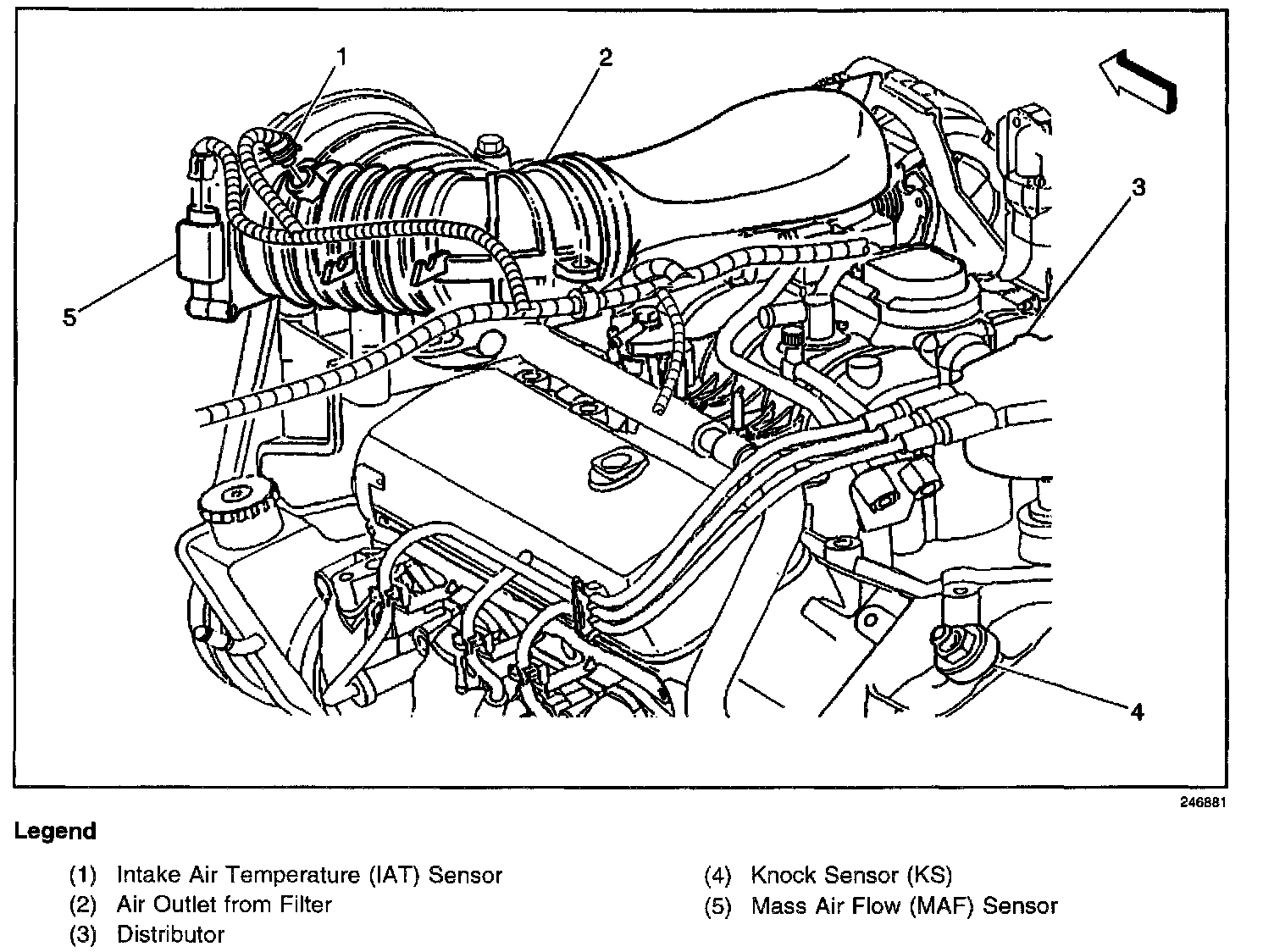

Mass Air Flow (MAF) Sensor And Intake Air Temperature (IAT) Sensor:





LF of the engine compartment, on the air intake duct
