Connector Identification

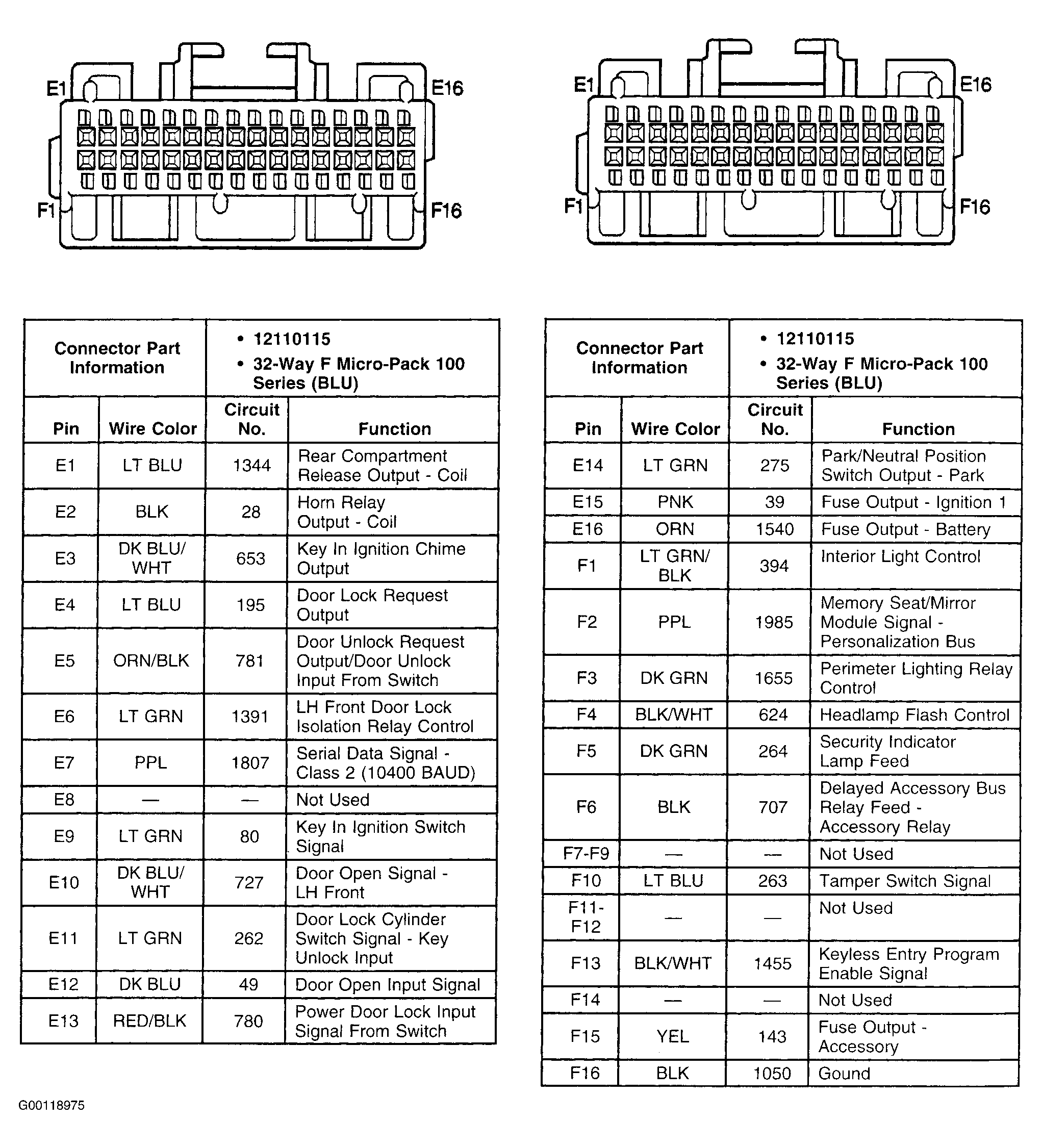

Fig 1: Identifying Remote Function Actuator Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
