Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

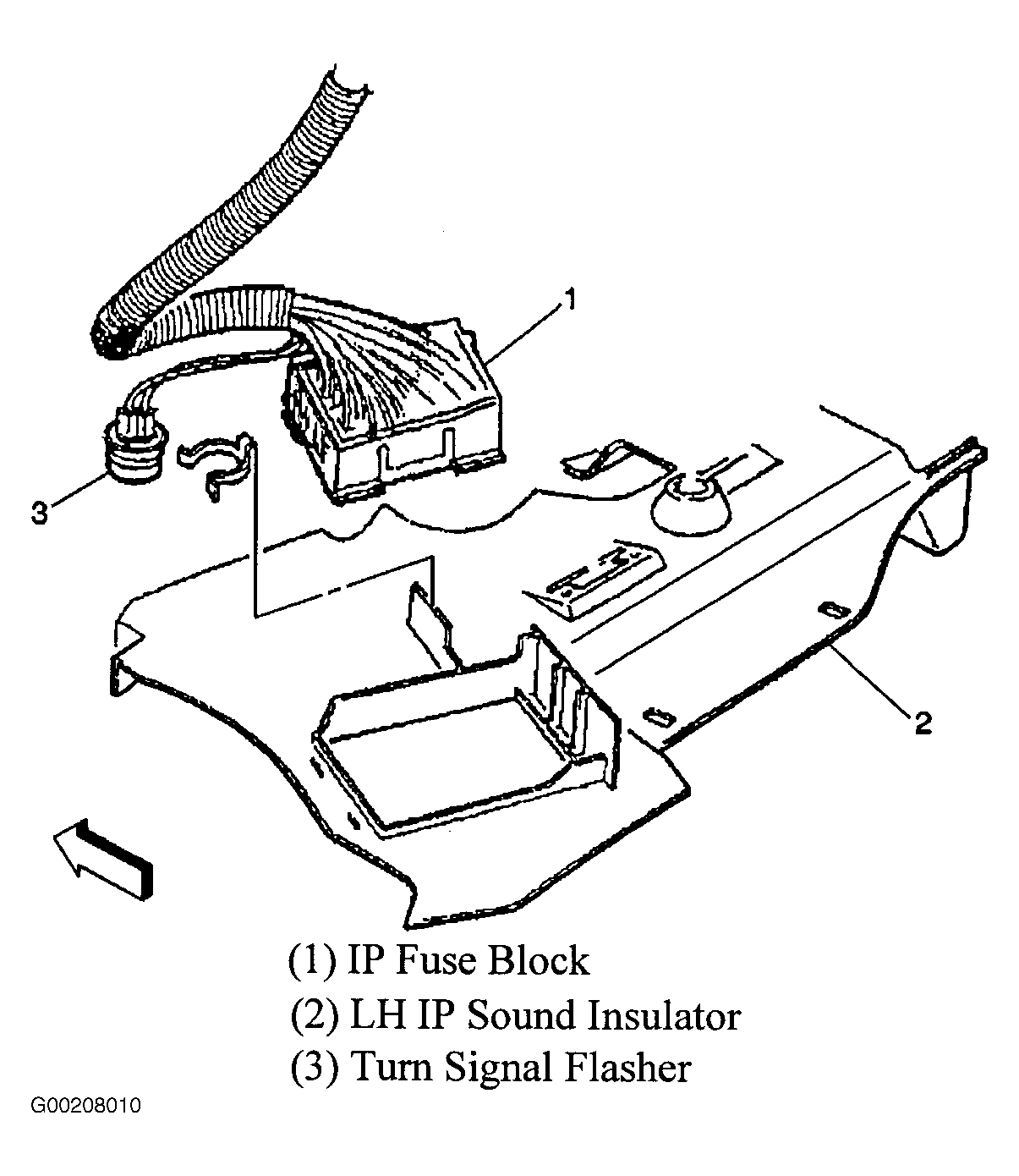

| I/P Fuse Panel | Under the left side of the I/P on the left I/P sound insulator. See Fig 1 . |
| Left Seat Front Vertical Motor | Left hand front of the passenger compartment, under the left front seat. |
| Left Seat Front Horizontal Motor | At the left front of the passenger compartment, under the left front seat. |
| Left Seat Rear Vertical Motor | Left front of the passenger compartment, under the left front seat. |
| Left Seat Recline Motor | Left front of the passenger compartment, under the left front seat. |

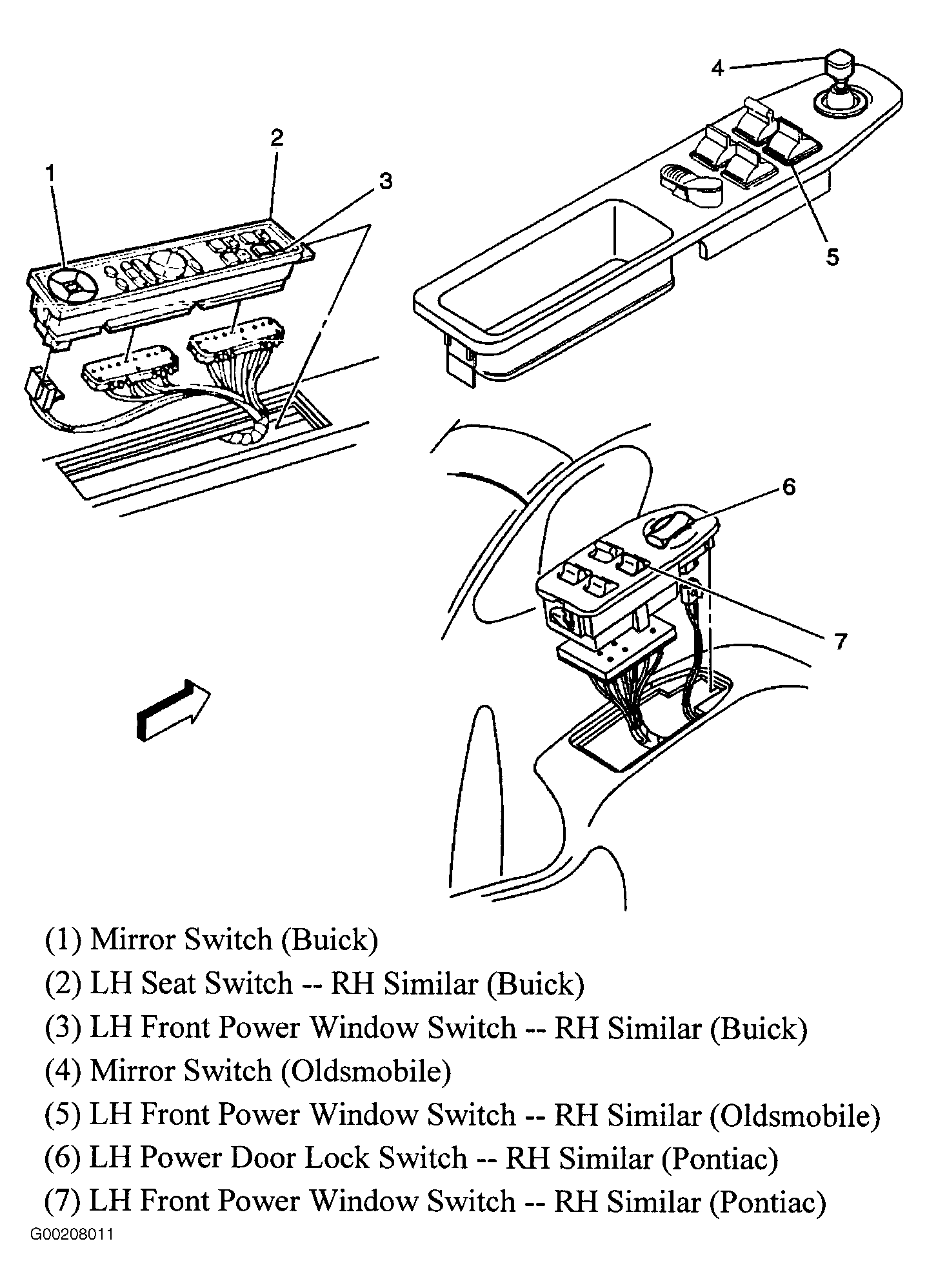

| Left Seat Switch | At the left front of the passenger compartment, on the left of the left hand front seat. See Fig 2 . |

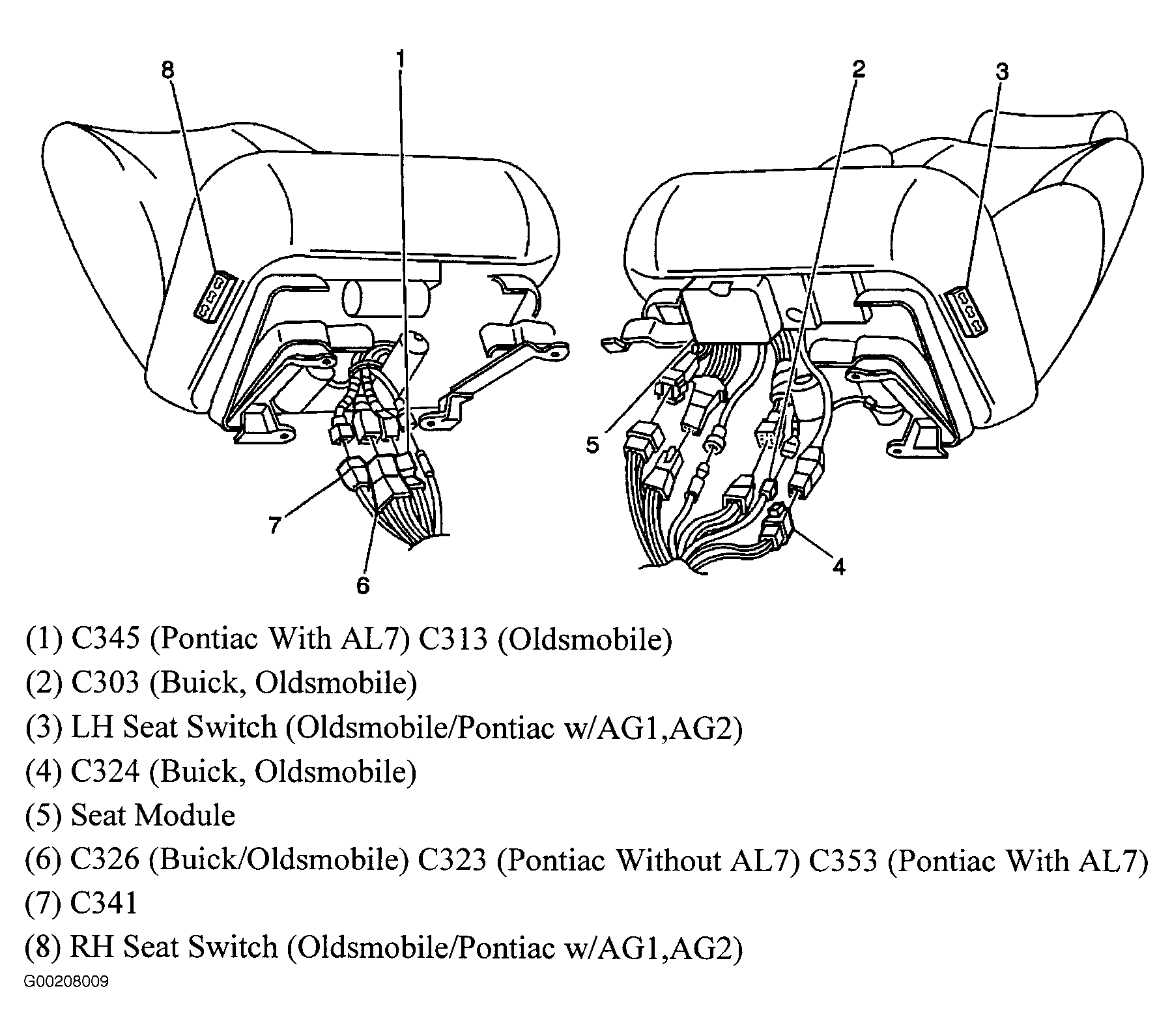

| Memory Seat/Mirror Module C1, C2 & C3 | In the left front of the passenger compartment, under the left front seat. See Fig 3 . |
| Memory Seat/Mirror Module Diagnostic Connector | In the left front of the passenger compartment, under the left front seat. |

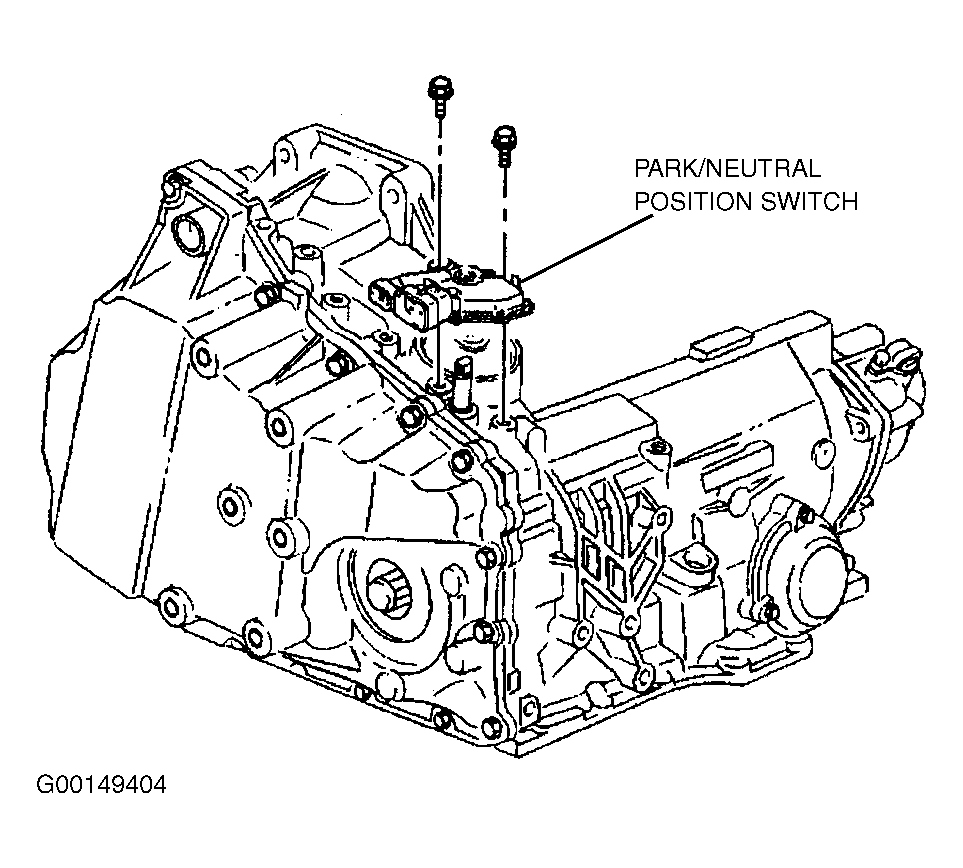

| Park/Neutral Position (PNP) Switch | On the left side of the transaxle, below the exhaust gas recirculation valve. See Fig 4 . |

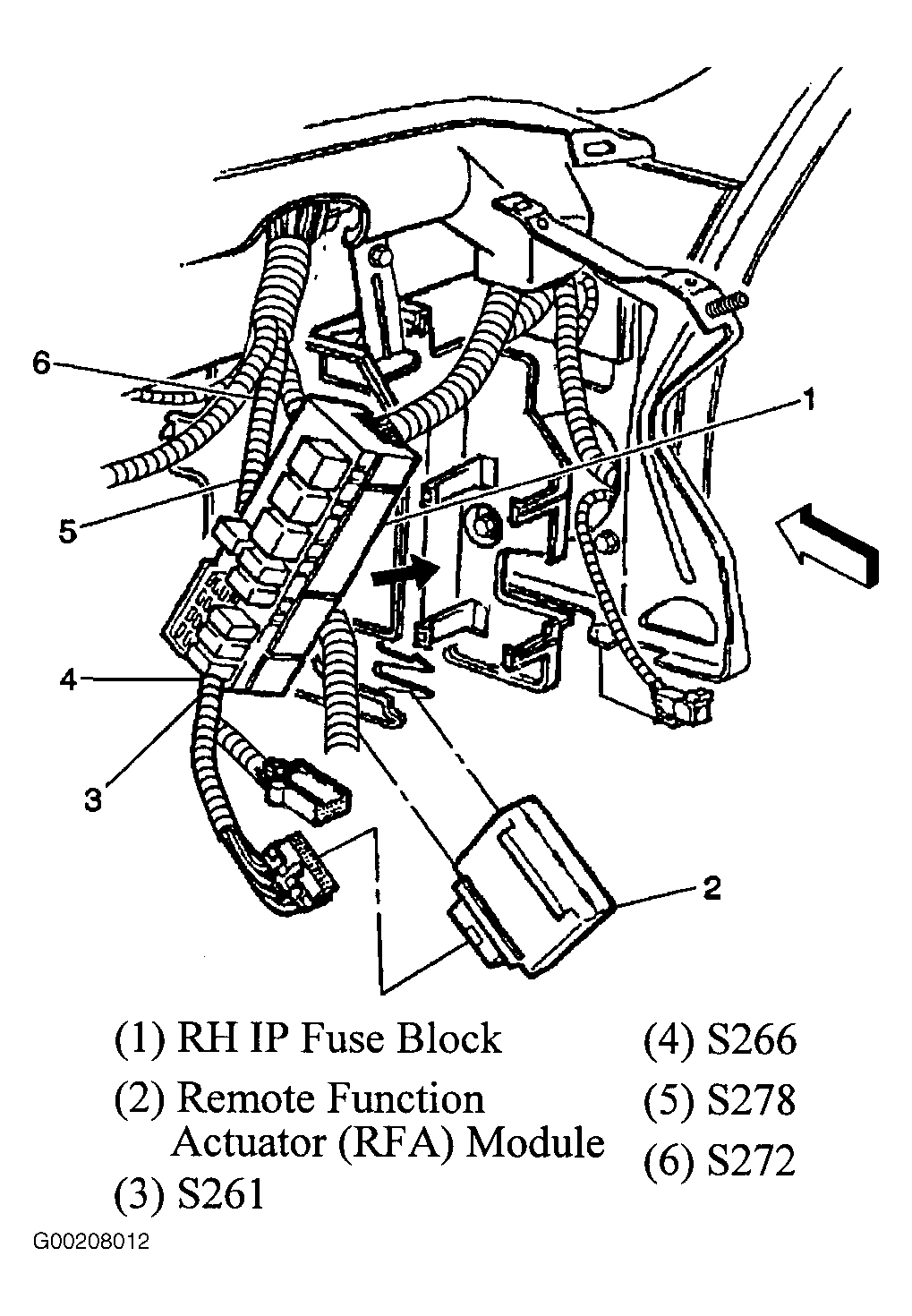

| Remote Function Actuator (RFA) Module | Under the right side of the I/P, near the rear of the I/P compartment. See Fig 5 . |
| Seat Front Vertical Position Sensor | At the left hand front of the passenger compartment, under the left front seat. |
| Seat Horizontal Position Sensor | In the left front of the passenger compartment, under the left front seat. |
| Seat Rear Vertical Position Sensor | At the left front of the passenger compartment, under the left front seat. |
| Seat Recline Position Sensor | In the left front of the passenger compartment, under the left front seat. |
| C314 (8 Cavities) | The body harness to the left seat, under the left front seat. |

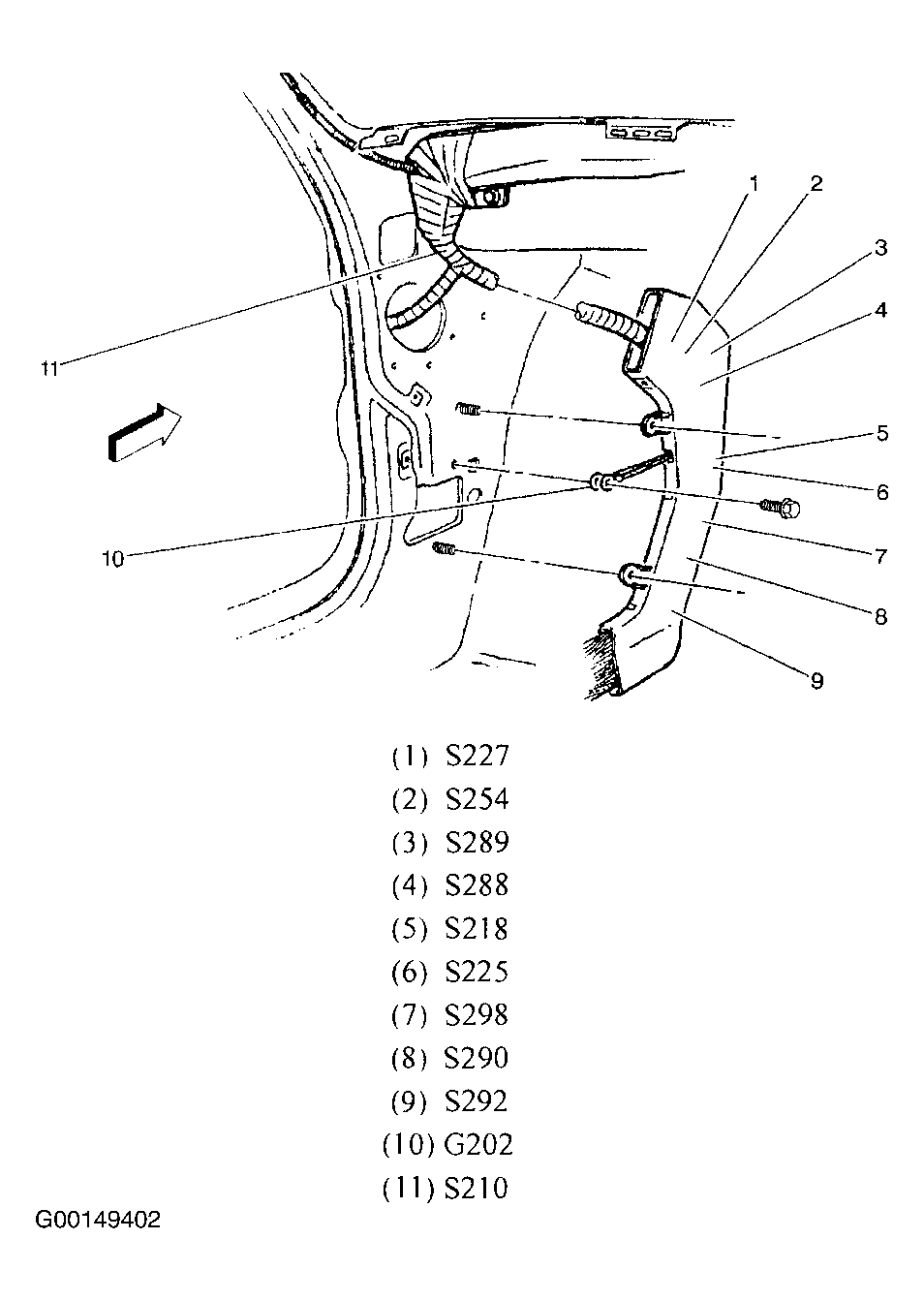

| G202 | In the left front of the passenger compartment, behind the left kick panel trim plate.See Fig 6 . |
| S218 | In the body harness, approximately 19.5 in. (49.5 cm) from the top edge of the left kick wall channel.See Fig 6 . |
| S225 | In the body harness, approximately 19.5 in. (49.5 cm) from the edge of the left kick wall channel.See Fig 6 . |
| S227 | In the body harness, approximately 6.7 in. (17 cm) from the top edge of the left kick wall channel.See Fig 6 . |
| S237 | In the body harness, approximately 8.7 in. (22 cm) from the center IP harness channel breakout. |
| S315 | In the body harness, approximately 3.9 in. (10 cm) from the electronic suspension module breakout. |
| S341 | In the left seat harness.See Fig 7 . |
