Connector Identification

For connector identification, see Fig 1 -Fig 4 .

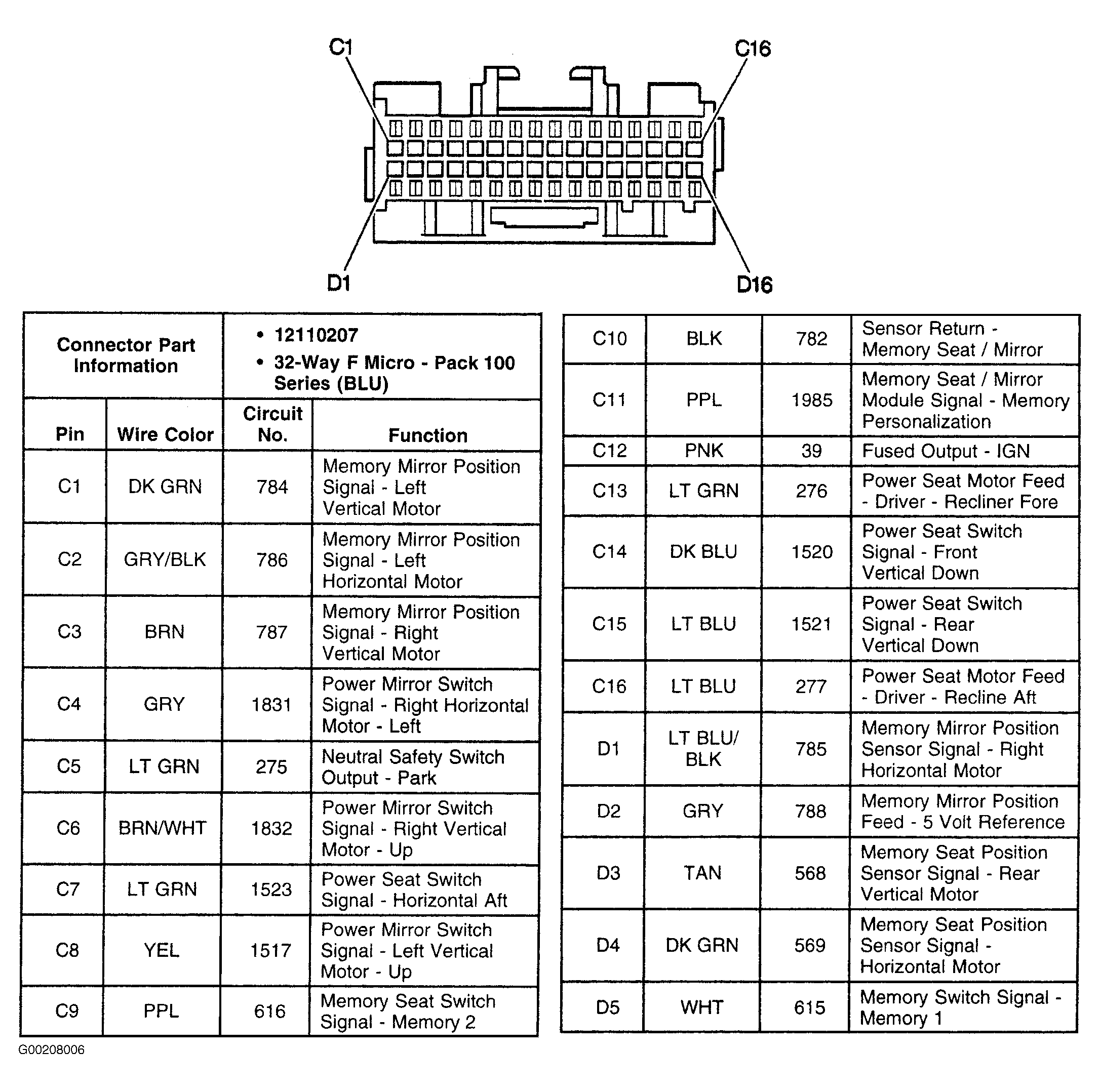

Fig 1: Identifying Memory Seat/Mirror Module C1

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Memory Seat/Mirror Module C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

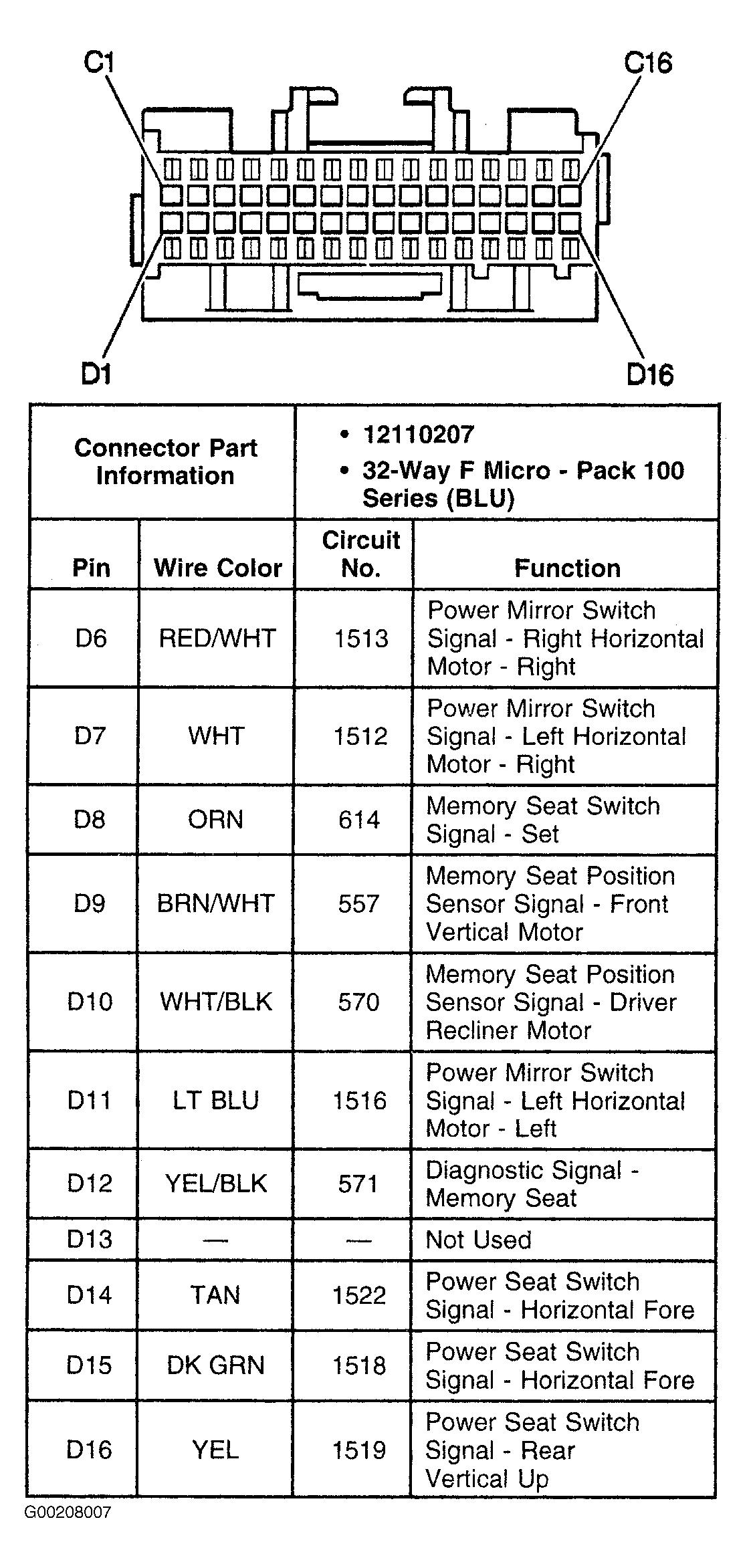

Fig 3: Identifying Memory Seat/Mirror Module C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Memory Seat/Mirror Module C3

Courtesy of GENERAL MOTORS CORP.
