Data Link Connector: Locations

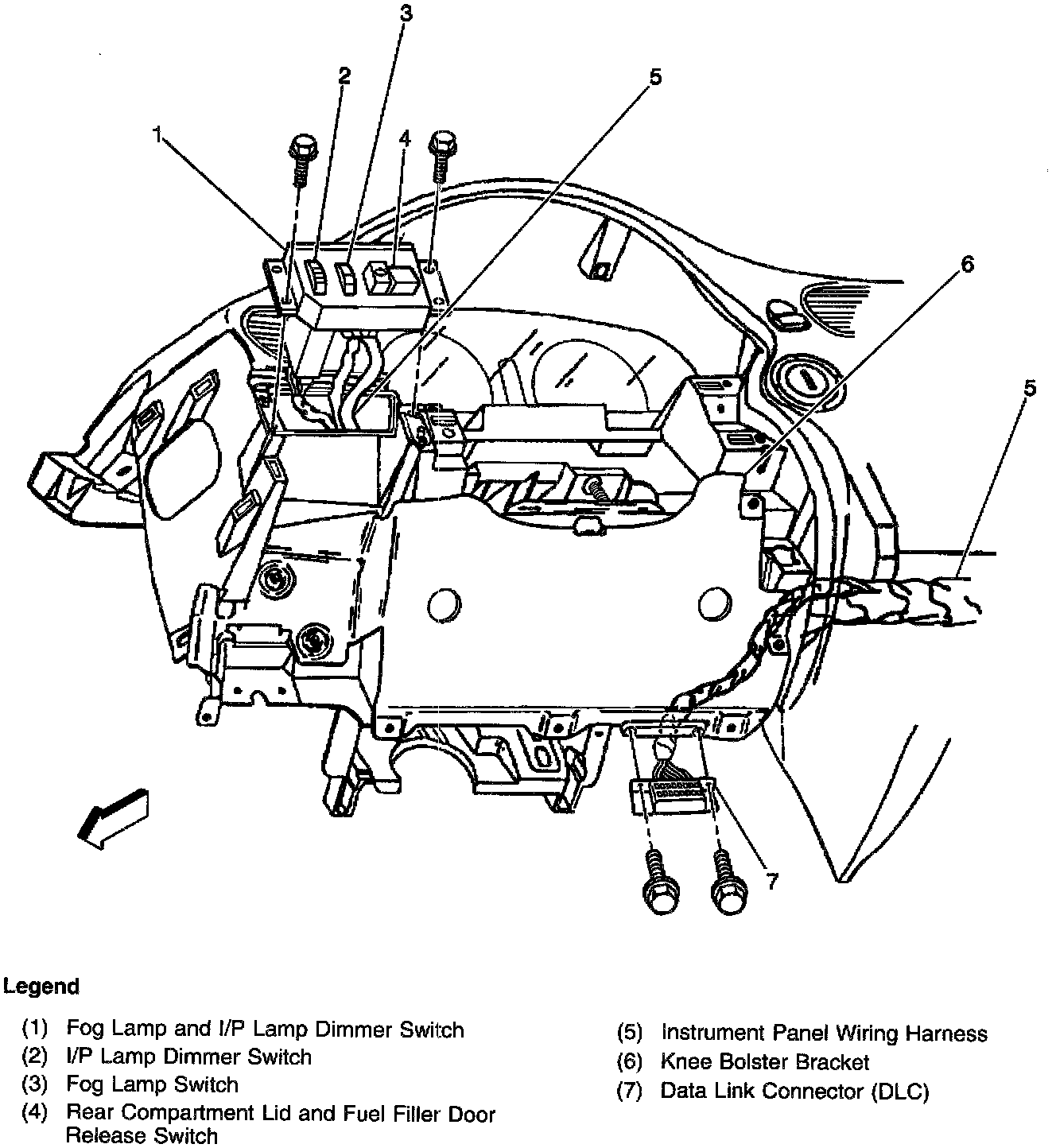

DLC, Fog Lamp SW, I/P Dimmer SW & Rear Compartment Lid And Fuel Filer Door Release SW:





Below the left side of the IP, right of the steering column
