Body Control Module (BCM) C2

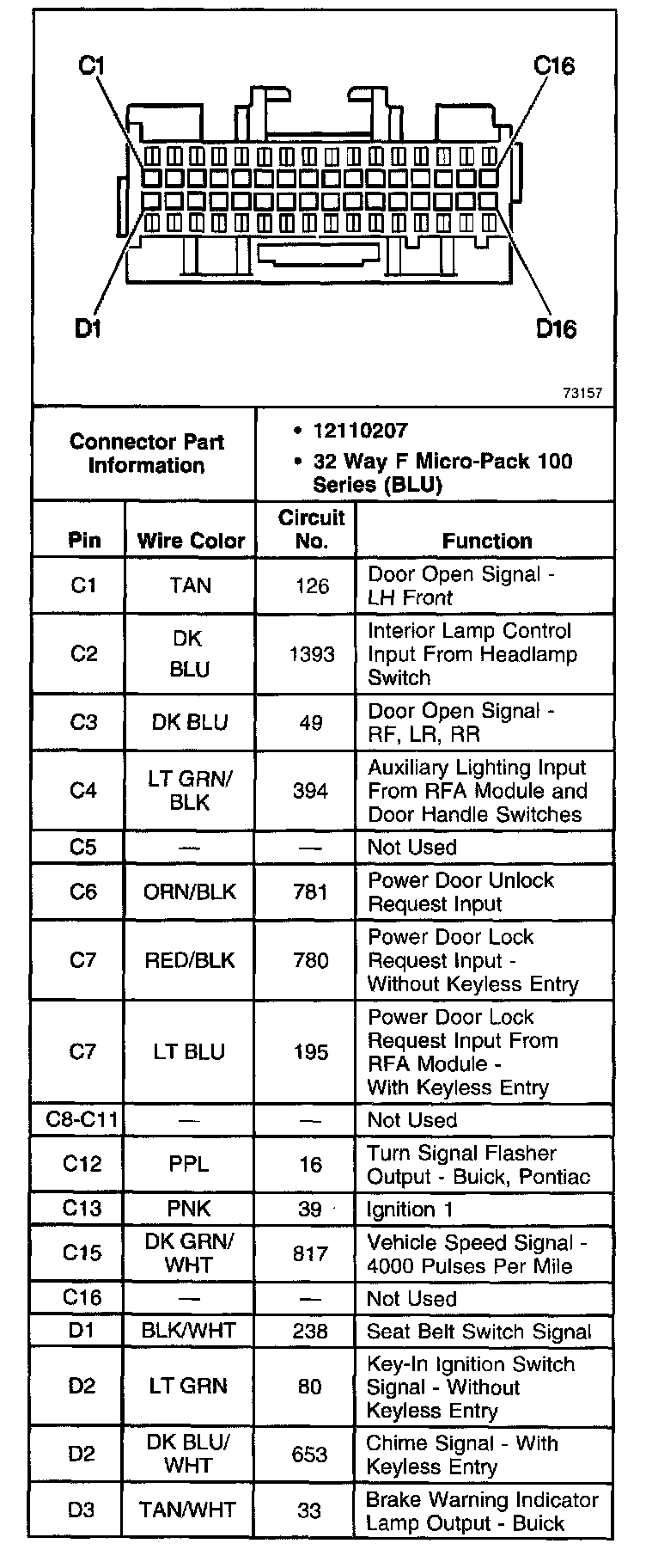

Body Control Module (MALL) Connector C2 (Part 1 Of 3):
Body Control Module (MALL) Connector C2 (Part 2 Of 3):

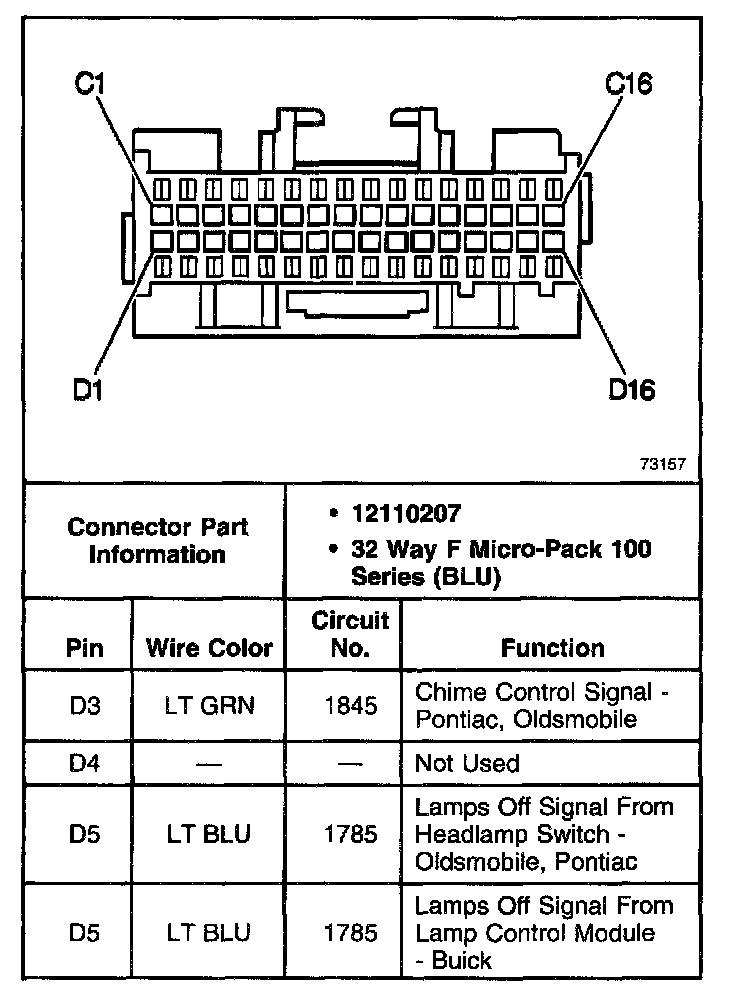

Body Control Module (MALL) Connector C2 (Part 3 Of 3):
