Memory Seat / Mirror Module C2

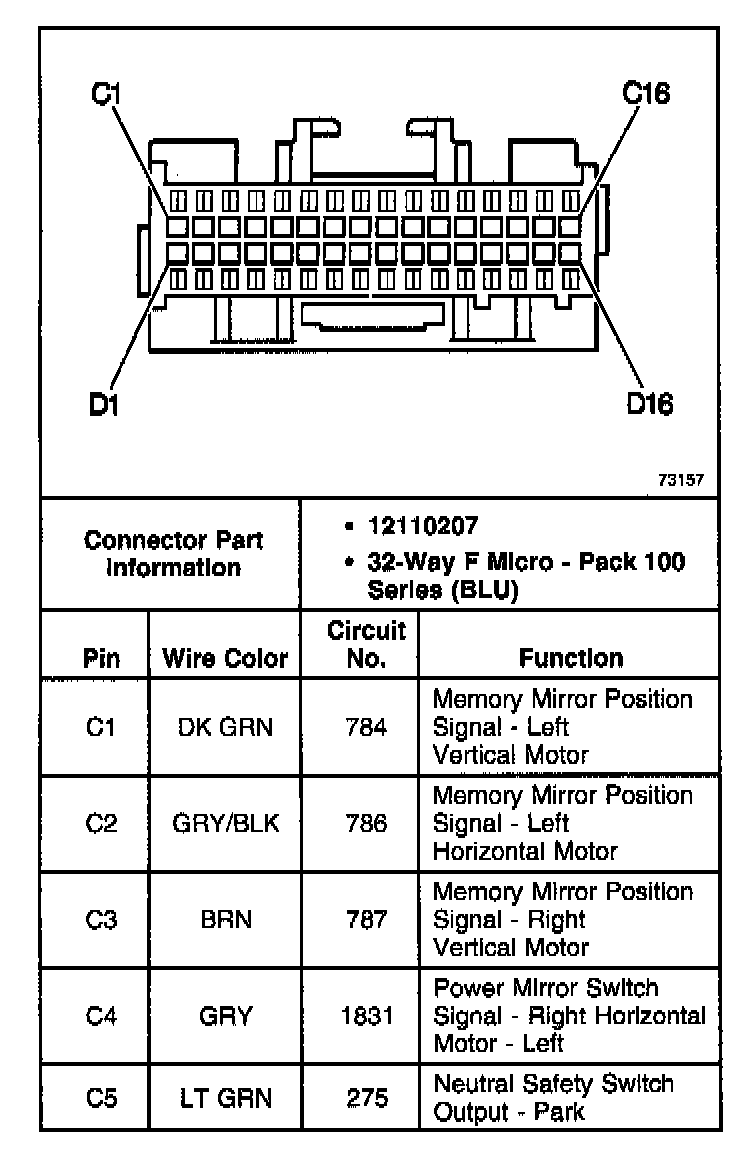

Memory Seat / Mirror Module C2 (Part 1 Of 3):

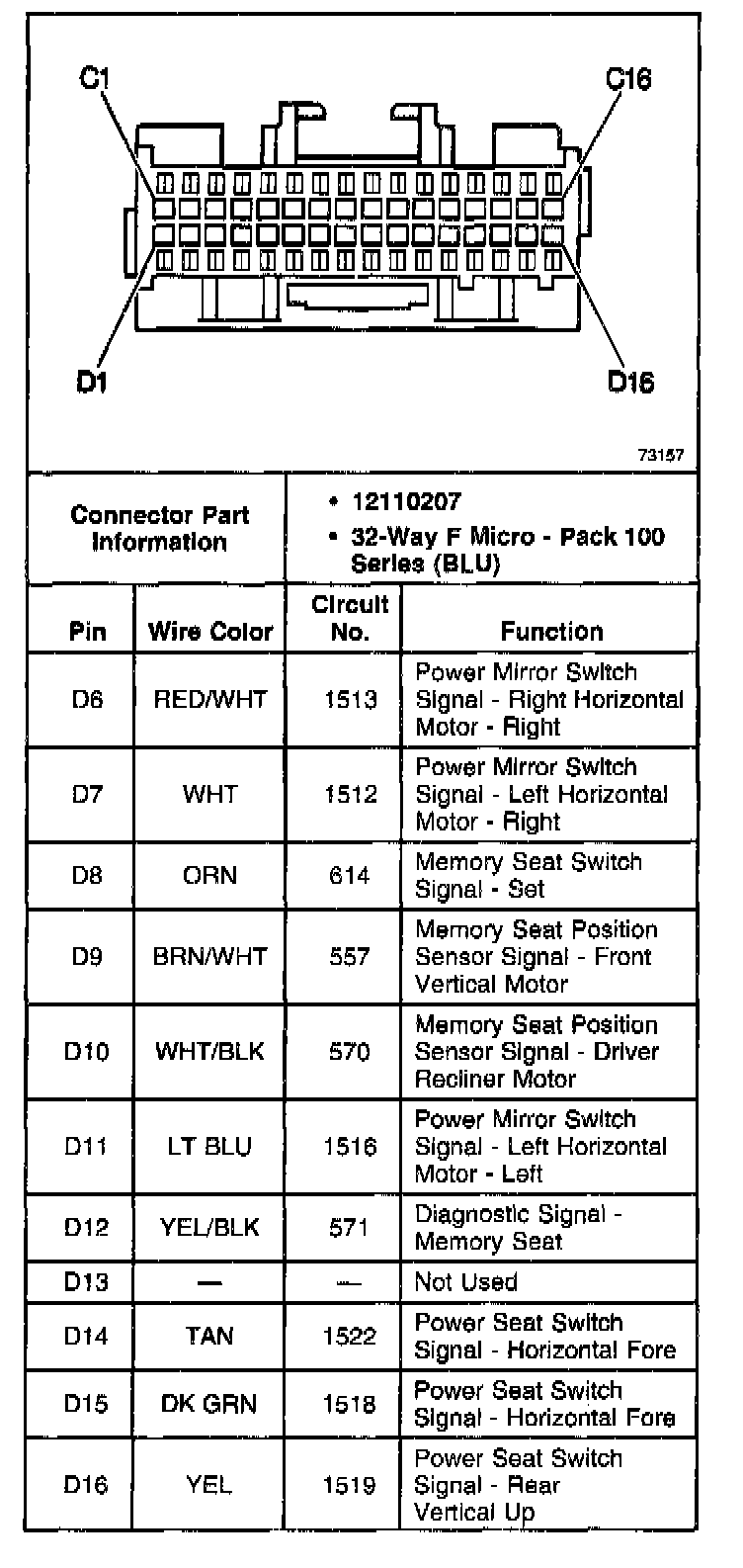

Memory Seat / Mirror Module C2 (Part 2 Of 3):

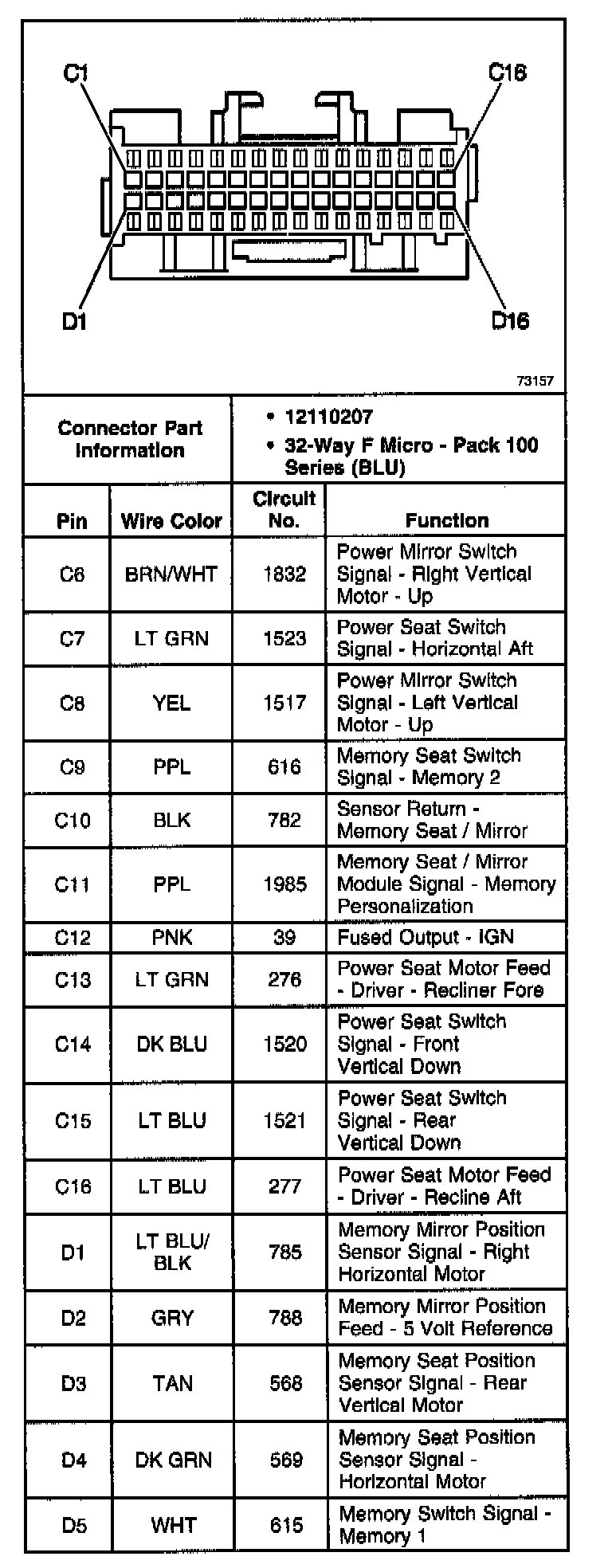

Memory Seat / Mirror Module C2 (Part 3 Of 3):
