Control Assembly Replacement - Passenger

REMOVAL PROCEDURE
1. Remove the door handle insert.
2. Remove the passenger climate control/power window switch plate.
3. Disconnect the electrical connector.

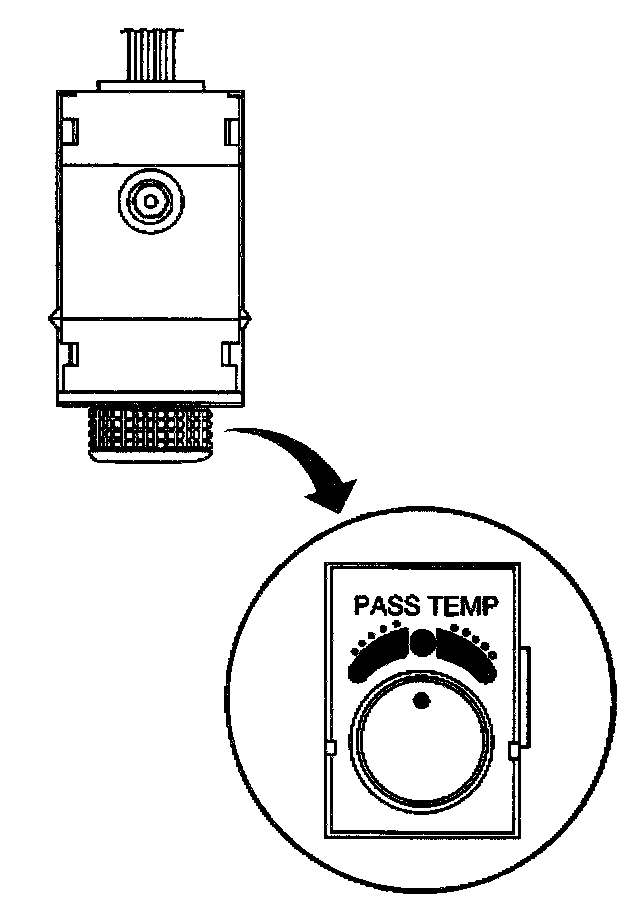

4. Remove the passenger climate control from the switch plate.

INSTALLATION PROCEDURE
1. Install the passenger climate control to the switch plate.
2. Connect the electrical connector.
3. Install the switch plate to the armrest.
4. Install the door handle insert.
