Control Assembly Replacement

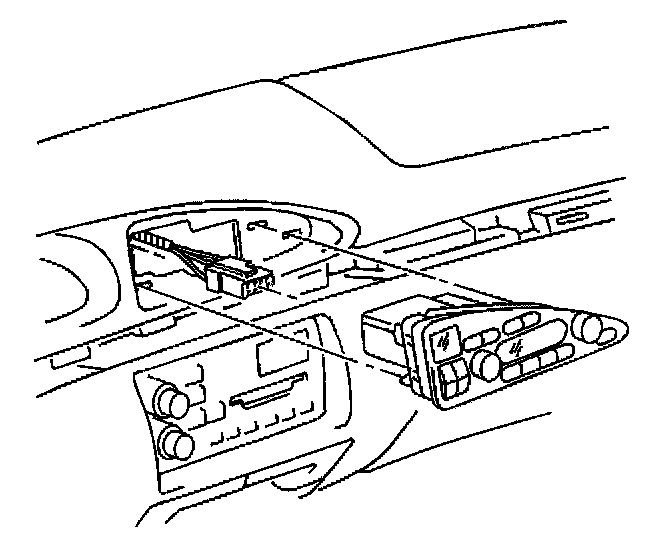

REMOVAL PROCEDURE




1. Remove the I/P cluster trim plate.
2. Gently pry the assembly out from the instrument panel.

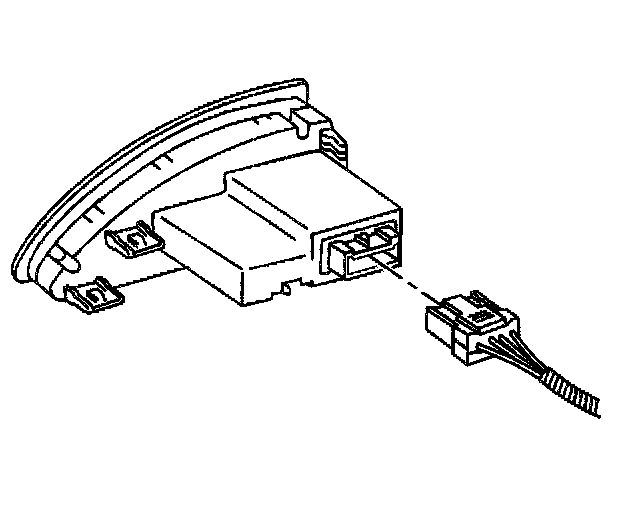

3. Disconnect the electrical connector.
4. Remove the HVAC control assembly.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the HVAC control assembly.




2. Install the HVAC control assembly into the instrument panel by snapping into place.
3. Install the I/P cluster trim plate.
