Ignition Control (IC Module)

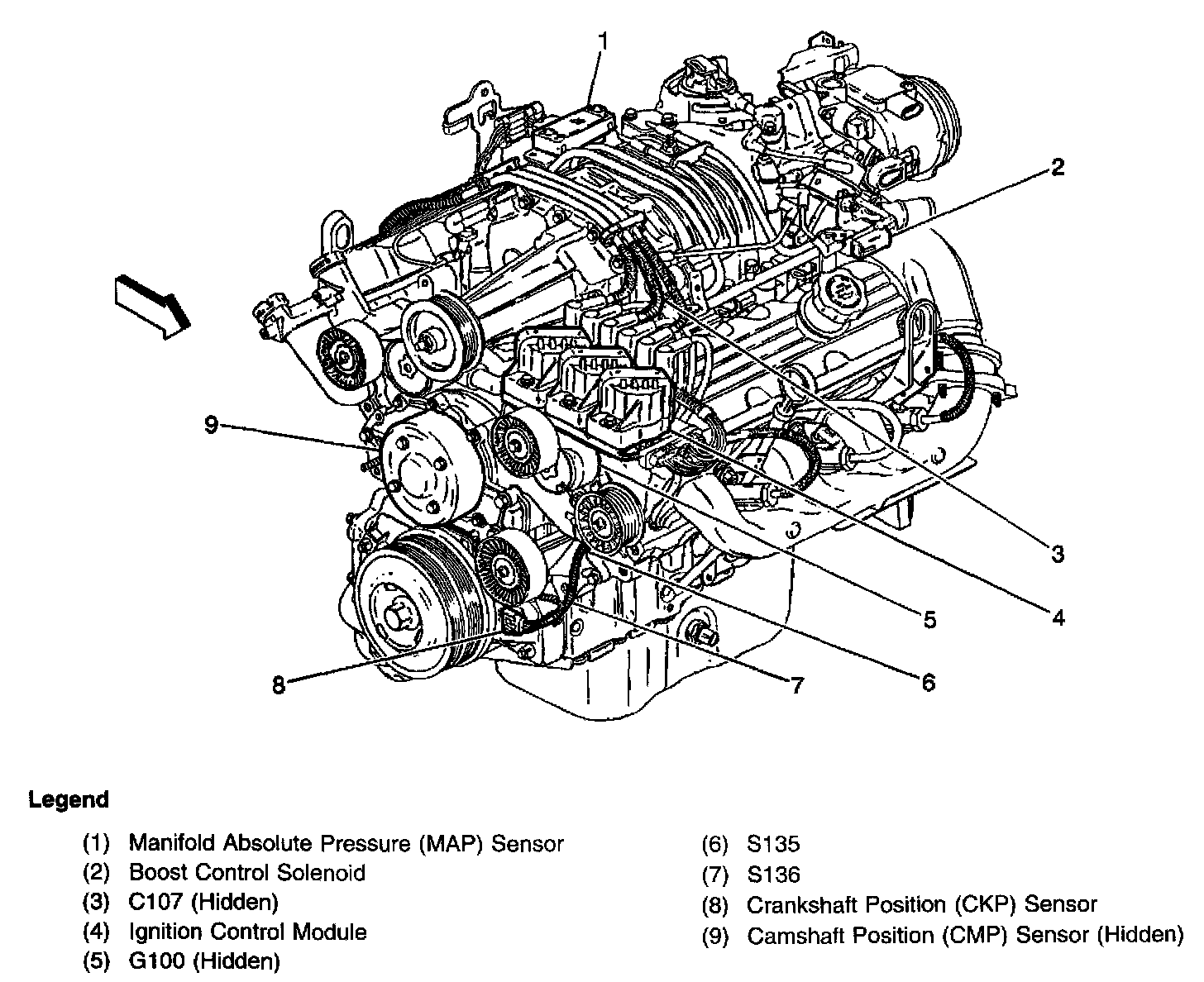

Engine Right Side (L36):

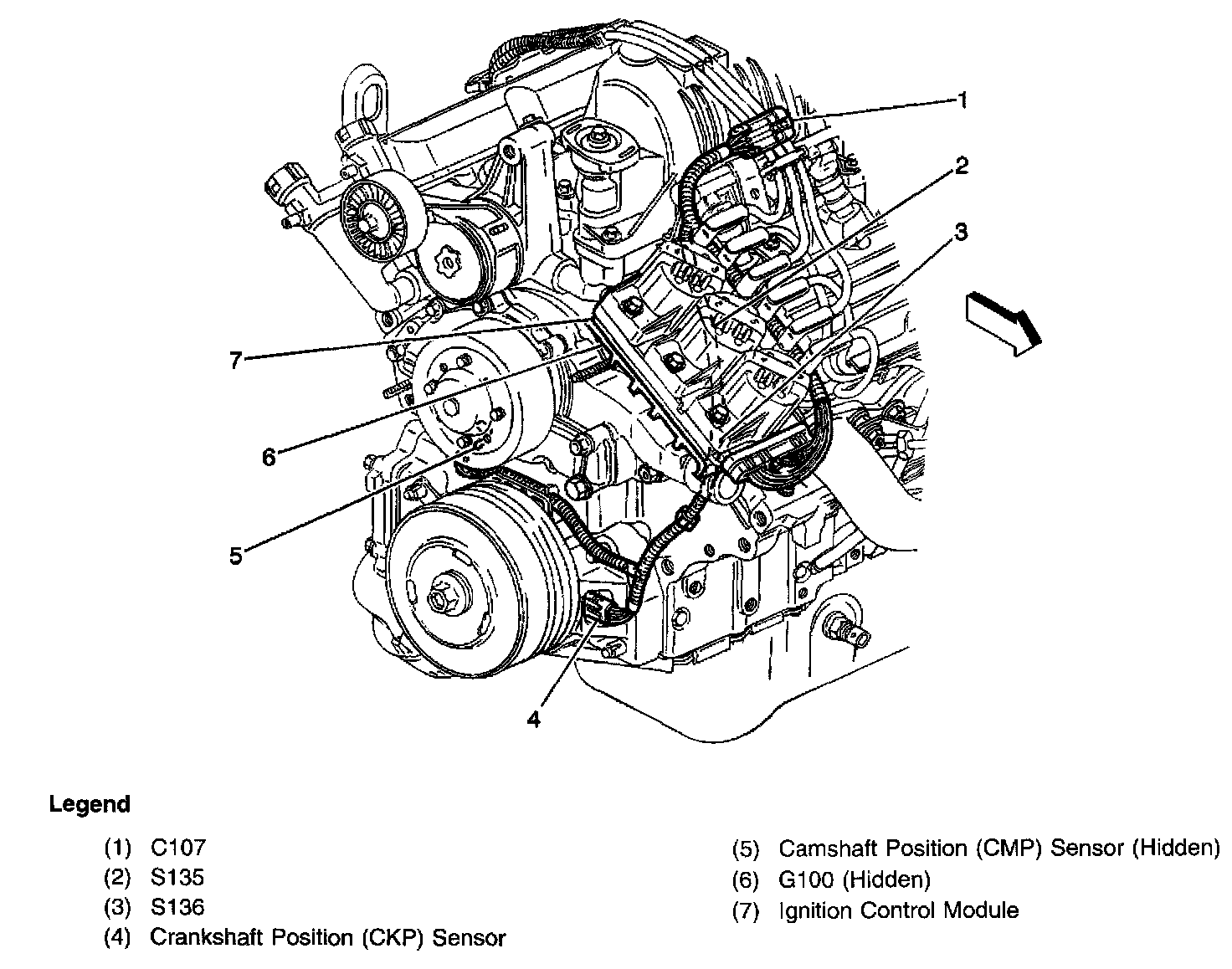

Engine, Right Side (L67):





On the right top of the engine, under the ignition coils
