Oil Pressure Sensor: Locations

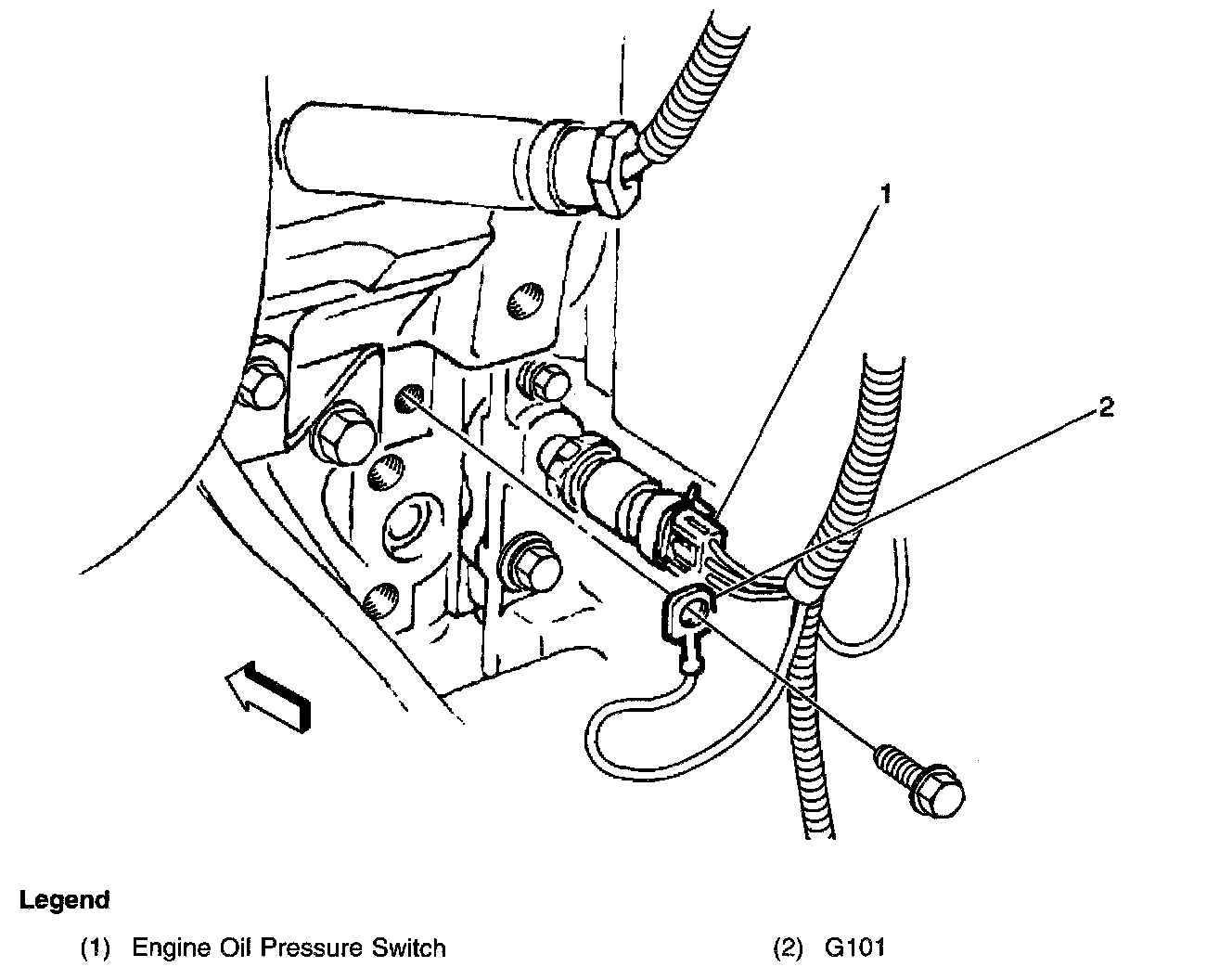

Left Hand Rear Of The Engine:

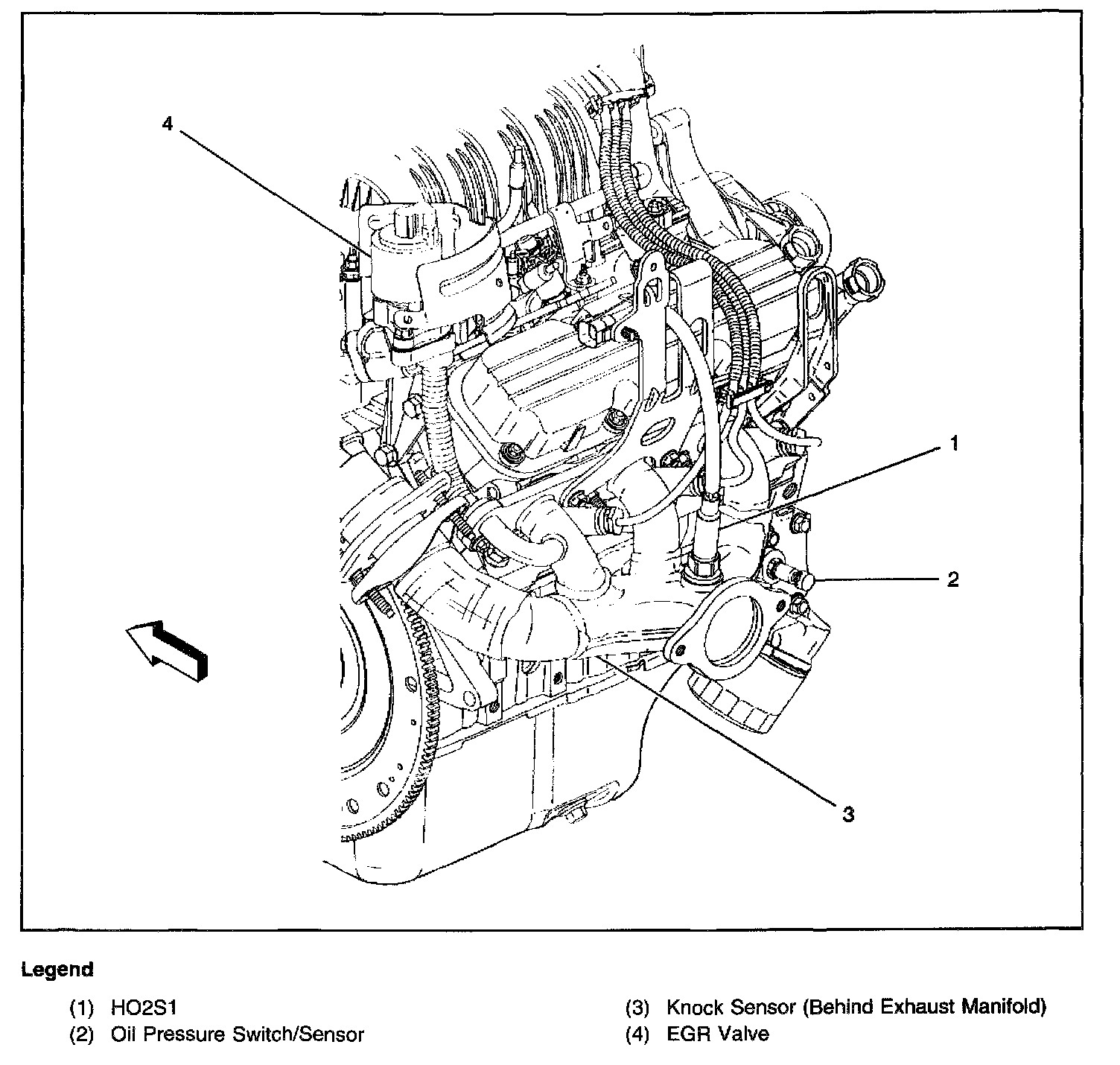

Rear View:





On the right rear corner of the engine, below the power steering pump
