Power Door Lock Control Module: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the trim panel.
3. Remove the water deflector.

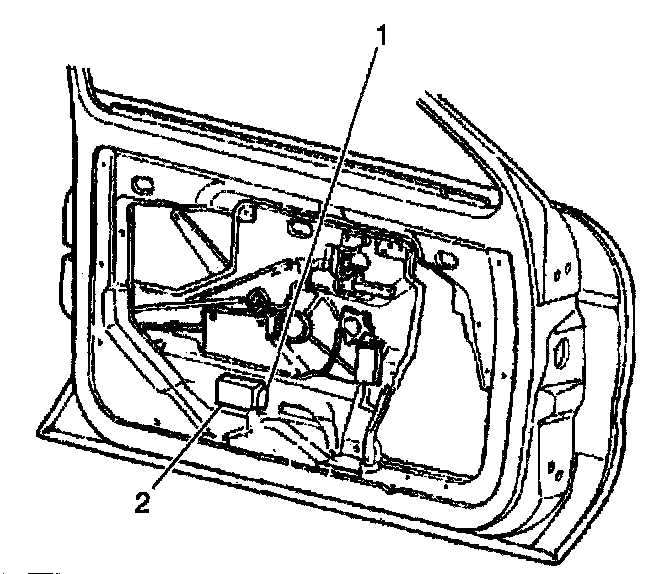

4. Disconnect the electrical connector (1).
5. Insert a thin flat-bladed tool between the express down module and the retaining clip.
6. Remove the express down module (2).

INSTALLATION PROCEDURE
1. Install the express down module (2).
2. Connect the electrical connector (1).
3. Install the water deflector.
4. Install the trim panel.
5. Connect the negative battery cable.
