Ignition Control Module and Coils

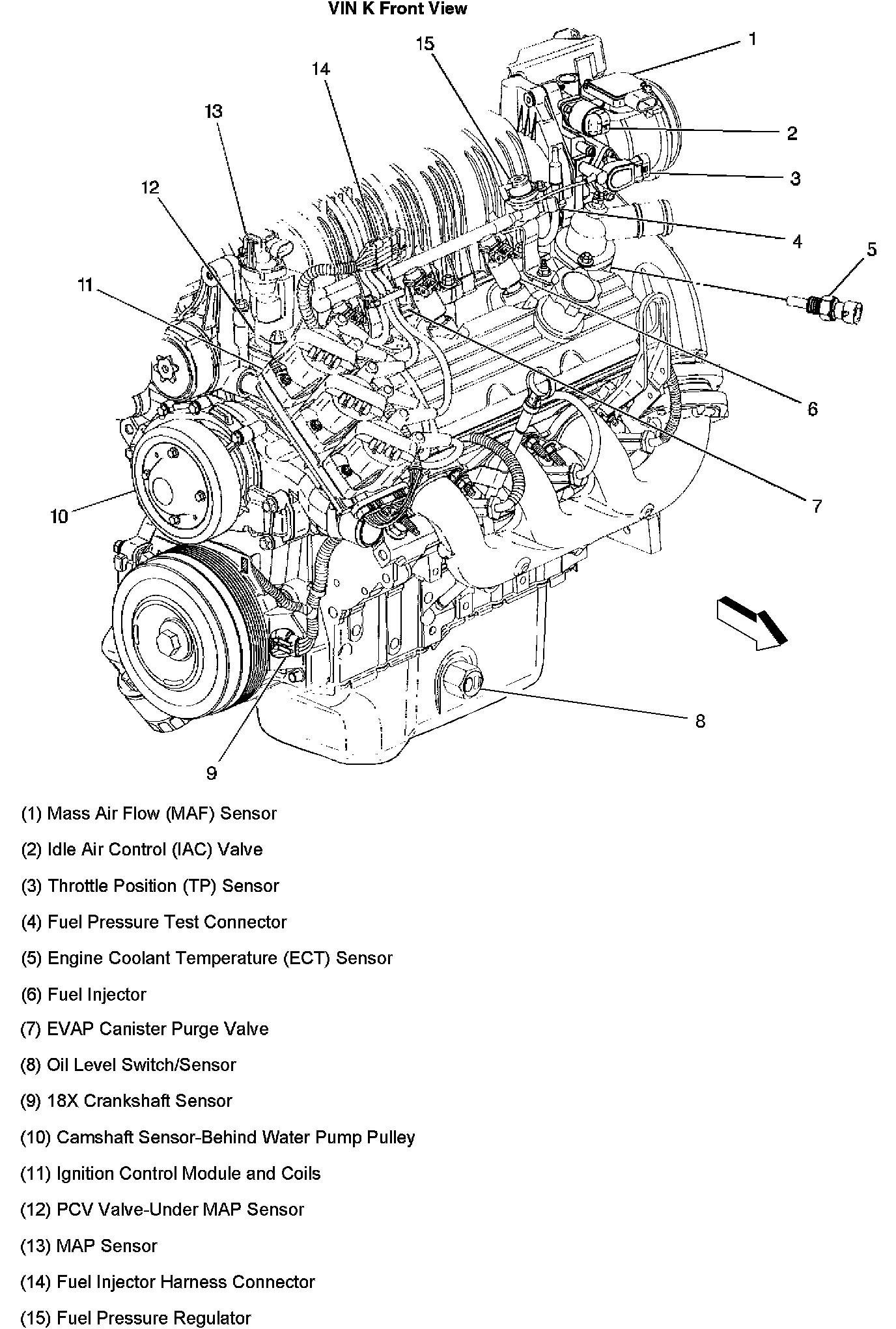

Front View:

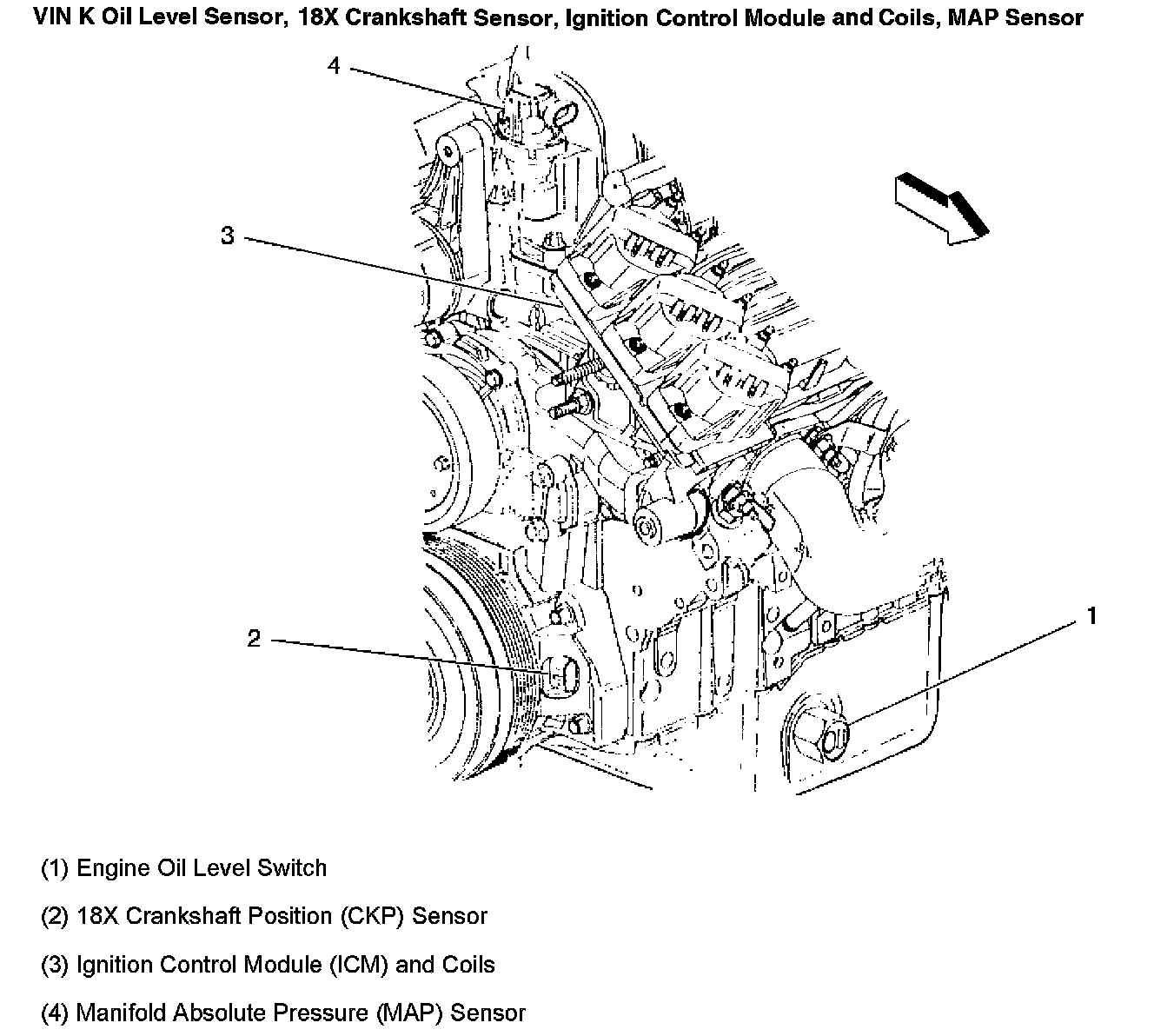

Oil Level Sensor, 18X Crankshaft Sensor, Ignition Control Module And Coils, MAP Sensor:
