Power Door Lock Relays, Remote Control Door Lock Receiver

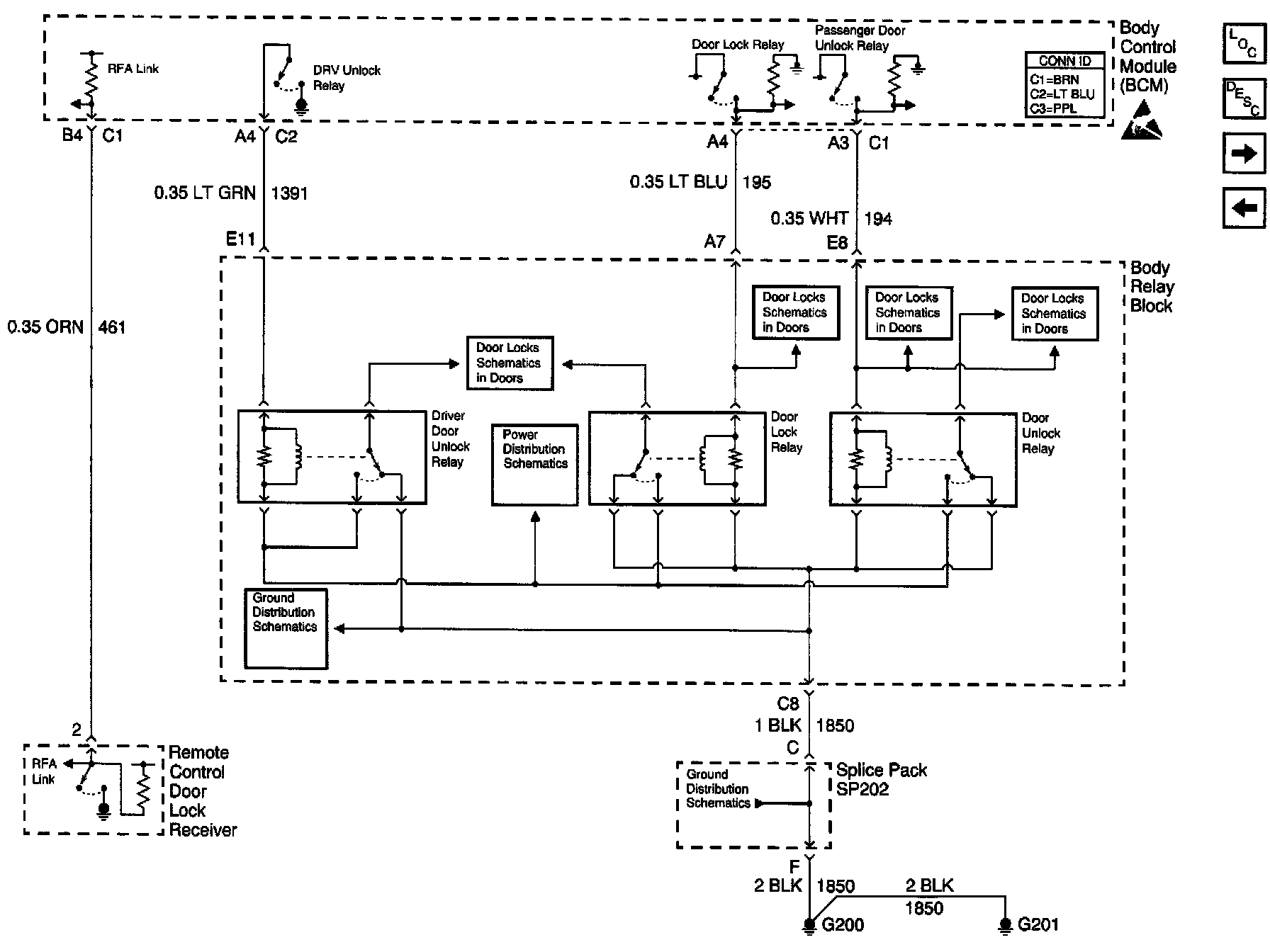

Body Control Module Schematics: Power Door Lock Relays, Remote Control Door Lock Receiver:
