Seat Belt Switch, Headlamp Ambient Light Sensor And PCM/VCM

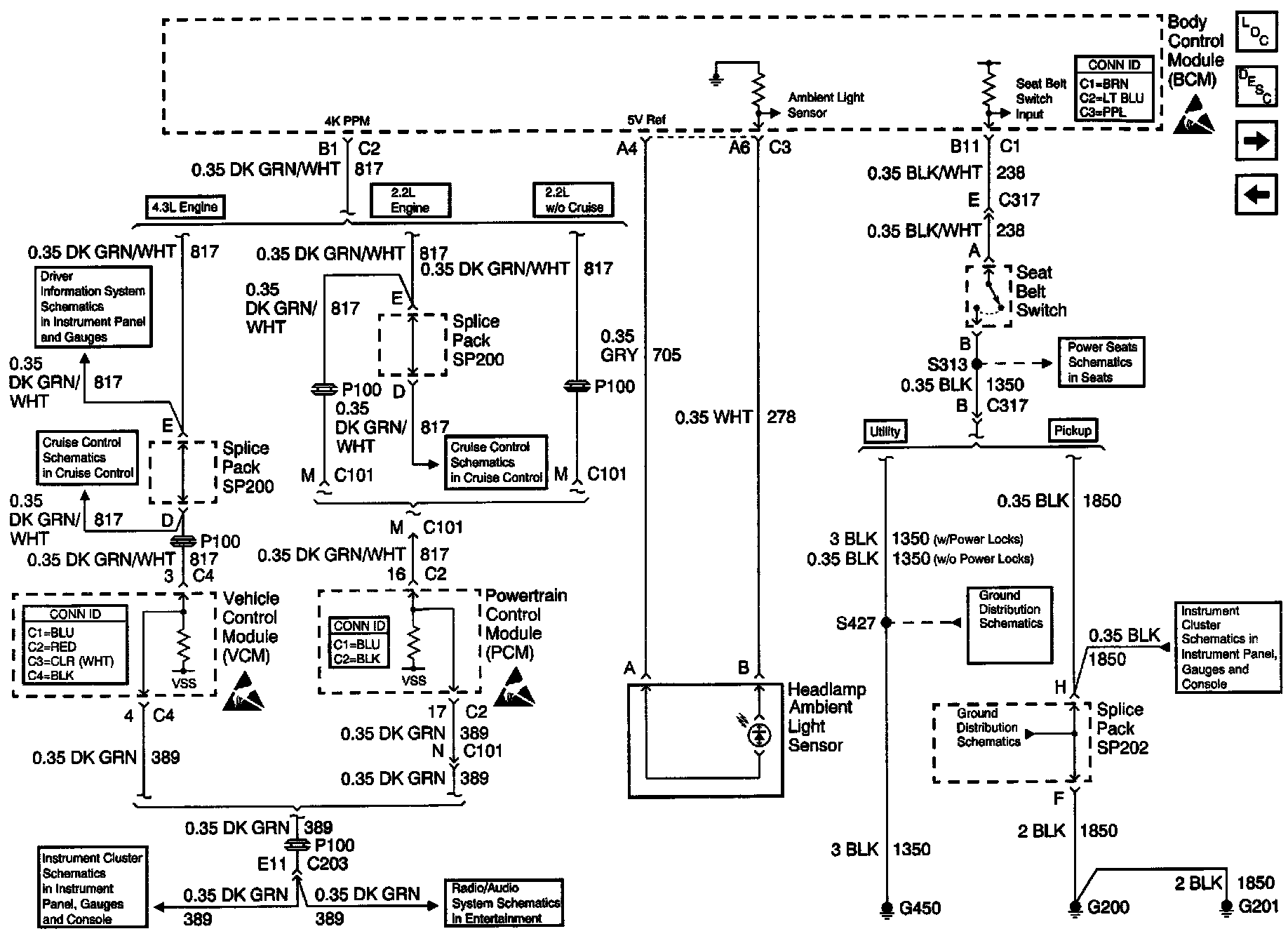

Body Control Module Schematics: Seat Belt Switch, Headlamp Ambient Light Sensor And PCM/VCM:
