NOTE:

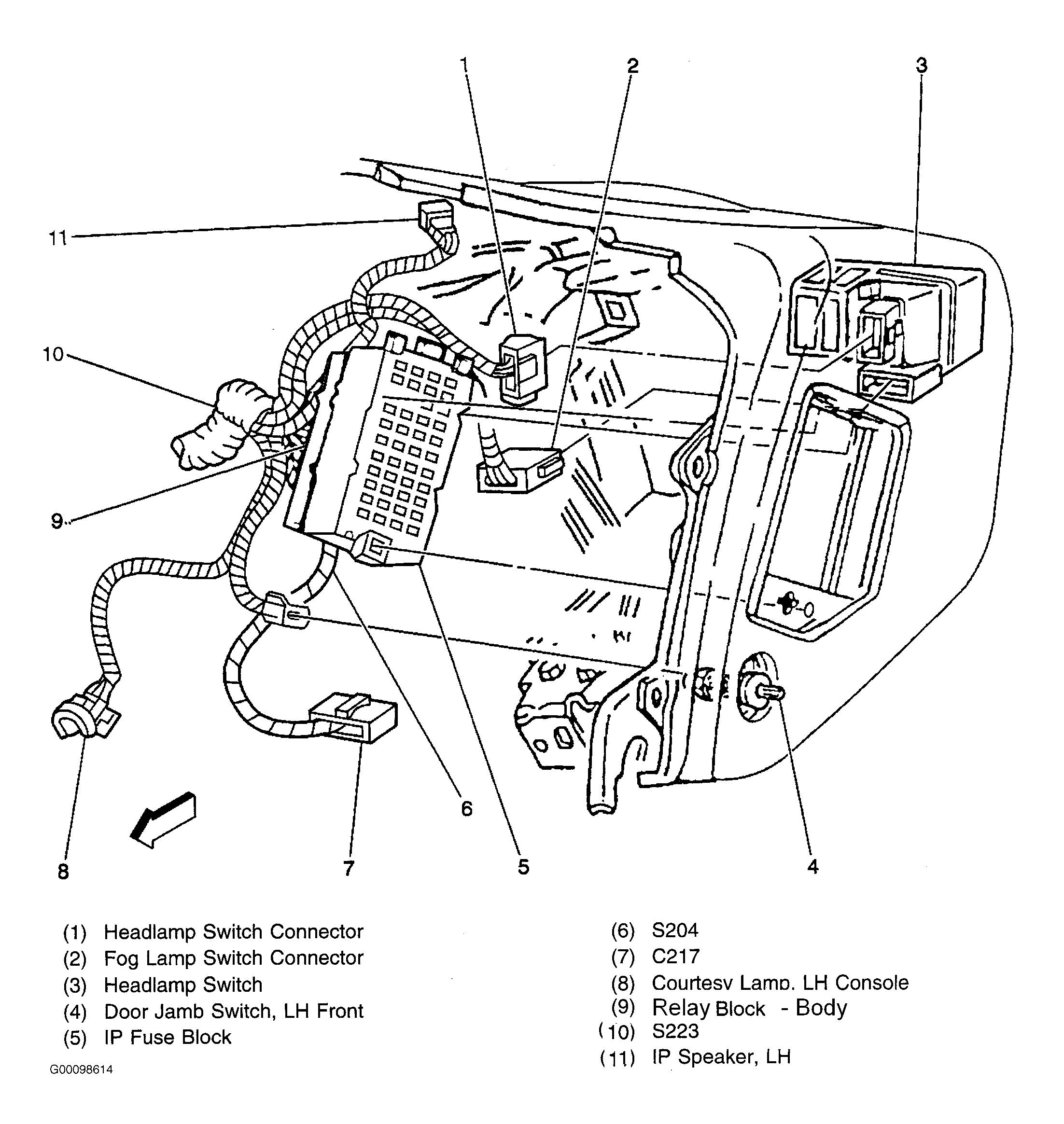

Body relay block is attached to back of instrument panel fuse block. Instrument panel fuse block is located behind driver's side of instrument panel. See Figure
.

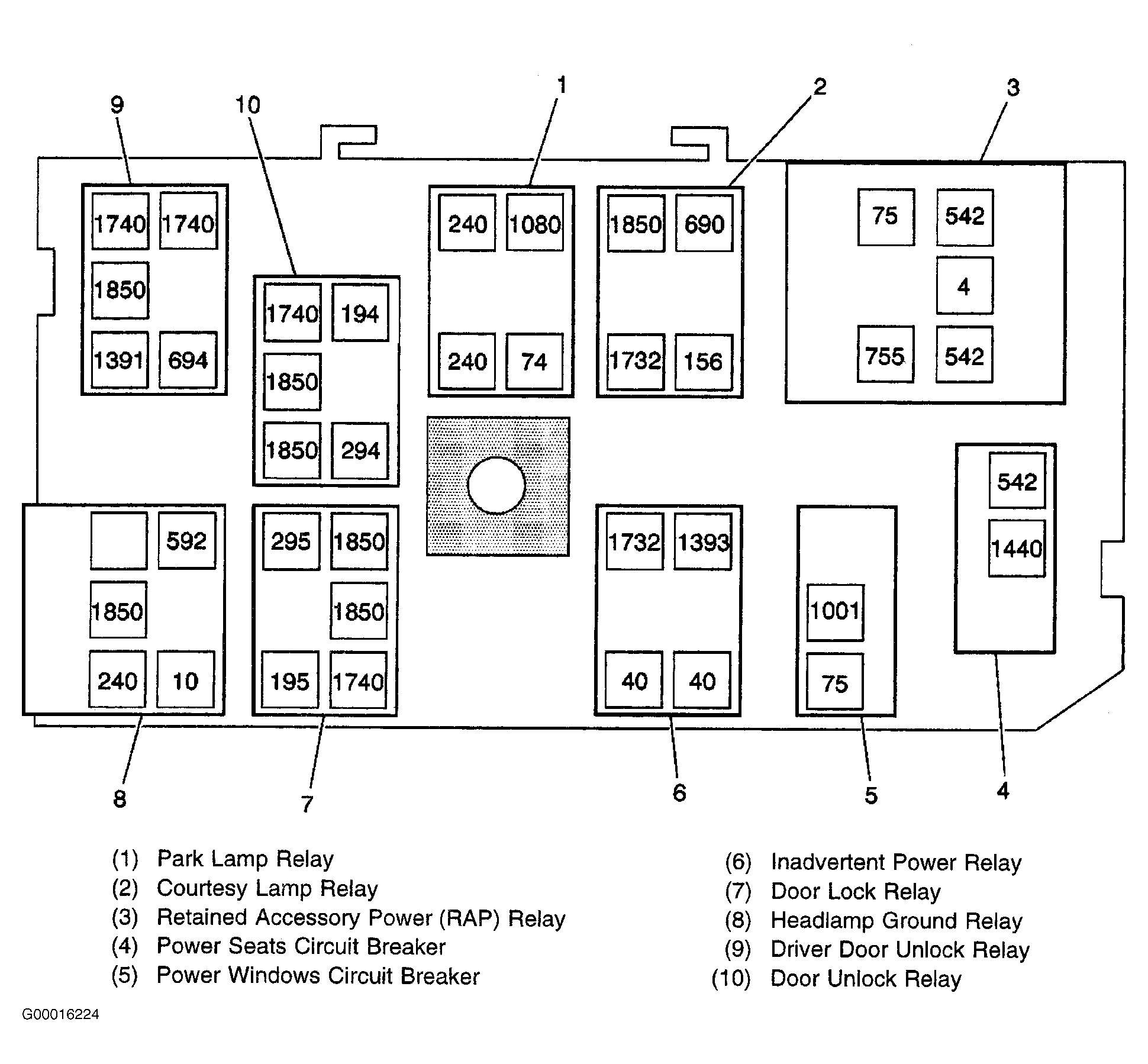

Fig 1: Identifying Body Relay Block Components (Except Envoy)
Courtesy of GENERAL MOTORS CORP.

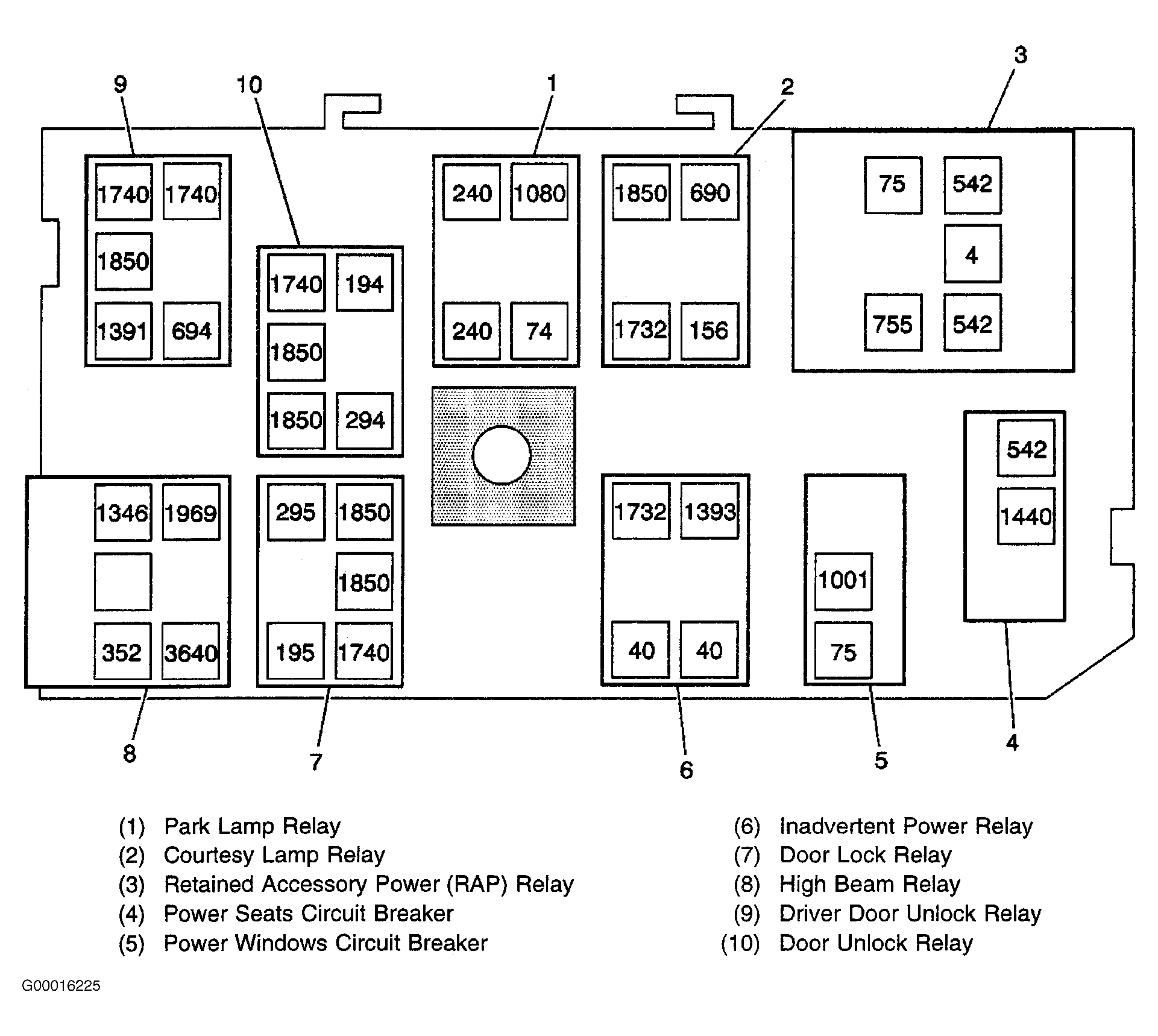

Fig 2: Identifying Body Relay Block Components (Envoy)
