Vehicle Speed Sensor: Installation

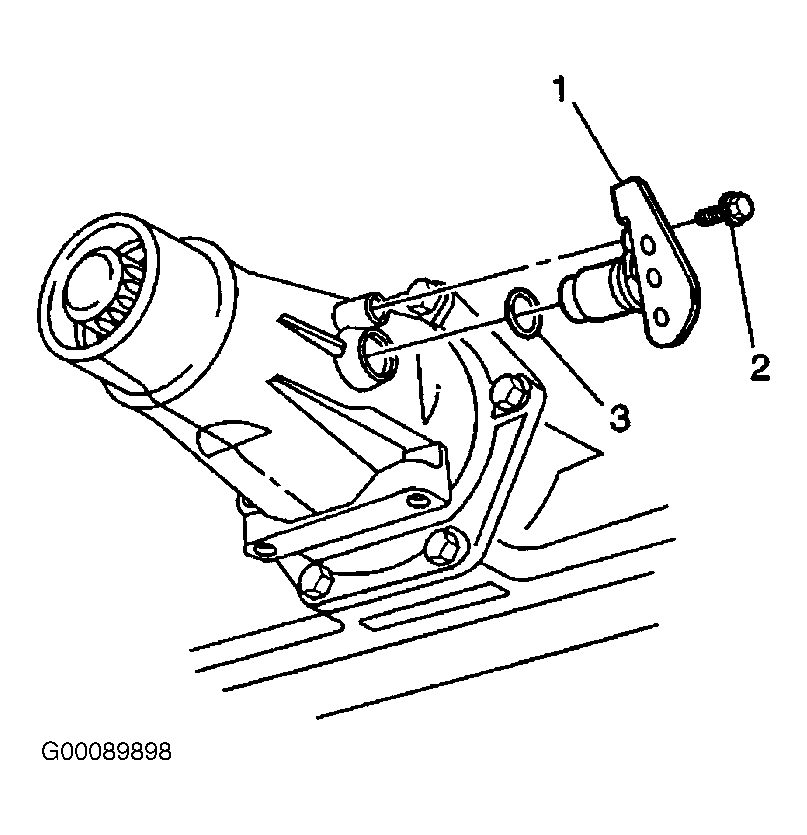

Install the new speed sensor and O-ring seal. See Fig 1 . Coat the seal with a thin film of ATF. Install and tighten the bolt to specification. See TORQUE SPECIFICATIONS . Install the harness connector. Lower the vehicle. Fill transmission with appropriate fluid to proper level. See LUBRICATION .
