Cooling System Connector End Views

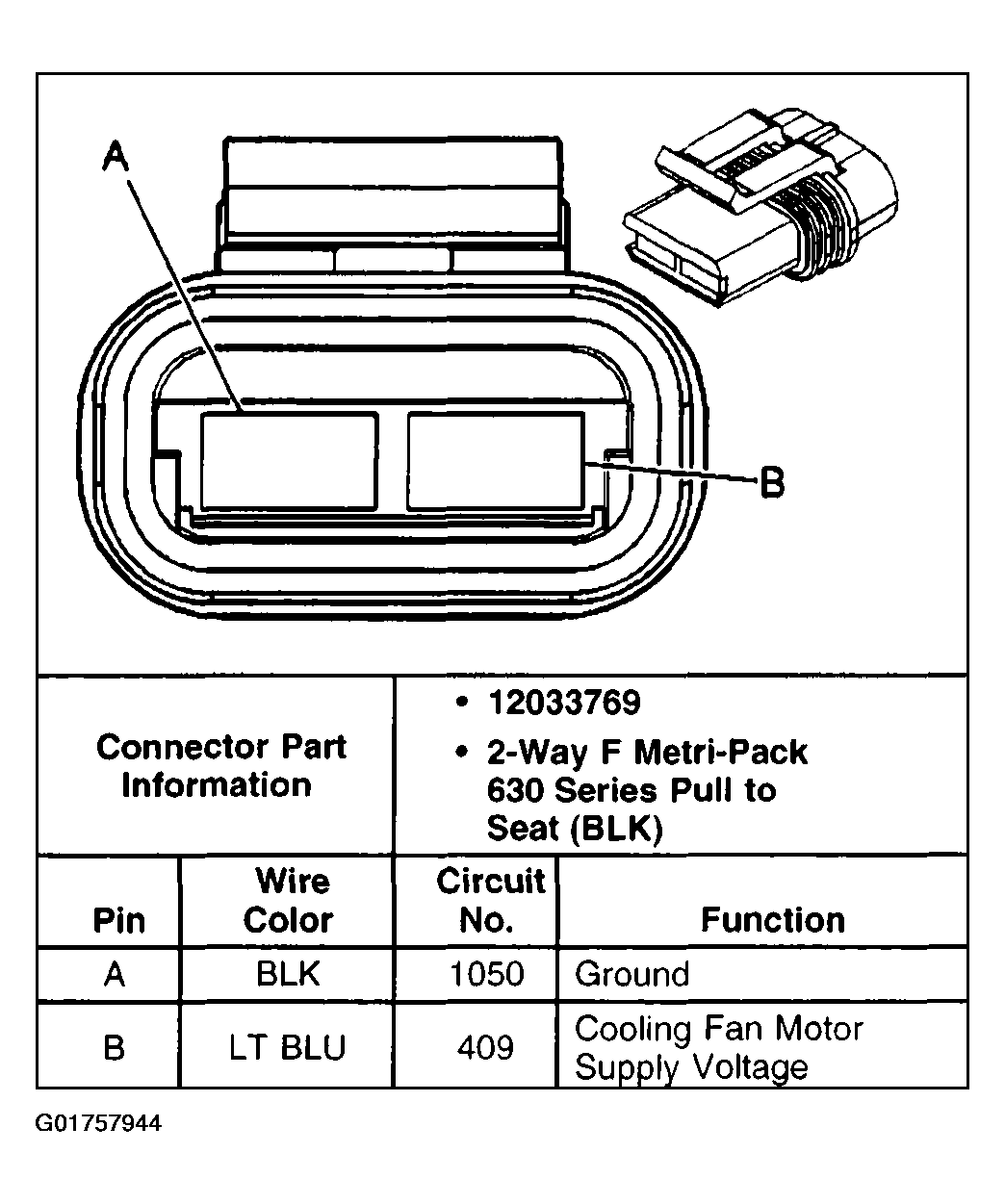

Fig 1: Coolant Fan - Left
G01757944Courtesy of GENERAL MOTORS CORP.

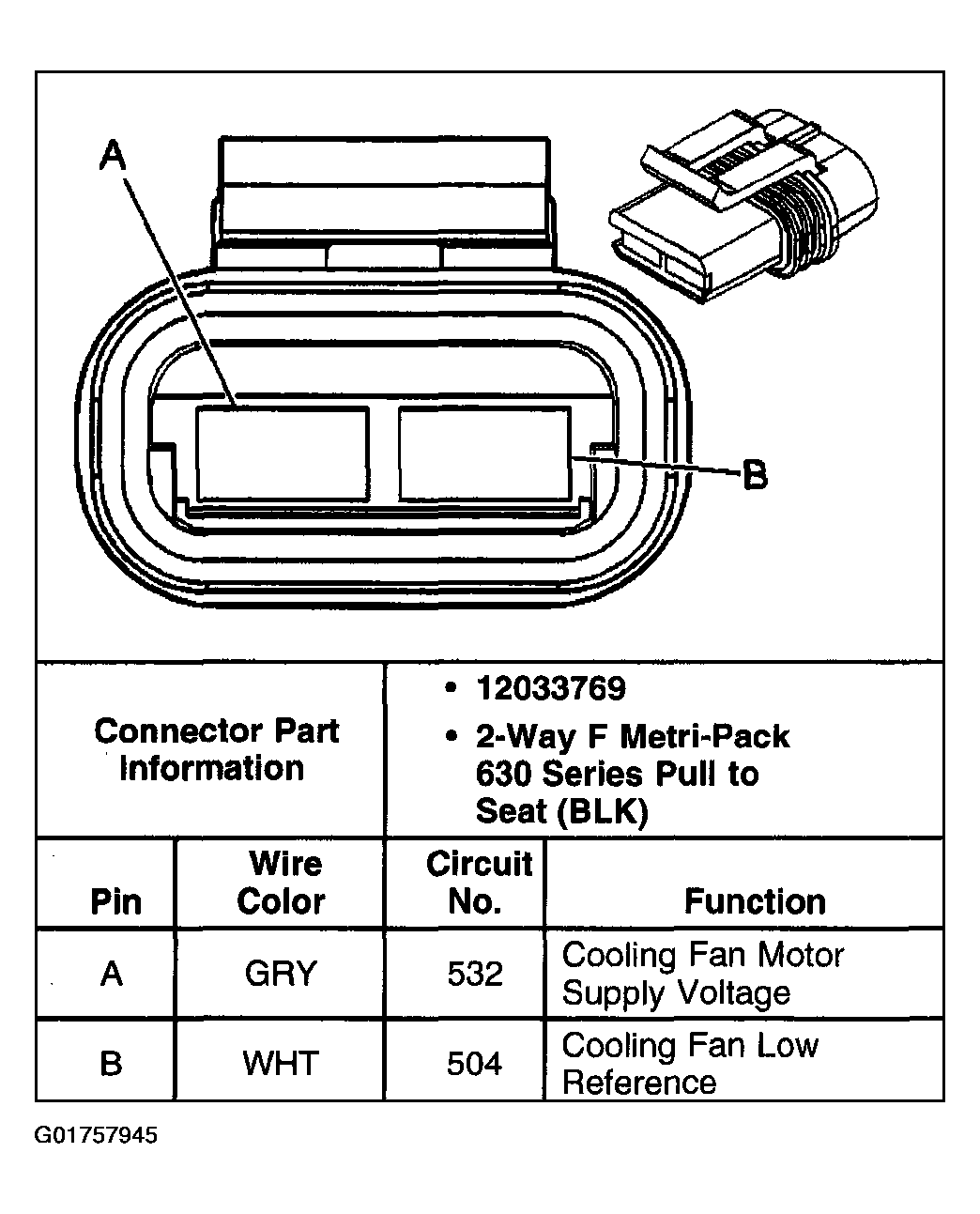

Fig 2: Coolant Fan - Right
G01757945Courtesy of GENERAL MOTORS CORP.
Fig 3: Coolant Level Switch
G01757946Courtesy of GENERAL MOTORS CORP.
