Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat to the full-up position.
  2. Remove the bolts that secure the front seat frame to the floor.
  3. Rotate the seat forward to access the heater module.
  4. Disconnect the seat electrical harness connector.
  5. Disconnect the heater control module from the seat frame by sliding the control module toward the front of the seat.
  6. Disconnect the electrical harness connector (1) from the heater module (2).

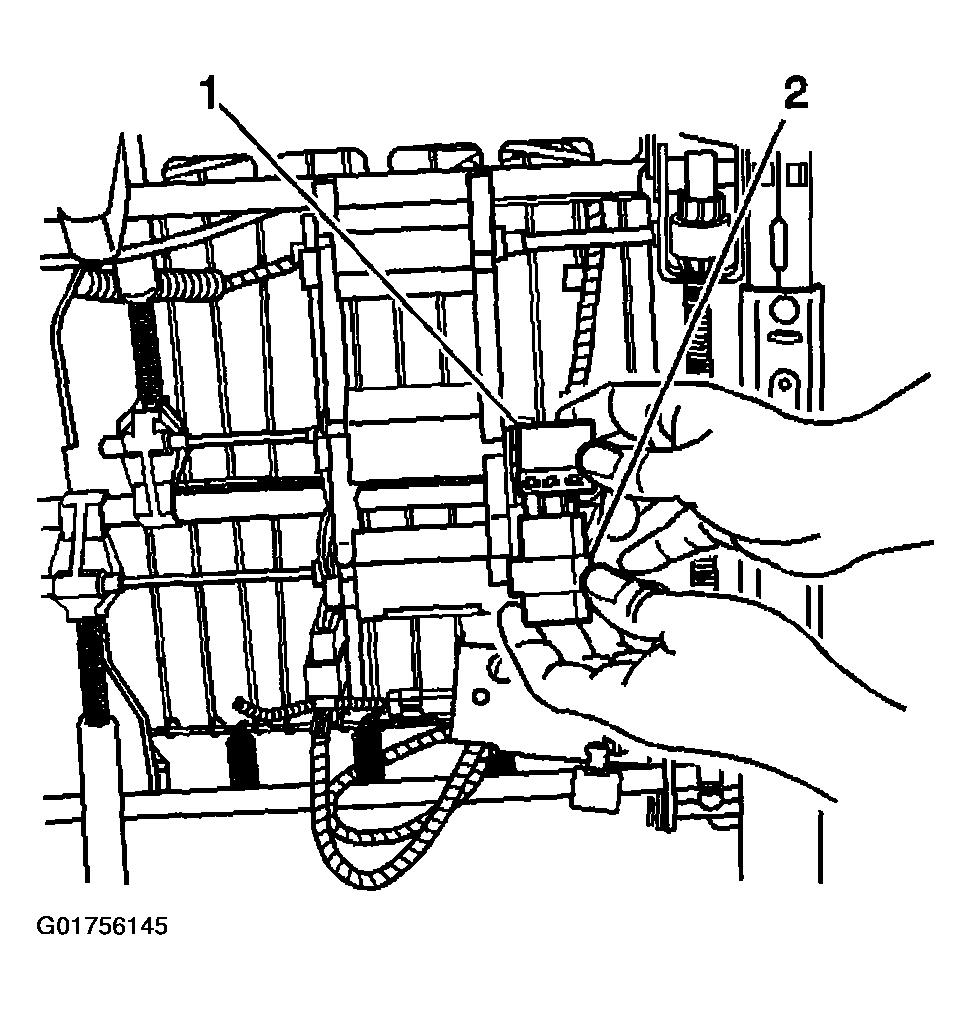

    7. Fig 1: Identifying Heater Module Electrical Harness Connector
    G01756145Courtesy of GENERAL MOTORS CORP.
  7. Remove the heater module from the front seat.
