Data Link Communications Connector End Views
WARNING:
This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

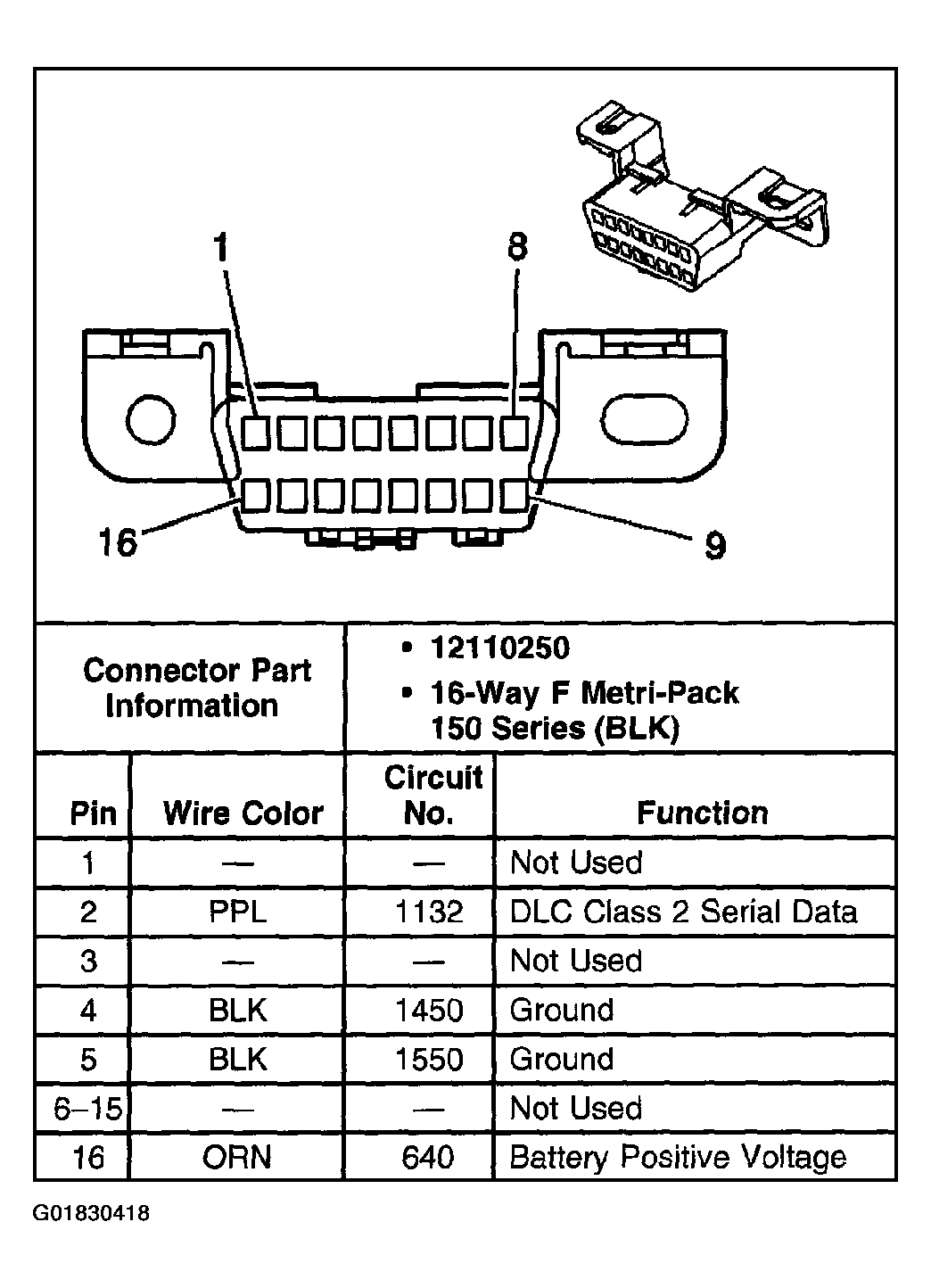

Fig 1: Data Link Connector End View (DLC)
Courtesy of GENERAL MOTORS CORP.

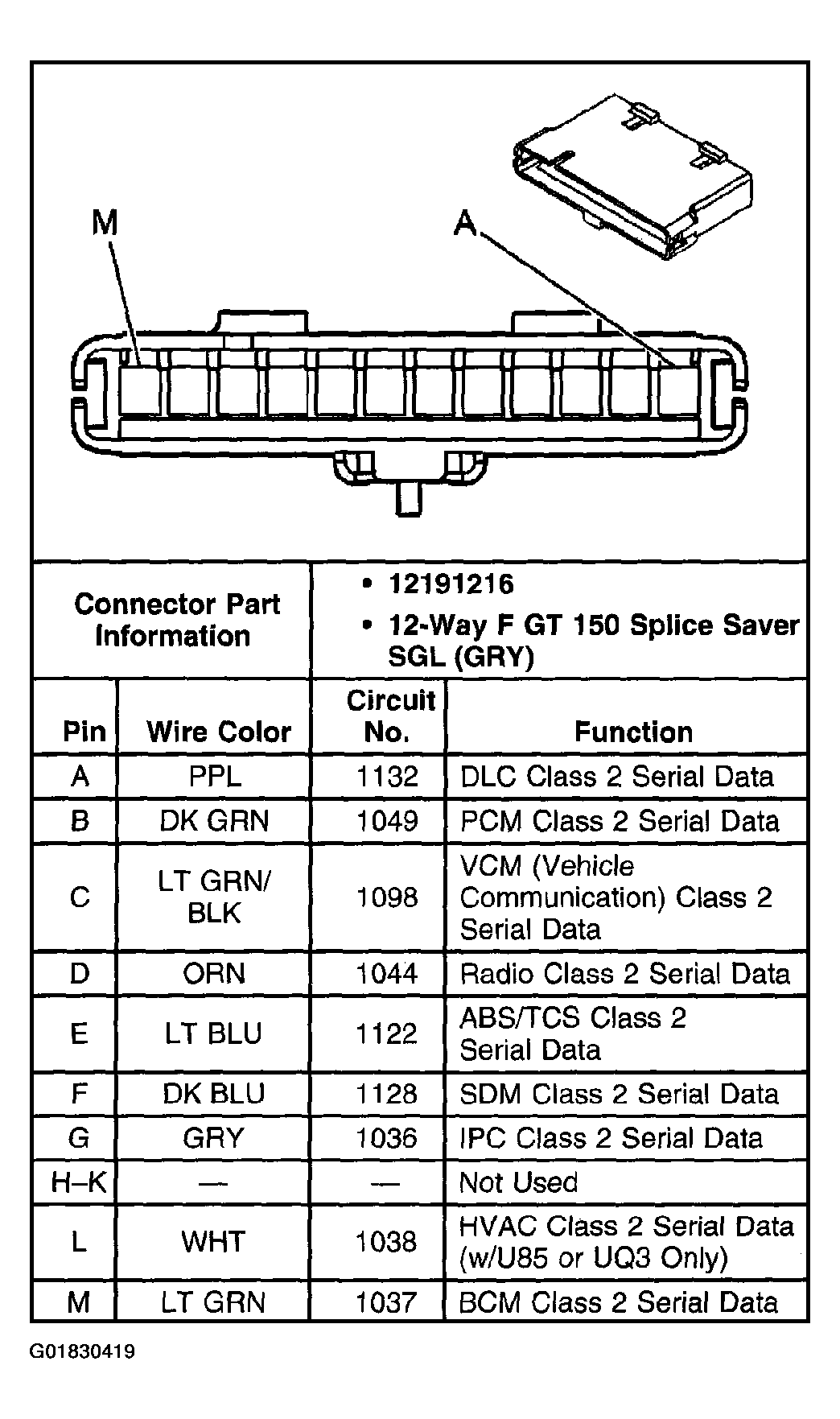

Fig 2: Splice Pack Connector End View
Courtesy of GENERAL MOTORS CORP.
