WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

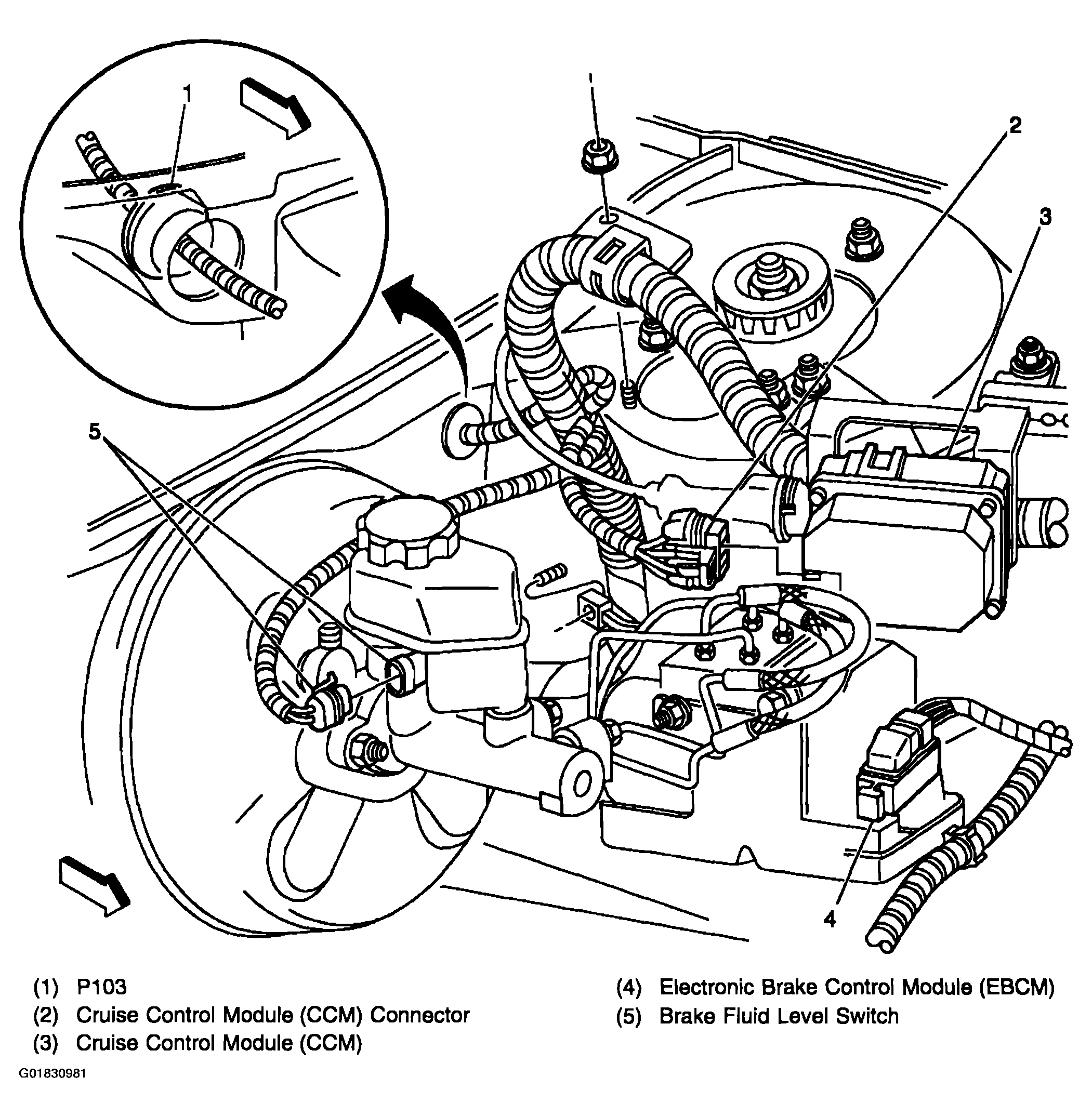

Fig 1: Upper Left Rear Of Engine Compartment Component View
Courtesy of GENERAL MOTORS CORP.

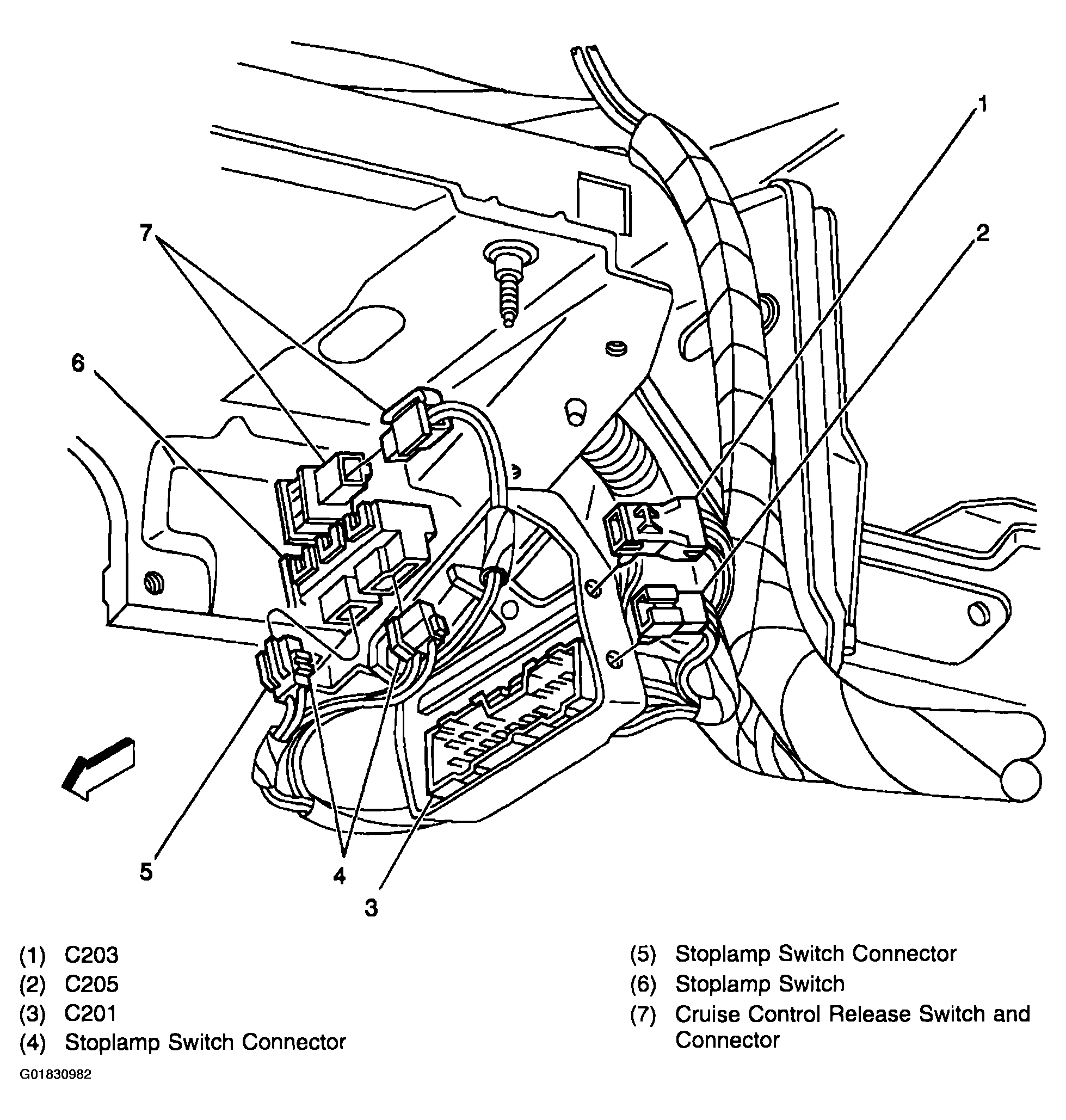

Fig 2: Right Of Steering Column Component View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Of Instrument Panel Cluster Component View
Courtesy of GENERAL MOTORS CORP.

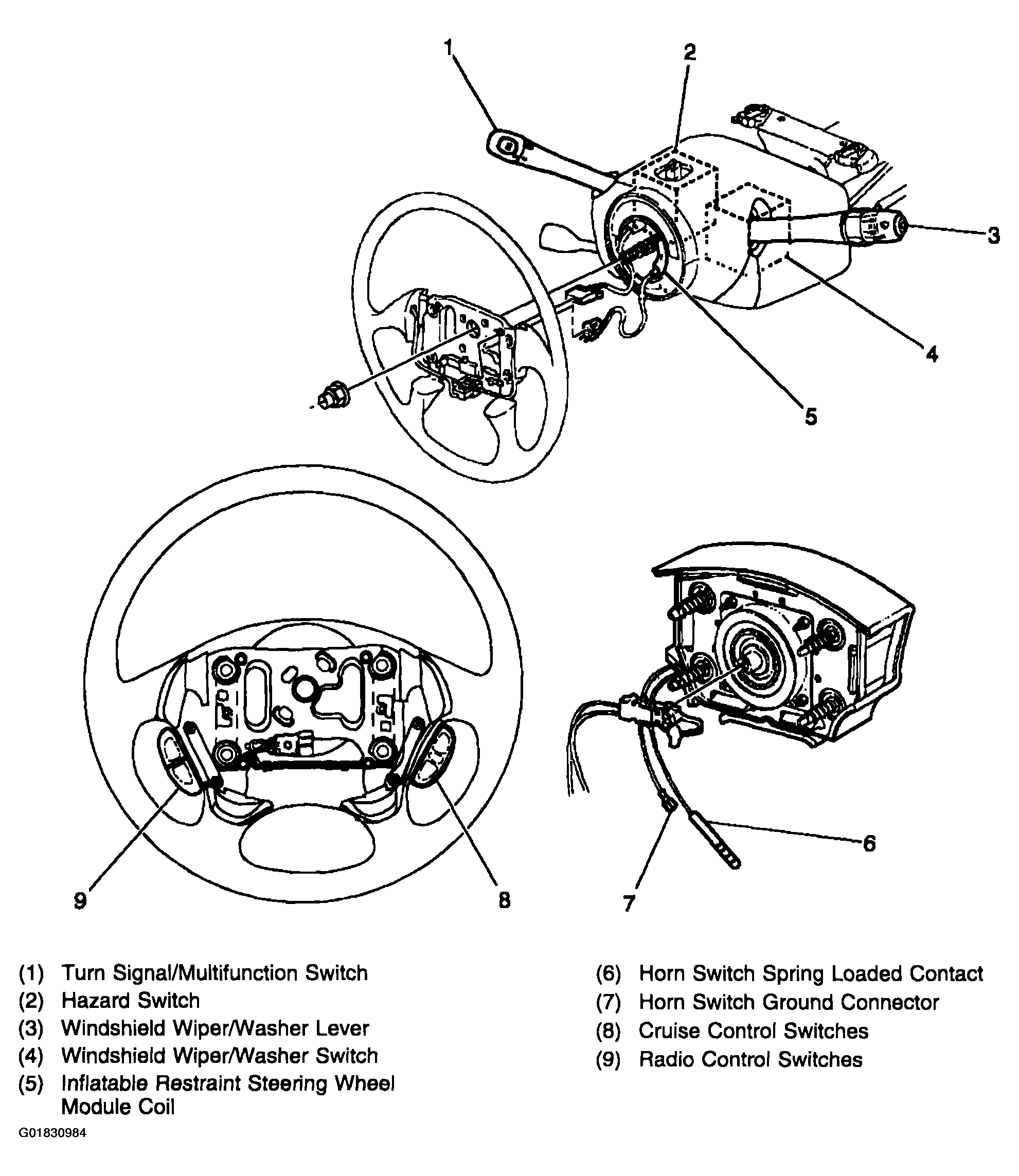

Fig 4: Left Side Of Instrument Panel Component View
