Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module on the mounting studs.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the cruise control module to the shock tower nuts.

    Tighten

    Tighten the cruise control module to the shock tower nuts to 2 N.m (18 lb in).

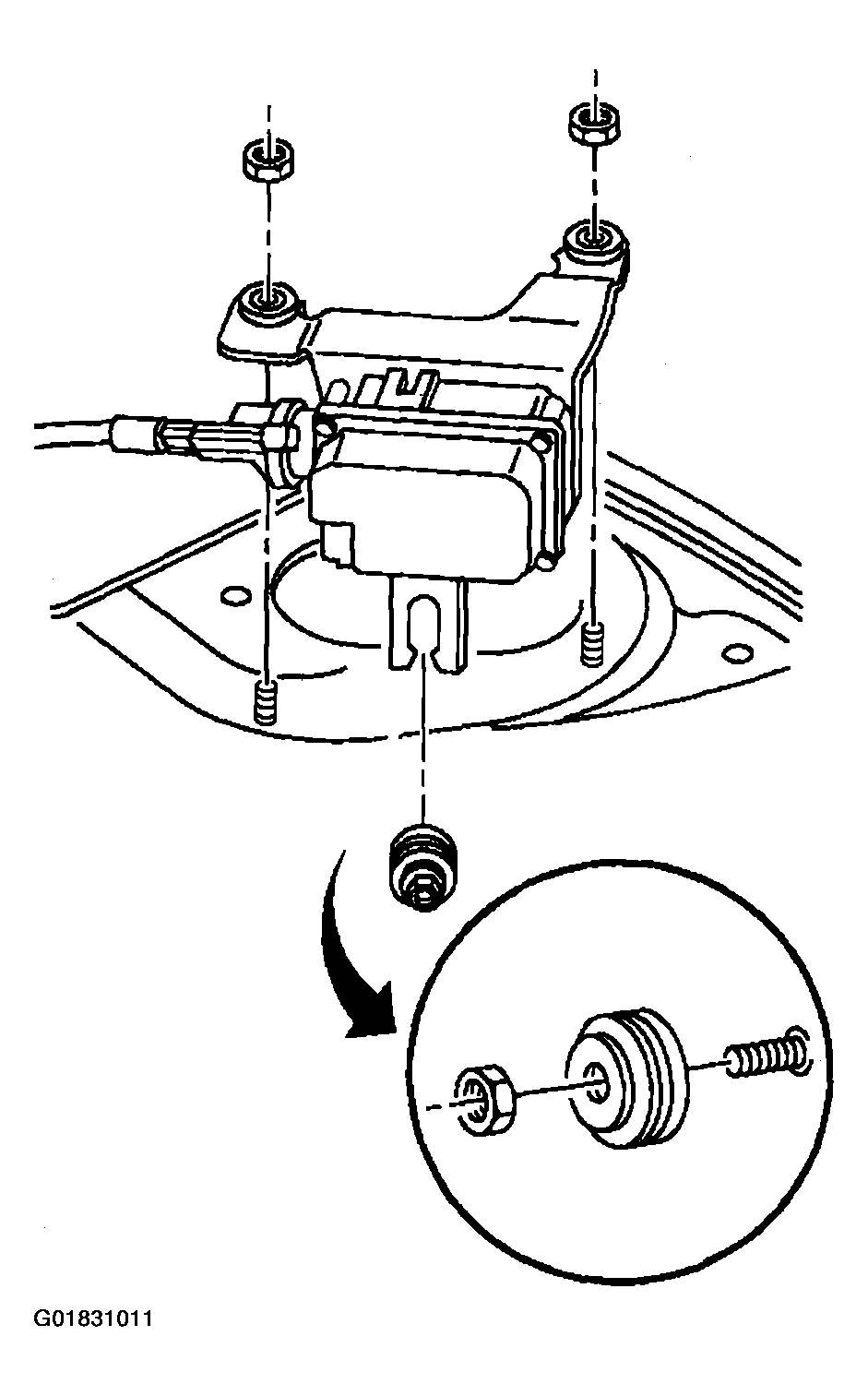

    Fig 1: Install Cruise Control Module To Shock Tower Nuts
    G01831011Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the cruise control module.
    IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.
  4. Install the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement .

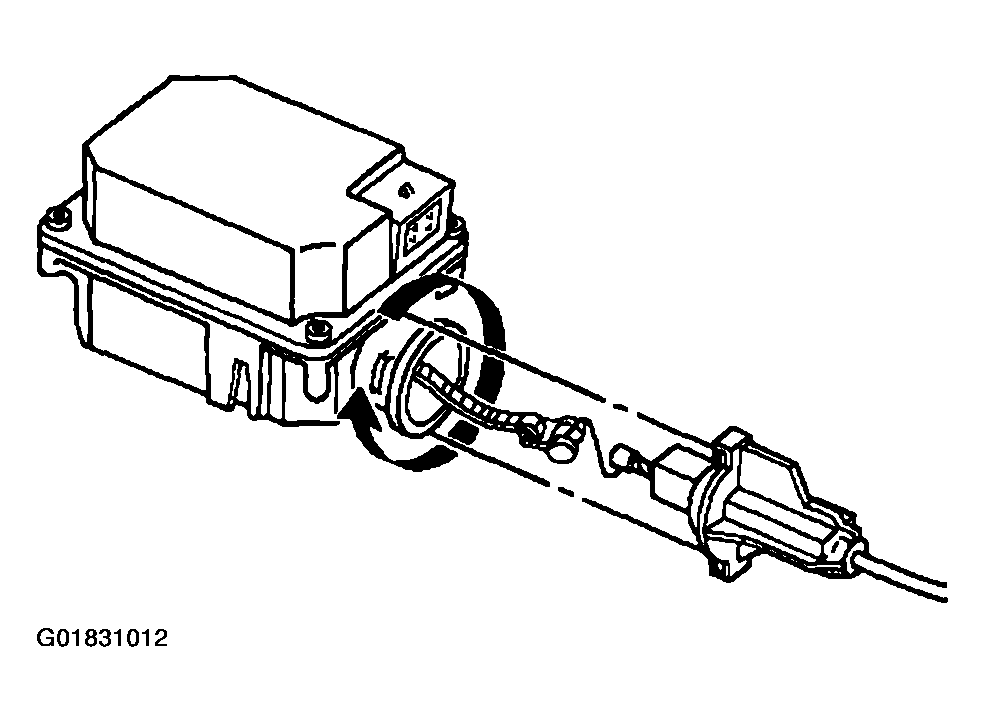

    Fig 2: Install Cruise Control Cable & Electrical Connector
    G01831012Courtesy of GENERAL MOTORS CORP.
