Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cruise control cable from the cruise control module. Refer to Cruise Control Cable Replacement .
Disconnect the electrical connector from the cruise control module.

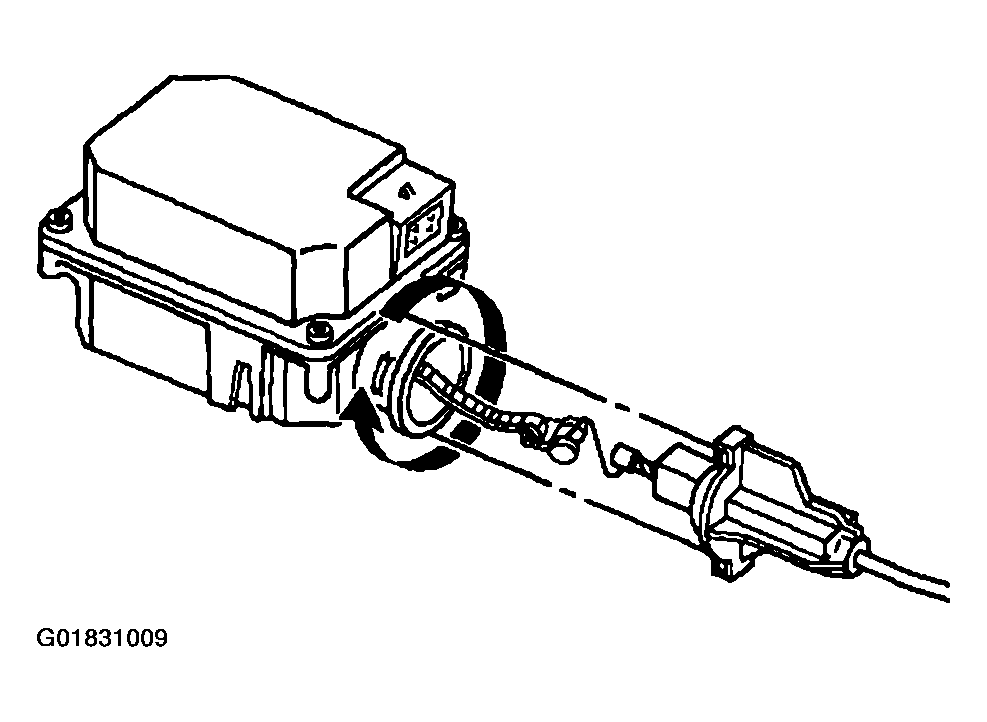

Fig 1: Remove Cruise Control Cable & Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module to the shock tower nuts.

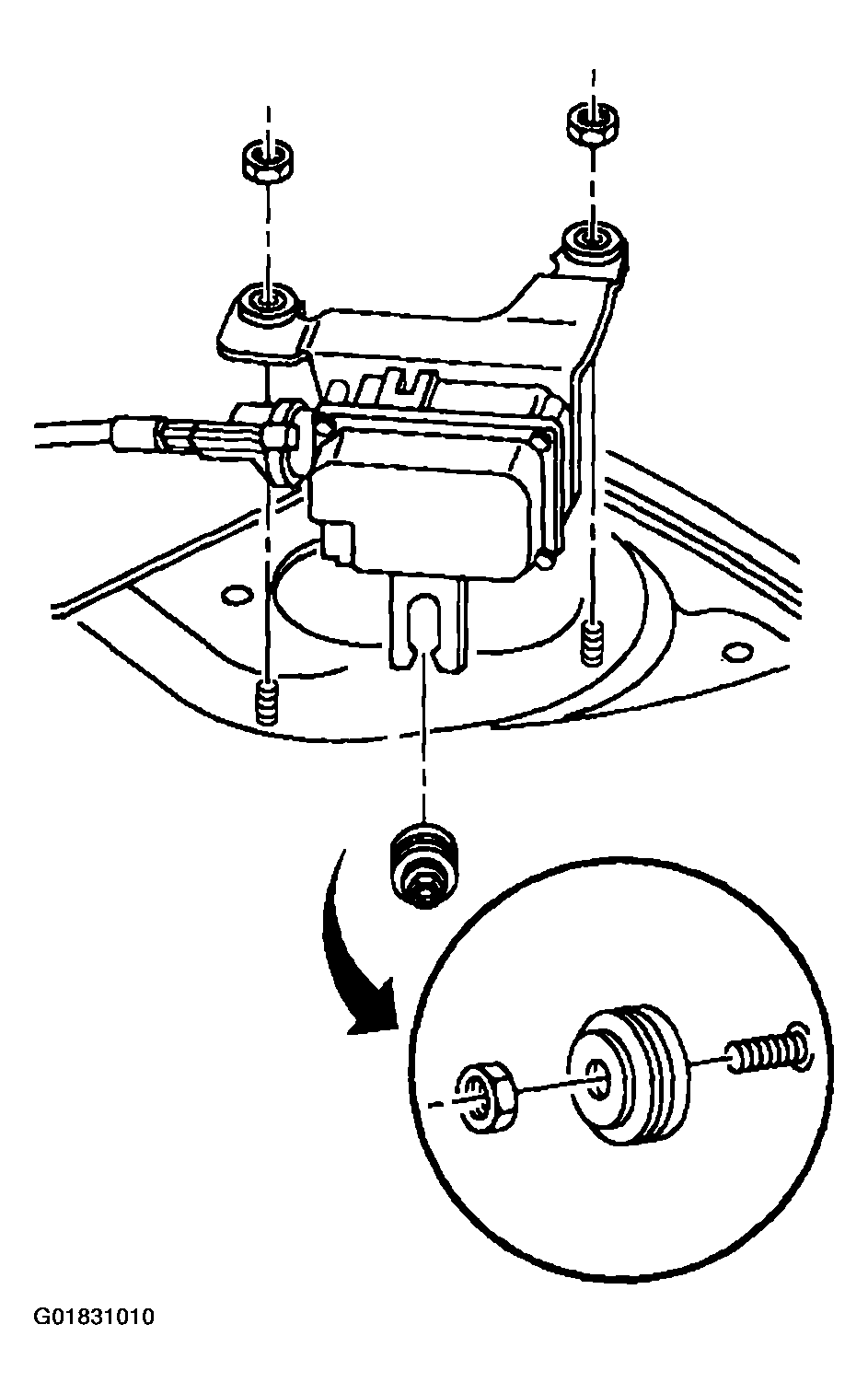

Fig 2: Remove Cruise Control Module To Shock Tower Nuts
Courtesy of GENERAL MOTORS CORP.
