Output Shaft: Installation

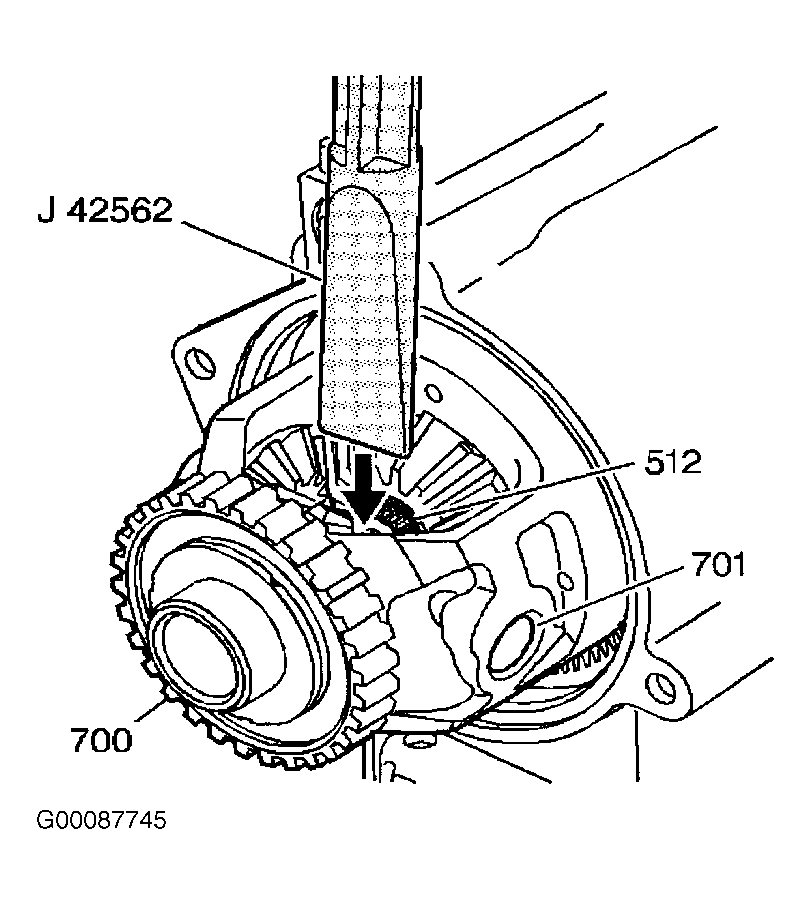

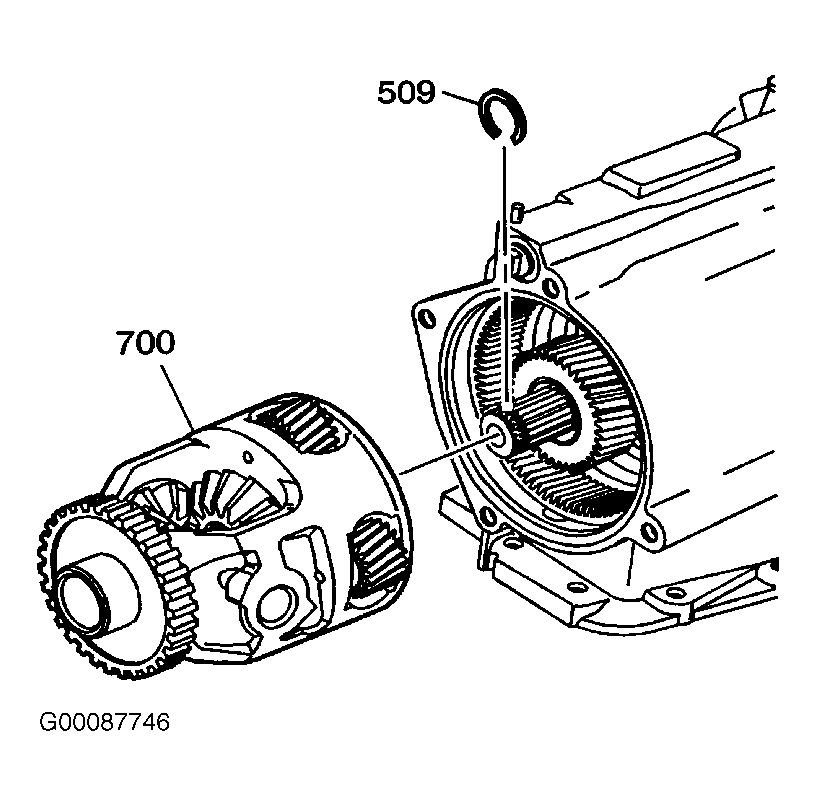

  1. Install the drive axle retainer rings (509) to the output shaft (510). See Figure and Figure .
  2. Hold the front differential carrier in place and carefully install the output shaft (510) to the transmission through the left wheel opening. Extend the output shaft through the differential side gear.
  3. Install the case extension housing. See CASE EXTENSION HOUSING  . Install the left drive axle to the transaxle. See appropriate article in DRIVE AXLES.
