Cruise Control Schematics (PCM Serial Data)

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

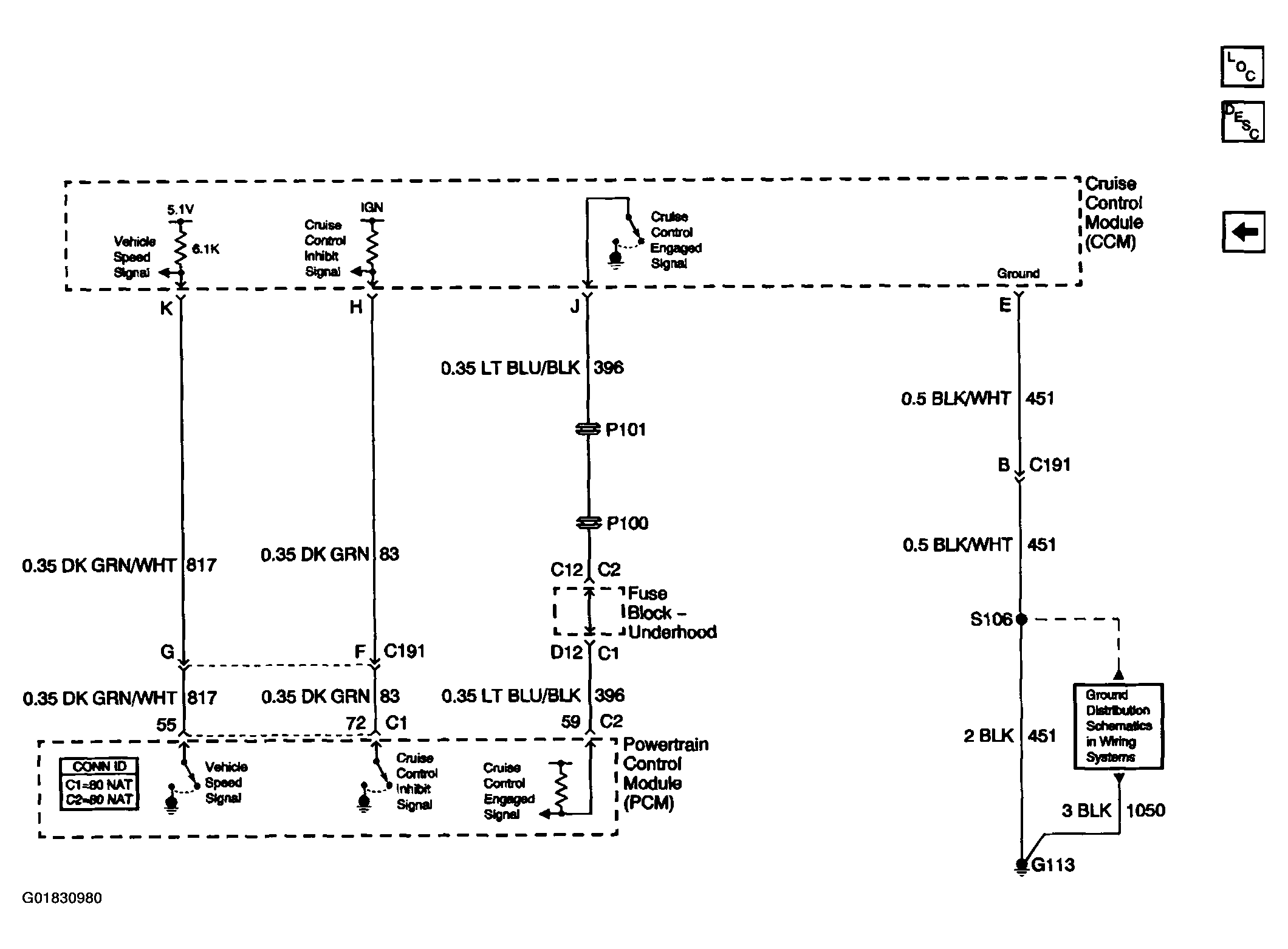

Fig 1: Cruise Control Schematic (PCM Serial Data)
G01830980Courtesy of GENERAL MOTORS CORP.
