PWR, GRD, Transfer Case Shift Control Module and Vehicle Interface Unit (VIU)

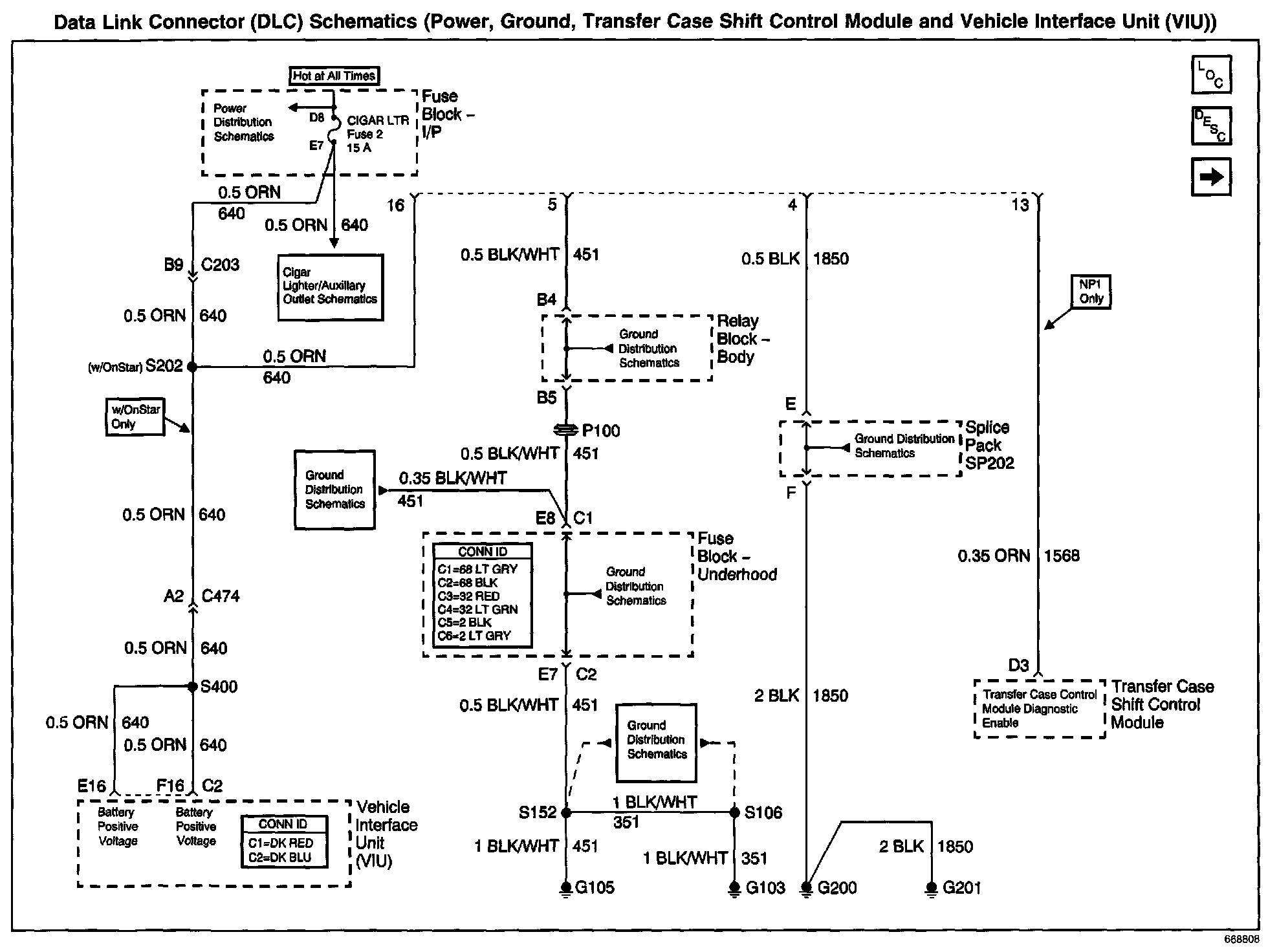

Data Link Connector (DLC) Schematics: Power, Ground, Transfer Case Shift Control Module And Vehicle Interface Unit (VIU):

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
