Transfer Case Shift CTRL Module CONN (Not Used On Selectable)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

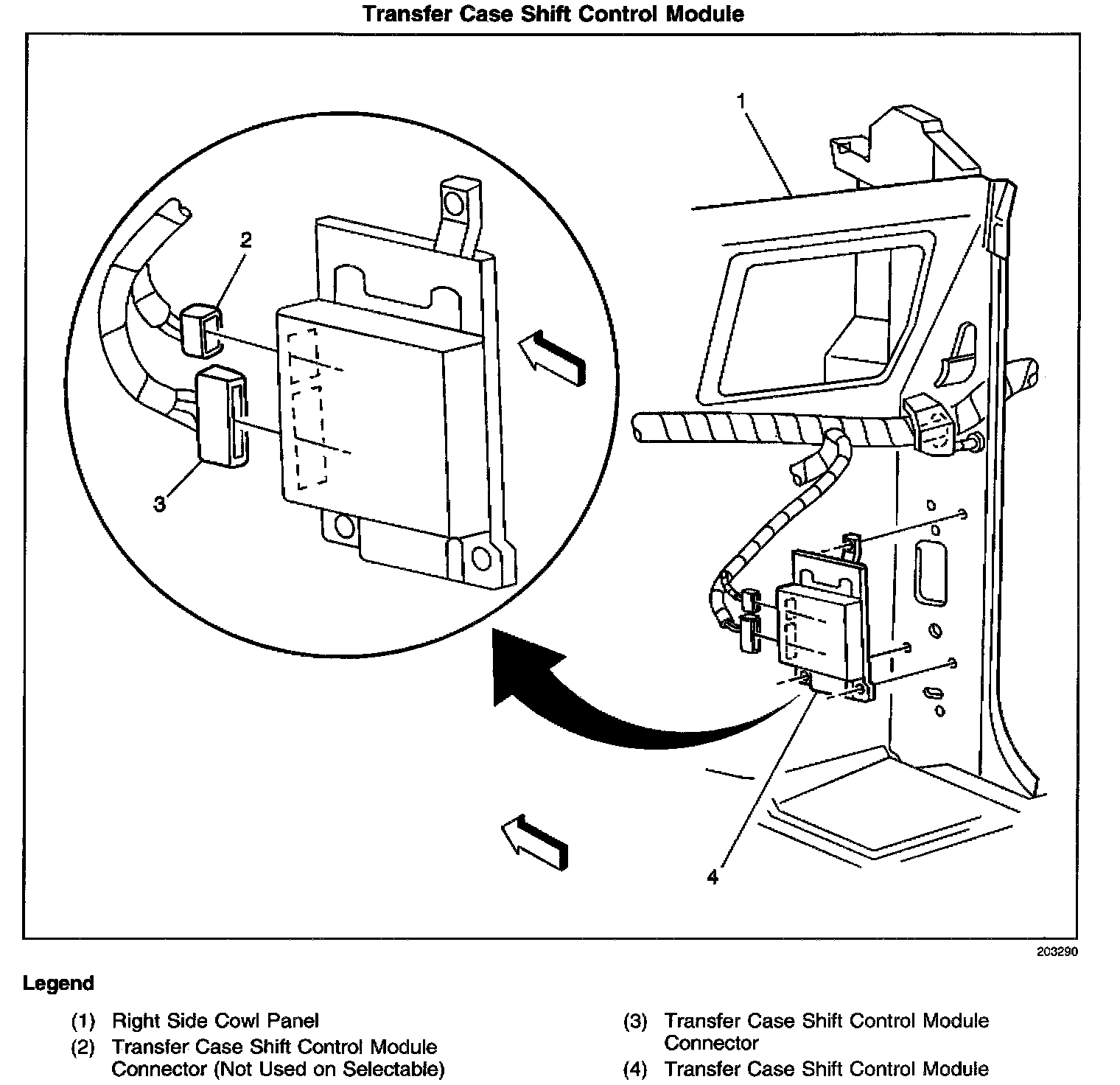

Transfer Case Shift CTRL Module CONN (Not Used On Selectable)

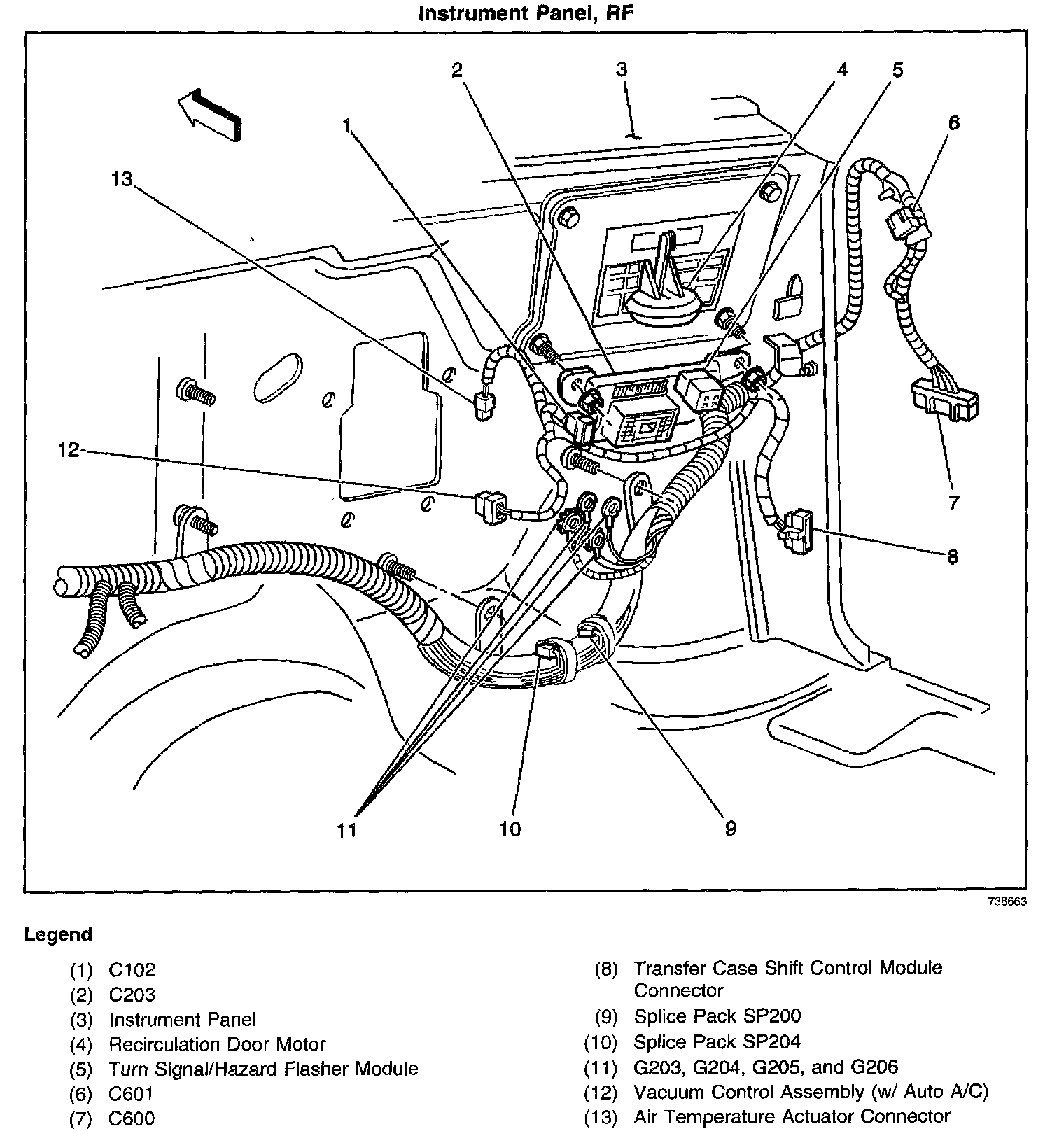

Locations View:
Locations View:
